CQB75W8 Series

Isolated DC/DC Converters - Chassis Mount 75W 9-75Vi 24Vo 3.12A Neg

Manufacturer: Cincon Electronics Co. LTD

Catalog

Isolated DC/DC Converters - Chassis Mount 75W 9-75Vi 24Vo 3.12A Neg

Catalog

Isolated DC/DC Converters - Chassis Mount 75W 9-75Vi 24Vo 3.12A Neg

Part	Package / Case	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Number of Outputs	Features	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Efficiency	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Output 1	Type	Applications	Standard Number	Mounting Type	Voltage - Isolation	Supplier Device Package	Current - Output (Max) [Max]	Current - Output (Max)
Cincon Electronics Co. LTD CQB75W8-36S28-C	Quarter Brick	75 V	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	CB CE cURus UKCA	1	Adjustable Output Remote On/Off Remote Sense	105 C	-40 °C	Active High Enable	90 %	75 W	9 V	28 V	Isolated Module	ITE (Commercial)	62368-1	Through Hole	4.2 kV	Quarter Brick	2.67 A
Cincon Electronics Co. LTD CQB75W8-36S28N-C	Quarter Brick	75 V	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	CB CE cURus UKCA	1	Adjustable Output Remote On/Off Remote Sense	105 C	-40 °C	Active Low Enable	90 %	75 W	9 V	28 V	Isolated Module	ITE (Commercial)	62368-1	Through Hole	4.2 kV	Quarter Brick	2.67 A
Cincon Electronics Co. LTD CQB75W8-36S48N	Quarter Brick	75 V	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	CB CE cURus UKCA	1	Adjustable Output Remote On/Off Remote Sense	105 C	-40 °C	Active Low Enable	90 %	75 W	9 V	48 V	Isolated Module	ITE (Commercial)	62368-1	Through Hole	4.2 kV	Quarter Brick	1.56 A
Cincon Electronics Co. LTD CQB75W8-36S24N-C	Quarter Brick	75 V	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	CB CE cURus UKCA	1	Adjustable Output Remote On/Off Remote Sense	105 C	-40 °C	Active Low Enable	90 %	75 W	9 V	24 V	Isolated Module	ITE (Commercial)	62368-1	Through Hole	4.2 kV	Quarter Brick	3.12 A
Cincon Electronics Co. LTD CQB75W8-36S15N	Quarter Brick	75 V	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	CB CE cURus UKCA	1	Adjustable Output Remote On/Off Remote Sense	105 C	-40 °C	Active Low Enable	90 %	75 W	9 V	15 V	Isolated Module	ITE (Commercial)	62368-1	Through Hole	4.2 kV	Quarter Brick		5 A
Cincon Electronics Co. LTD CQB75W8-36S48N-C	Quarter Brick	75 V	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	CB CE cURus UKCA	1	Adjustable Output Remote On/Off Remote Sense	105 C	-40 °C	Active Low Enable	90 %	75 W	9 V	48 V	Isolated Module	ITE (Commercial)	62368-1	Through Hole	4.2 kV	Quarter Brick	1.56 A
Cincon Electronics Co. LTD CQB75W8-36S24	Quarter Brick	75 V	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	CB CE cURus	1	Remote On/Off	105 C	-40 °C	Active High Enable	90 %	75 W	9 V	24 V	Isolated Module	ITE (Commercial) Railway	50155 62368-1	Through Hole	3000 V	Quarter Brick	3.12 A
Cincon Electronics Co. LTD CQB75W8-36S12	Quarter Brick	75 V	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	CB CE cURus	1	Remote On/Off	105 C	-40 °C	Active High Enable	90 %	75 W	9 V	12 V	Isolated Module	ITE (Commercial) Railway	50155 62368-1	Through Hole	3000 V	Quarter Brick	6.25 A

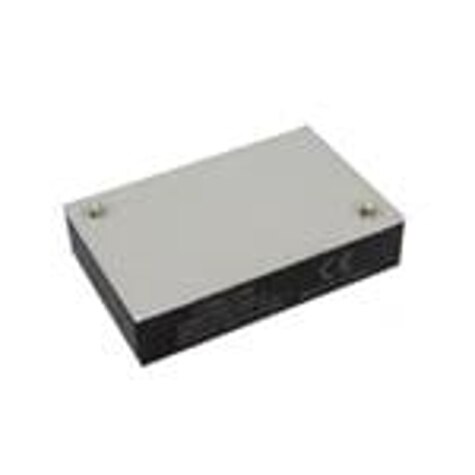

Cincon Electronics Co. LTD CQB75W8-36S15	Quarter Brick	75 V	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	CB CE cURus	1	Remote On/Off	105 C	-40 °C	Active High Enable	90 %	75 W	9 V	15 V	Isolated Module	ITE (Commercial) Railway	50155 62368-1	Through Hole	3000 V	Quarter Brick		5 A
Cincon Electronics Co. LTD CQB75W8-36S24N	Quarter Brick	75 V	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	CB CE cURus UKCA	1	Adjustable Output Remote On/Off Remote Sense	105 C	-40 °C	Active Low Enable	90 %	75 W	9 V	24 V	Isolated Module	ITE (Commercial)	62368-1	Through Hole	4.2 kV	Quarter Brick	3.12 A
