9077 Series
Manufacturer: Belden Inc.
Beta
⌘K

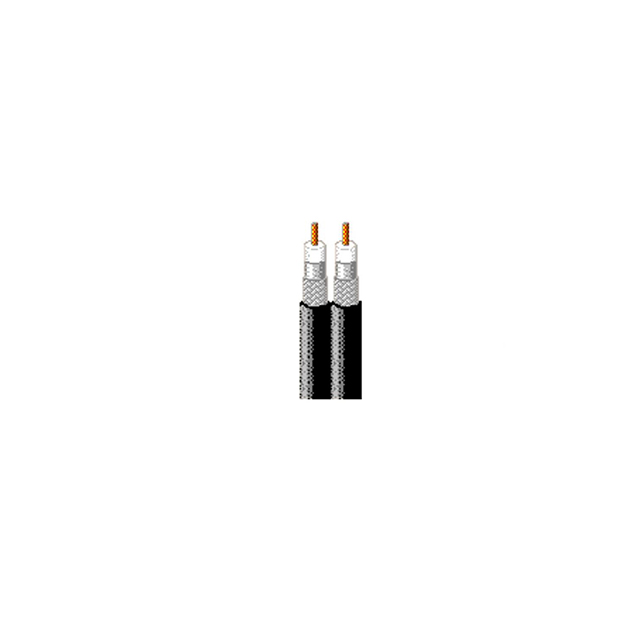

COAX DUAL RG6 18AWG
| Part | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Material | Dielectric Material | Shield Material | VoP, Velocity of Propagation | Operating Temperature [Max] | Operating Temperature [Min] | Shield Coverage [custom] | Length [x] | Length [x] | Conductor Strand | Wire Gauge [custom] | Wire Gauge | Shield Type | Cable Group | Jacket Color | Usage | Impedance | Cable Type | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 0.18 in | 4.57 mm | Copper Coated Steel | Foam Polyethylene (FPE) | Aluminum | 83 | 80 °C | -40 C | 60 % 100 % | 304.8 m | 1000 ft | Solid (2) | 2 | 18 AWG | Braid Foil | RG-6 Dual | Black | CATV | 75 Ohms | Coaxial | Poly-Vinyl Chloride (PVC) |
