SRR1260A Series

Catalog

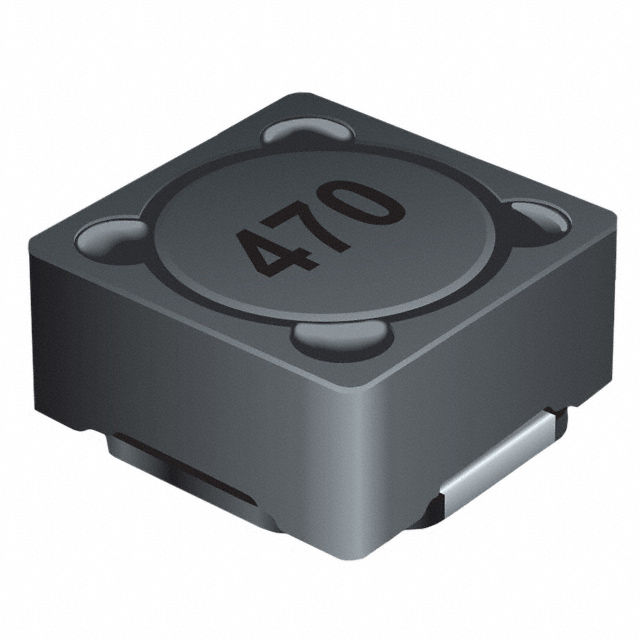

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SRR1260A SERIES, 33 H, 20%, SHIELDED, 0.06 OHM, 3 A ROHS COMPLIANT: YES

Part	Q @ Freq	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency - Self Resonant	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Ratings	Current Rating (Amps)	Inductance	Tolerance	Mounting Type	Current - Saturation (Isat)	Material - Core	Inductance Frequency - Test	Package / Case	Type	DC Resistance (DCR)	DC Resistance (DCR) [Max]	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. SRR1260A-330M	2.52 MHz 27	6.5 mm	0.256 in	9.97 MHz	Shielded	125 °C	-40 C	12.5 mm	0.492 "	12.5 mm	0.492 "	AEC-Q200	3 A	33 µH	20 %	Surface Mount	2.8 A	Ferrite	1 kHz	Nonstandard	Drum Core Wirewound
Bourns Inc. SRR1260A-390M	22	6.5 mm	0.256 in	10.4 MHz	Shielded	125 °C	-40 C	12.5 mm	0.492 "	12.5 mm	0.492 "	AEC-Q200	2.8 A	39 µH	20 %	Surface Mount	2.7 A	Ferrite	1 kHz	Nonstandard	Drum Core Wirewound	70 mOhm
Bourns Inc. SRR1260A-220M		6.5 mm	0.256 in	13.4 MHz	Shielded	125 °C	-40 C	12.5 mm	0.492 "	12.5 mm	0.492 "	AEC-Q200	4 A	22 µH	20 %	Surface Mount	3.7 A	Ferrite	1 kHz	Nonstandard	Drum Core Wirewound		43 mOhm	2.52 MHz	29
Bourns Inc. SRR1260A-120M	2.52 MHz 27	6.5 mm	0.256 in	19.4 MHz	Shielded	125 °C	-40 C	12.5 mm	0.492 "	12.5 mm	0.492 "	AEC-Q200	5.2 A	12 µH	20 %	Surface Mount	5 A	Ferrite	1 kHz	Nonstandard	Drum Core Wirewound		23 mOhm
Bourns Inc. SRR1260A-271K		6.5 mm	0.256 in	3.6 MHz	Shielded	125 °C	-40 C	12.5 mm	0.492 "	12.5 mm	0.492 "	AEC-Q200	1.3 A	270 µH	10 %	Surface Mount	1.2 A	Ferrite	1 kHz	Nonstandard	Drum Core Wirewound	450 mOhm		796 kHz	20
Bourns Inc. SRR1260A-101M		6.5 mm	0.256 in	6.07 MHz	Shielded	125 °C	-40 C	12.5 mm	0.492 "	12.5 mm	0.492 "	AEC-Q200	1.7 A	100 µH	20 %	Surface Mount	1.7 A	Ferrite	1 kHz	Nonstandard	Drum Core Wirewound		180 mOhm		26	796 kHz
Bourns Inc. SRR1260A-1R5Y	7.96 MHz 24	6.5 mm	0.256 in	86 MHz	Shielded	125 °C	-40 C	12.5 mm	0.492 "	12.5 mm	0.492 "	AEC-Q200	8.8 A	1.5 µH	30 %	Surface Mount	9 A	Ferrite	100 kHz	Nonstandard	Drum Core Wirewound		9.5 mOhm
Bourns Inc. SRR1260A-221K	22 796 kHz	6.5 mm	0.256 in	4.2 MHz	Shielded	125 °C	-40 C	12.5 mm	0.492 "	12.5 mm	0.492 "	AEC-Q200	1.38 A	220 µH	10 %	Surface Mount	1.3 A	Ferrite	1 kHz	Nonstandard	Drum Core Wirewound		380 mOhm
Bourns Inc. SRR1260A-8R2Y	7.96 MHz 18	6.5 mm	0.256 in	24 MHz	Shielded	125 °C	-40 C	12.5 mm	0.492 "	12.5 mm	0.492 "	AEC-Q200	5.7 A	8.2 µH	30 %	Surface Mount	5.8 A	Ferrite	100 kHz	Nonstandard	Drum Core Wirewound		19.5 mOhm
Bourns Inc. SRR1260A-560M		6.5 mm	0.256 in	7.92 MHz	Shielded	125 °C	-40 C	12.5 mm	0.492 "	12.5 mm	0.492 "	AEC-Q200	2.3 A	56 µH	20 %	Surface Mount	2.2 A	Ferrite	1 kHz	Nonstandard	Drum Core Wirewound	100 mOhm			24	2.52 MHz
