2342082 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLOCK HDR 16POS VERT 5MM

Part	Number of Positions	Current - UL	Pitch [x]	Pitch [x]	Material Flammability Rating	Contact Material	Color	Housing Material	Insulation Height	Insulation Height	Header Orientation	Features	Mounting Type	Termination Style	Number of Levels	Voltage - UL	Type	Contact Tail Length	Contact Tail Length	Positions Per Level	Contact Mating Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions

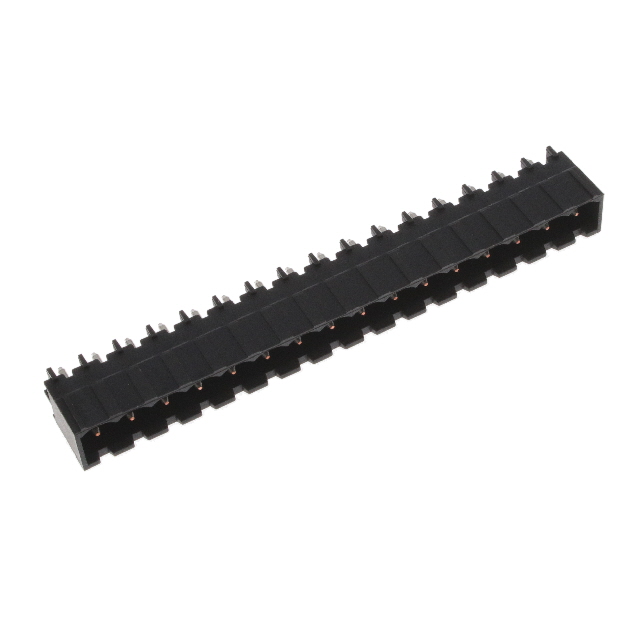

TE Connectivity Raychem Cable Protection 1-2342082-6	16	11 A	5 mm	0.197 in	UL94 V-0	Copper Alloy	Black	Polyamide (PA) Nylon	0.472 in	12 mm	Vertical	High Temp Housing	Through Hole	Solder	1	300 V	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	16	Tin	-40 °C	105 ░C
TE Connectivity Raychem Cable Protection 1-2342082-5		11 A	5 mm	0.197 in	UL94 V-0	Copper Alloy	Black	Polyamide (PA) Nylon	0.472 in	12 mm	Vertical	High Temp Housing	Through Hole	Solder	1	300 V	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	15	Tin	-40 °C	105 ░C	15

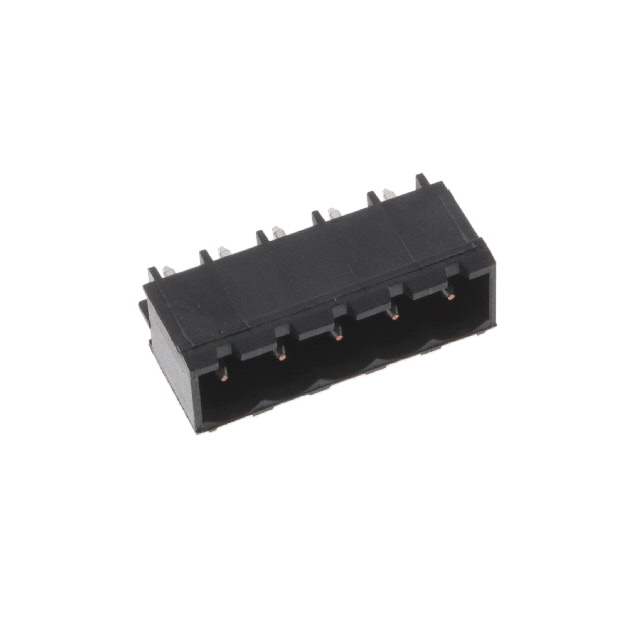

TE Connectivity Raychem Cable Protection 2342082-5		11 A	5 mm	0.197 in	UL94 V-0	Copper Alloy	Black	Polyamide (PA) Nylon	0.472 in	12 mm	Vertical	High Temp Housing	Through Hole	Solder	1	300 V	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	5	Tin	-40 °C	105 ░C
TE Connectivity Raychem Cable Protection 1-2342082-0		11 A	5 mm	0.197 in	UL94 V-0	Copper Alloy	Black	Polyamide (PA) Nylon	0.472 in	12 mm	Vertical	High Temp Housing	Through Hole	Solder	1	300 V	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	10	Tin	-40 °C	105 ░C	10

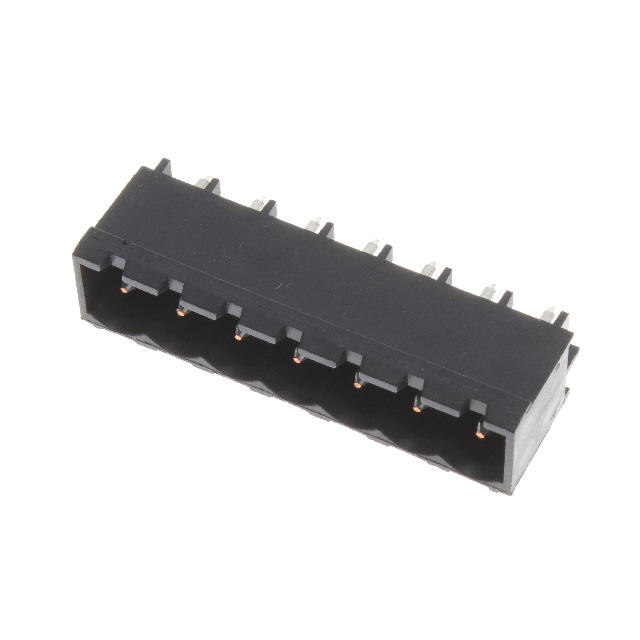

TE Connectivity Raychem Cable Protection 2342082-7		11 A	5 mm	0.197 in	UL94 V-0	Copper Alloy	Black	Polyamide (PA) Nylon	0.472 in	12 mm	Vertical	High Temp Housing	Through Hole	Solder	1	300 V	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	7	Tin	-40 °C	105 ░C	7
TE Connectivity Raychem Cable Protection 1-2342082-1		11 A	5 mm	0.197 in	UL94 V-0	Copper Alloy	Black	Polyamide (PA) Nylon	0.472 in	12 mm	Vertical	High Temp Housing	Through Hole	Solder	1	300 V	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	11	Tin	-40 °C	105 ░C	11
TE Connectivity Raychem Cable Protection 2-2342082-0		11 A	5 mm	0.197 in	UL94 V-0	Copper Alloy	Black	Polyamide (PA) Nylon	0.472 in	12 mm	Vertical	High Temp Housing	Through Hole	Solder	1	300 V	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	20	Tin	-40 °C	105 ░C	20

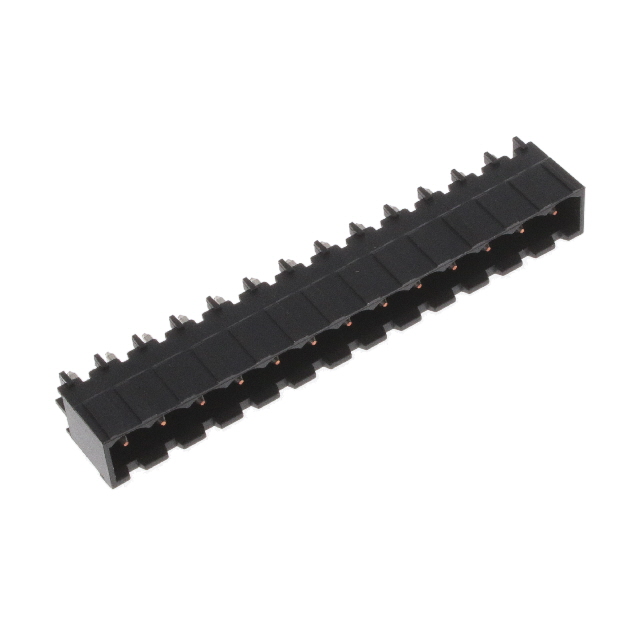

TE Connectivity Raychem Cable Protection 1-2342082-3		11 A	5 mm	0.197 in	UL94 V-0	Copper Alloy	Black	Polyamide (PA) Nylon	0.472 in	12 mm	Vertical	High Temp Housing	Through Hole	Solder	1	300 V	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	13	Tin	-40 °C	105 ░C	13

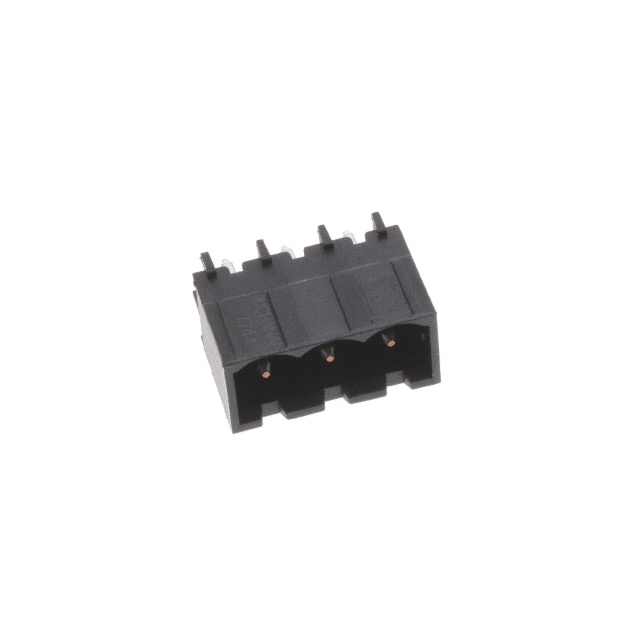

TE Connectivity Raychem Cable Protection 2342082-3		11 A	5 mm	0.197 in	UL94 V-0	Copper Alloy	Black	Polyamide (PA) Nylon	0.472 in	12 mm	Vertical	High Temp Housing	Through Hole	Solder	1	300 V	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	3	Tin	-40 °C	105 ░C
TE Connectivity Raychem Cable Protection 1-2342082-9		11 A	5 mm	0.197 in	UL94 V-0	Copper Alloy	Black	Polyamide (PA) Nylon	0.472 in	12 mm	Vertical	High Temp Housing	Through Hole	Solder	1	300 V	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	19	Tin	-40 °C	105 ░C	19
