VSKT500 Series

Catalog

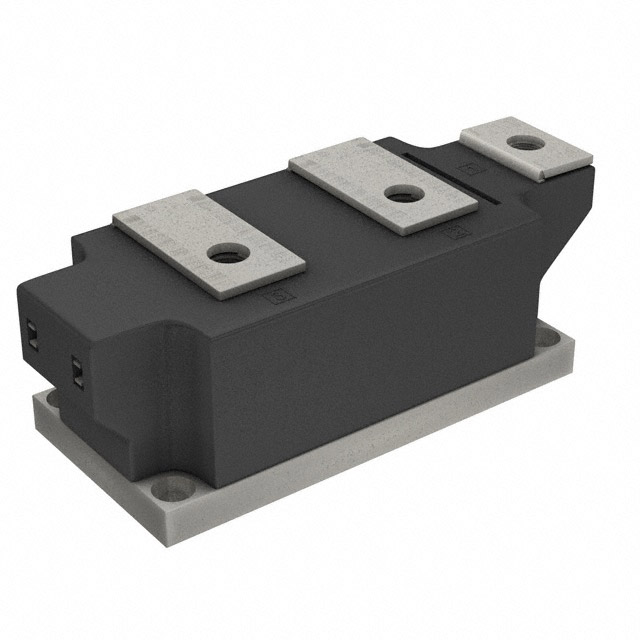

MODULE THY 500A SMAGN-A-PAK

Part	Current - Hold (Ih) (Max) [Max]	Voltage - Off State	Current - On State (It (AV)) (Max) [Max]	Structure	Current - Gate Trigger (Igt) (Max) [Max]	Number of SCRs, Diodes	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - On State (It (RMS)) (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case
Vishay General Semiconductor - Diodes Division VS-VSKT500-18PBF	500 mA	1.8 kV	500 A	Series Connection - All SCRs	200 mA	2 SCRs	17800 A 18700 A	785 A	-40 °C	130 °C	Chassis Mount	SUPER MAGN-A-PAK
Vishay General Semiconductor - Diodes Division VSKT500-12	500 mA	1.2 kV	500 A	Series Connection - All SCRs	200 mA	2 SCRs	17800 A 18700 A	785 A			Chassis Mount	SUPER MAGN-A-PAK
