EKB00 Series
Manufacturer: TE Intercontec
Beta
⌘K
CONN RCPT HSG MALE 12POS INLINE
| Part | Type | Orientation | Shell Material | Mounting Type | Connector Type | Contact Shape | Shielding | Note | Housing Color | Fastening Type | Number of Positions | Includes | Material Flammability Rating | Features | Ingress Protection | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

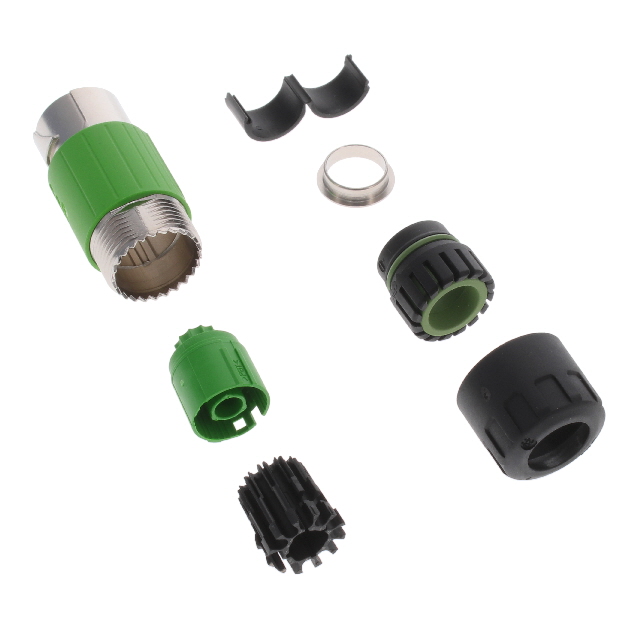

 TE Intercontec | For Male Pins | Keyed | Zinc Die Cast | Free Hanging (In-Line) | Receptacle Housing | Circular | Shielded | Contacts Not Included | Green | Bayonet Lock | 12 | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | UL94 V-0 | Backshell Cable Clamp | IP66 IP67 | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | -20 ░C | 130 °C | ||
TE Intercontec | For Male Pins | Keyed | Zinc Die Cast | Free Hanging (In-Line) Panel Mount | Receptacle Housing | Circular | Shielded | Contacts Not Included | Silver | Bayonet Lock | 12 | 1 Backshell 1 Cable Clamp 1 Connector 1 O-Ring | UL94 V-0 | Backshell Cable Clamp | IP66 IP67 | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | -20 ░C | 130 °C | Nickel | Flange |
TE Intercontec | For Male Pins | Keyed | Zinc Die Cast | Free Hanging (In-Line) | Receptacle Housing | Circular | Shielded | Contacts Not Included | Green | Bayonet Lock | 12 | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | UL94 V-0 | Backshell Cable Clamp | IP66 IP67 | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | -20 ░C | 130 °C |
