24 Series
Manufacturer: Murata Electronics
Beta
⌘K

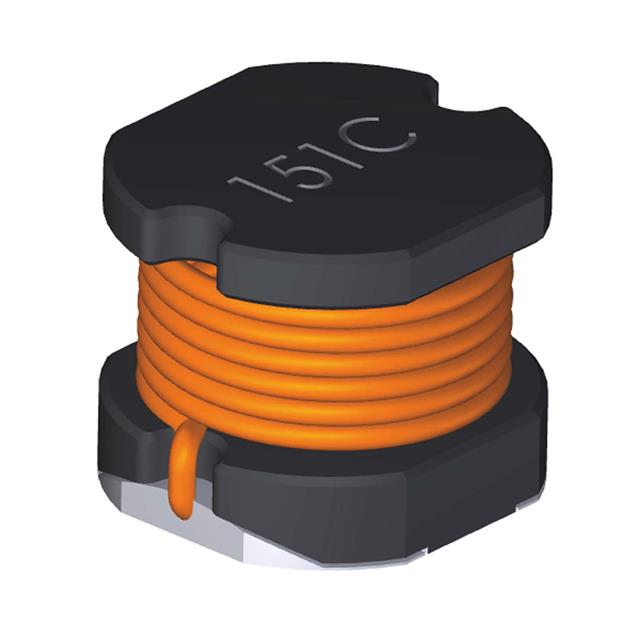

POWER INDUCTOR (SMD), 3.3 ΜH, 2.4 A, UNSHIELDED, 2.4 A, 2400 SERIES
| Part | Frequency - Self Resonant | Type | DC Resistance (DCR) [Max] | Inductance | Package / Case | Inductance Frequency - Test | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current Rating (Amps) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 53 MHz | Wirewound | 42 mOhm | 3.3 µH | Nonstandard | 1 kHz | 4.5 mm | 0.177 in | 2.4 A | Surface Mount | 85 °C | -40 C | Unshielded | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm | |
 Murata Electronics | 57 MHz | Wirewound | 2.7 µH | Nonstandard | 1 kHz | 4.5 mm | 0.177 in | 2.6 A | Surface Mount | 85 °C | -40 C | Unshielded | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm | 39 mOhm | |
Murata Electronics | 22 MHz | Wirewound | 120 mOhm | 15 µH | Nonstandard | 1 kHz | 4.5 mm | 0.177 in | 1.3 A | Surface Mount | 85 °C | -40 C | Unshielded | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm | |
Murata Electronics | 5.13 MHz | Wirewound | 1.1 Ohm | 150 µH | Nonstandard | 1 kHz | 4.5 mm | 0.177 in | 400 mA | Surface Mount | 85 °C | -40 C | Unshielded | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm | |
Murata Electronics | 13.1 MHz | Wirewound | 230 mOhm | 33 µH | Nonstandard | 1 kHz | 4.5 mm | 0.177 in | 880 mA | Surface Mount | 85 °C | -40 C | Unshielded | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm | |
Murata Electronics | 20 MHz | Wirewound | 18 µH | Nonstandard | 1 kHz | 4.5 mm | 0.177 in | 1.26 A | Surface Mount | 85 °C | -40 C | Unshielded | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm | 150 mOhm | |
Murata Electronics | 16.5 MHz | Wirewound | 180 mOhm | 22 µH | Nonstandard | 1 kHz | 4.5 mm | 0.177 in | 1.11 A | Surface Mount | 85 °C | -40 C | Unshielded | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm | |
Murata Electronics | 9.38 MHz | Wirewound | 460 mOhm | 68 µH | Nonstandard | 1 kHz | 4.5 mm | 0.177 in | 0.61 A | Surface Mount | 85 °C | -40 C | Unshielded | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm | |
Murata Electronics | 4.24 MHz | Wirewound | 1.57 Ohm | 220 µH | Nonstandard | 1 kHz | 4.5 mm | 0.177 in | 350 mA | Surface Mount | 85 °C | -40 C | Unshielded | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm | |
Murata Electronics | 45 MHz | Wirewound | 50 mOhm | 4.7 ÁH | Nonstandard | 1 kHz | 4.5 mm | 0.177 in | 2.1 A | Surface Mount | 85 °C | -40 C | Unshielded | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm |
