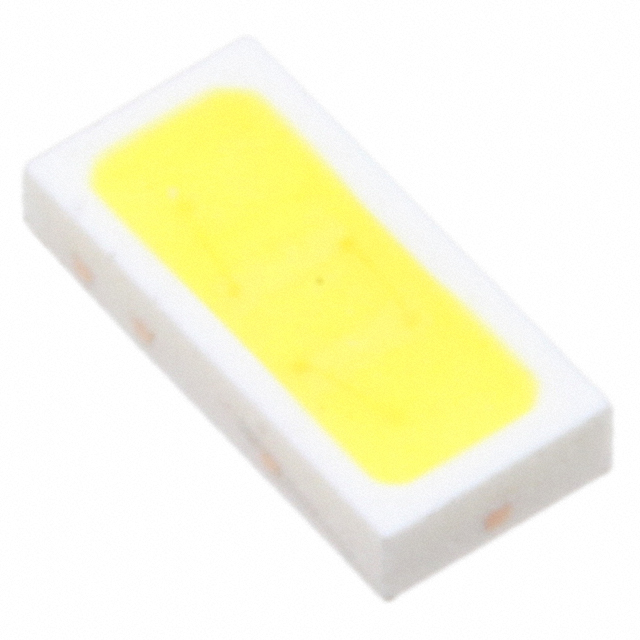

MP-3014 Series

Catalog

LED MP3014 COOL WHITE 5000K 3014

Part	Package / Case	Thermal Resistance of Package	Flux @ 25°C, Current - Test	Supplier Device Package	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	CRI (Color Rendering Index)	Color	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Viewing Angle	Lumens/Watt @ Current - Test	Mounting Type	Current - Test	CCT (K)	Current - Max [Max]
Luminus Devices Inc. MP-3014-2100-50-70	1206 (3014 Metric) 1206 (3216 Metric)	23 °C/W	62 lm	3014	0.055 in	1.4 mm	3 mm	0.118 "	70	Cool White	6.3 V	0.52 mm	0.02 in	110 °	123 lm/W	Surface Mount	80 mA	5000 K	120 mA
Luminus Devices Inc. MP-3014-1100-22-80	1206 (3014 Metric) 1206 (3216 Metric)	12 °C/W	22 lm	3014	0.055 in	1.4 mm	3 mm	0.118 "	80	Warm White	2.85 V	0.52 mm	0.02 in	110 °	129 lm/W	Surface Mount	60 mA	2200 K	150 mA
Luminus Devices Inc. MP-3014-1100-65-80	1206 (3014 Metric) 1206 (3216 Metric)	12 °C/W	32 lm	3014	0.055 in	1.4 mm	3 mm	0.118 "	80	Cool White	2.85 V	0.52 mm	0.02 in	110 °	187 lm/W	Surface Mount	60 mA	6500 K	150 mA
Luminus Devices Inc. MP-3014-1100-27-80	1206 (3014 Metric) 1206 (3216 Metric)	12 °C/W	28 lm	3014	0.055 in	1.4 mm	3 mm	0.118 "	80	Warm White	2.85 V	0.52 mm	0.02 in	110 °	164 lm/W	Surface Mount	60 mA	2700 K	150 mA
Luminus Devices Inc. MP-3014-2100-30-90	1206 (3014 Metric) 1206 (3216 Metric)	23 °C/W	54 lm	3014	0.055 in	1.4 mm	3 mm	0.118 "	90	Warm White	6.3 V	0.52 mm	0.02 in	110 °	107 lm/W	Surface Mount	80 mA	3000 K	120 mA
Luminus Devices Inc. MP-3014-1100-35-80	1206 (3014 Metric) 1206 (3216 Metric)	12 °C/W	29 lm	3014	0.055 in	1.4 mm	3 mm	0.118 "	80	Warm White	2.85 V	0.52 mm	0.02 in	110 °	170 lm/W	Surface Mount	60 mA	3500 K	150 mA
Luminus Devices Inc. MP-3014-1100-65-70	1206 (3014 Metric) 1206 (3216 Metric)	12 °C/W	34 lm	3014	0.055 in	1.4 mm	3 mm	0.118 "	70	Cool White	2.85 V	0.52 mm	0.02 in	110 °	199 lm/W	Surface Mount	60 mA	6500 K	150 mA
Luminus Devices Inc. MP-3014-2100-57-80	1206 (3014 Metric) 1206 (3216 Metric)	23 °C/W	60 lm	3014	0.055 in	1.4 mm	3 mm	0.118 "	80	Cool White	6.3 V	0.52 mm	0.02 in	110 °	119 lm/W	Surface Mount	80 mA	5700 K	120 mA
Luminus Devices Inc. MP-3014-1100-30-80	1206 (3014 Metric) 1206 (3216 Metric)	12 °C/W	29 lm	3014	0.055 in	1.4 mm	3 mm	0.118 "	80	Warm White	2.85 V	0.52 mm	0.02 in	110 °	170 lm/W	Surface Mount	60 mA	3000 K	150 mA
