E2287 Series

Catalog

DISPLAY 2.87" SPECTRA R1.2

Part	Dot Pitch [y]	Dot Pitch [x]	Graphics Color	Viewing Area [x]	Viewing Area [y]	Diagonal Screen Size	Diagonal Screen Size	Dot Pixels [y]	Dot Pixels [x]	Display Type	Interface	Background Color	Display Mode
Pervasive Displays E2287FS091	0.23 mm	0.23 mm	Black Red White	66.9 mm	29.06 mm	2.9 in	73.66 mm	128	296	TFT - Color	SPI

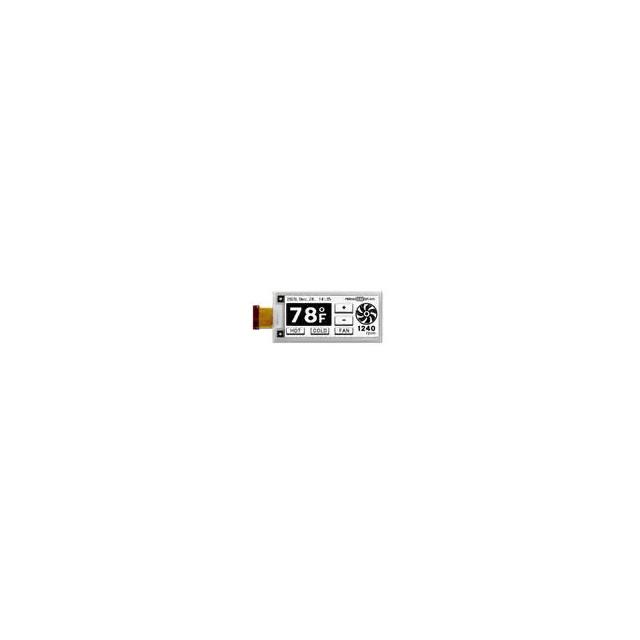

Pervasive Displays E2287PS091	0.23 mm	0.23 mm	Black White			2.87 in	72.89 mm	128	296	TFT - Color	SPI

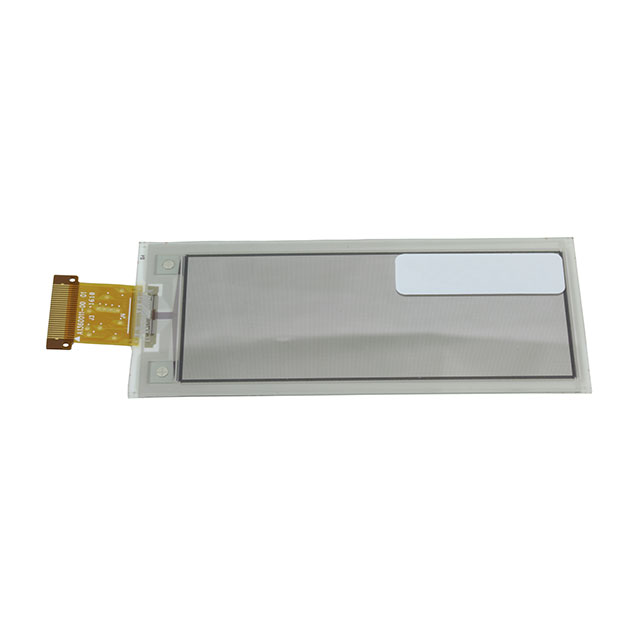

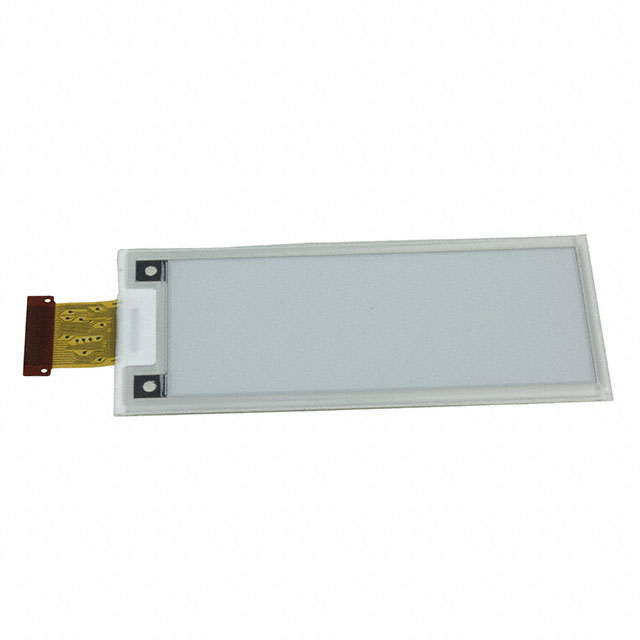

Pervasive Displays E2287CS051	0.23 mm	0.23 mm	Black	66.9 mm	29.06 mm	2.87 in	72.89 mm	128	296	TFT - Electronic Paper Display (EPD)	SPI	White	Reflective

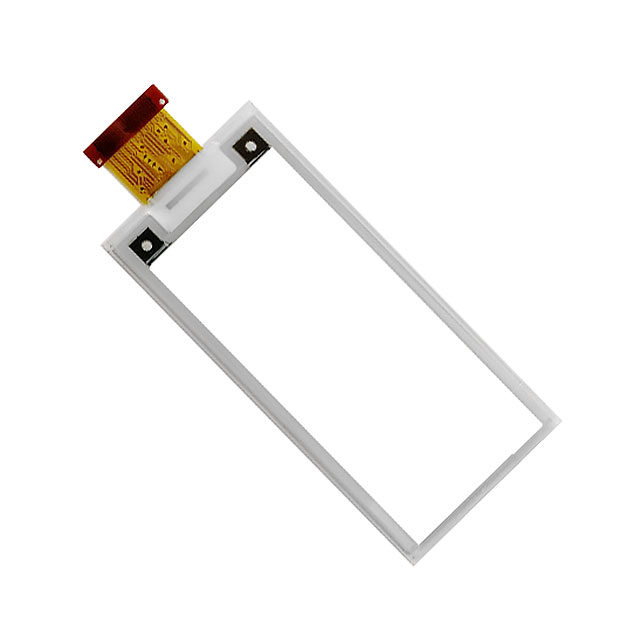

Pervasive Displays E2287ES051	0.23 mm	0.23 mm	Black Red	66.9 mm	29.06 mm	2.87 in	72.89 mm	128	296	TFT - Electronic Paper Display (EPD)	SPI	White	Reflective

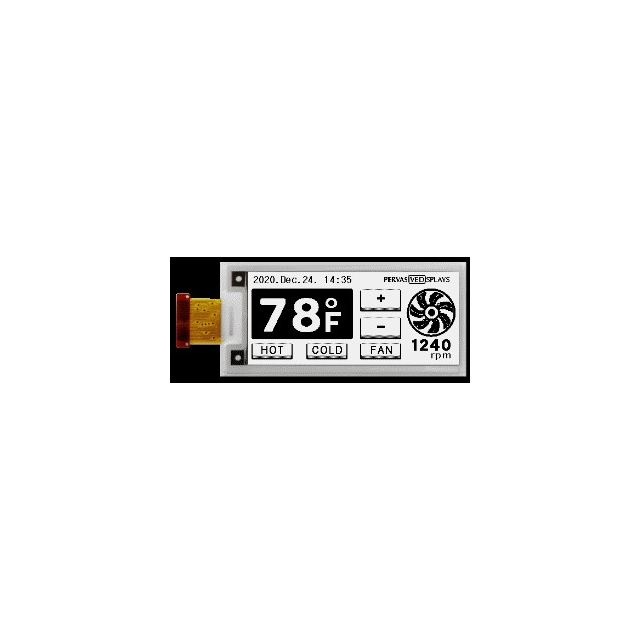

Pervasive Displays E2287CS091	0.23 mm	0.23 mm	Black White	66.9 mm	29.06 mm	2.9 in	73.66 mm	128	296	TFT - Color	SPI
