TPS742 Series

Catalog

IC REG LIN POS ADJ 1.5A DDPAK

Part	Output Type	Current - Quiescent (Iq)	Voltage Dropout (Max) [Max]	Voltage - Output (Max) [Max]	Protection Features	Voltage - Output (Min/Fixed)	Current - Output	Supplier Device Package	Package / Case	Voltage - Input (Max) [Max]	Number of Regulators	Control Features	Current - Supply (Max) [Max]	Mounting Type	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Board Type	Supplied Contents	Contents	Regulator Type	Channels per IC	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Package / Case	Package / Case	PSRR	PSRR
Texas Instruments TPS74201KTWT	Adjustable	115 µA	0.12 V	3.6 V	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	0.8 V	1.5 A	TO-263 (DDPAK-7)	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	5.5 V	1	Enable Power Good Soft Start	1.5 mA	Surface Mount	Positive	125 °C	-40 C
Texas Instruments TPS74201KTWTG3	Adjustable	115 µA	0.12 V	3.6 V	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	0.8 V	1.5 A	TO-263 (DDPAK-7)	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	5.5 V	1	Enable Power Good Soft Start	1.5 mA	Surface Mount	Positive	125 °C	-40 C

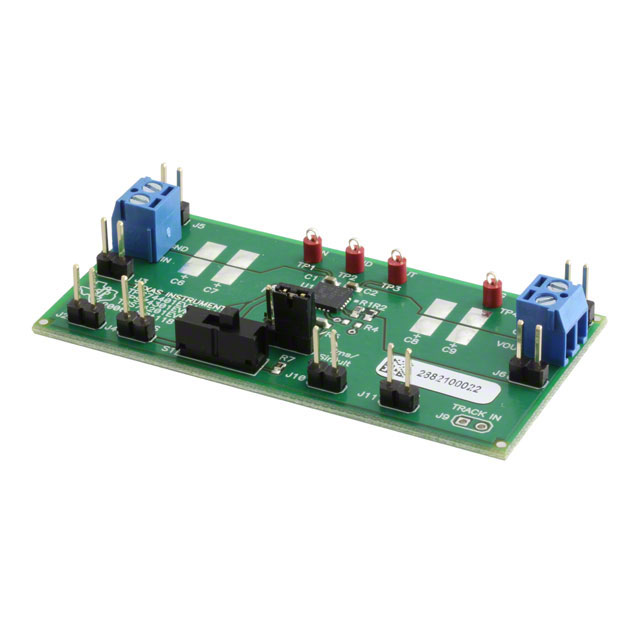

Texas Instruments TPS74201EVM-118							1.5 A											Fully Populated	Board(s)	Board(s)	Positive Adjustable	1	1.2 V	1.3 V	5.25 V	TPS74201
Texas Instruments TPS7425DR		115 µA			Over Current Over Temperature Reverse Polarity	2.5 V	0.2 A	8-SOIC	8-SOIC	7 V	1	Enable	1.5 mA	Surface Mount	Positive	125 °C	-40 C										0.154 in	3.9 mm	PSRR	55 dB
