AFB0424 Series

Catalog

FAN AXIAL 40X15MM 24VDC WIRE

Part	Current Rating (Amps)	Material - Frame	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Weight	Weight	Termination	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Bearing Type	RPM	Power (Watts)	Static Pressure	Static Pressure	Fan Type	Voltage - Rated	Size / Dimension [x]	Size / Dimension [z]	Width [y]	Noise	Air Flow	Air Flow	Features
Delta Electronics AFB0424SHB	120 mA	Plastic	Plastic	27.6 VDC	14	70000 Hrs	0.057 lb	25.85 g	2 Wire Leads	CE CSA UL VDE	70 °C	-10 °C	Ball	11000 RPM	2.88 W	149.7 Pa	0.601 in H2O	Tubeaxial	24 VDC	40 mm	40 mm	15 mm	41.5 dB	14.8 CFM	0.414 mł/min
Delta Electronics AFB0424MB-R00	60 mA	Plastic	Plastic	27.6 VDC	14	70000 Hrs	0.057 lb	25.85 g	3 Wire Leads	CE CSA UL VDE	70 °C	-10 °C	Ball	6000 RPM	1.44 W			Tubeaxial	24 VDC	40 mm	40 mm	15 mm	24.5 dB(A)	8.1 CFM	0.227 m³/min	Locked Rotor Sensor
Delta Electronics AFB0424HHB	0.09 A	Plastic	Plastic	27.6 VDC	14	70000 Hrs	0.057 lb	25.85 g	2 Wire Leads	CE CSA UL VDE	70 °C	-10 °C	Ball	8300 RPM	2.16 W	89.4 Pa	0.359 in H2O	Tubeaxial	24 VDC	40 mm	40 mm	15 mm	32 dB	11.5 CFM	0.322 m³/min
Delta Electronics AFB0424LB	50 mA	Plastic	Plastic	27.6 VDC	14	70000 Hrs	0.057 lb	25.85 g	2 Wire Leads	CE CSA UL VDE	70 °C	-10 °C	Ball	5000 RPM	1.2 W	35.9 Pa	0.144 in H2O	Tubeaxial	24 VDC	40 mm	40 mm	15 mm	18.5 dB(A)	6.5 CFM	0.182 m³/min

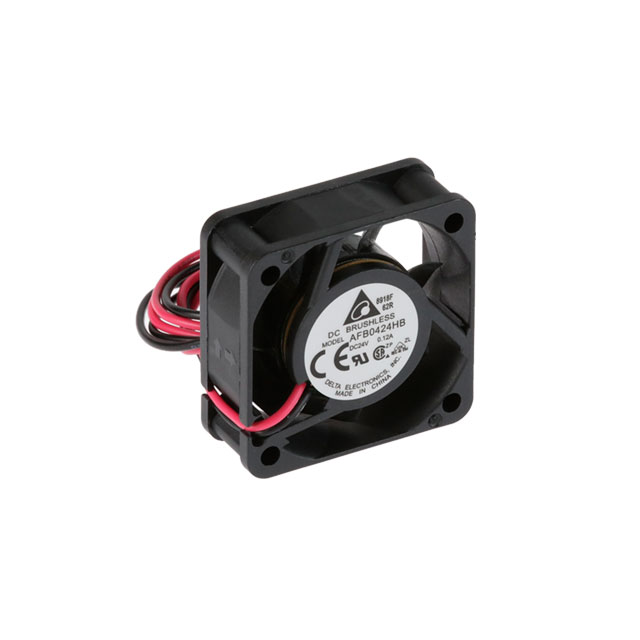

Delta Electronics AFB0424HB		Plastic	Plastic	27.6 VDC	14	70000 Hrs	0.057 lb	25.85 g	2 Wire Leads	CE CSA UL VDE	70 °C	-10 °C	Ball	7000 RPM	1.92 W	67.7 Pa	0.272 in H2O	Tubeaxial	24 VDC	40 mm	40 mm	15 mm	28.5 dB	9.5 CFM	0.266 m³/min
