H2155 Series
Manufacturer: Harwin Inc.
Beta
⌘K

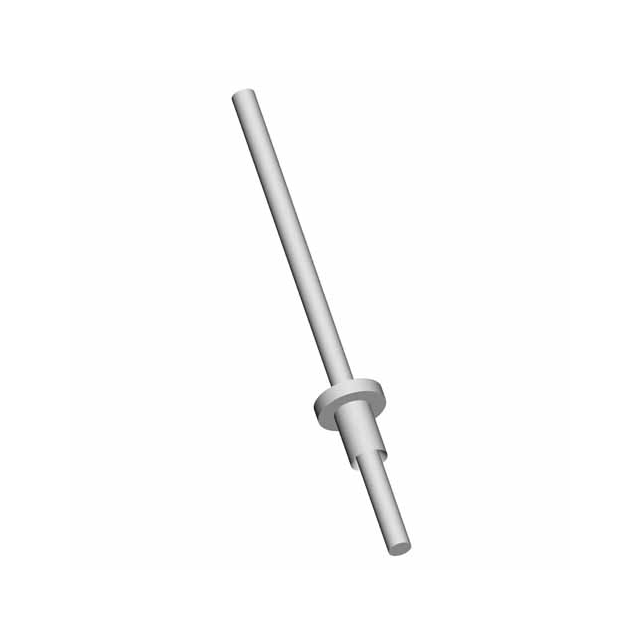

CONN PC PIN CIRC 0.031DIA TIN
| Part | Length - Above Flange [x] | Length - Above Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Terminal Type | Mounting Type | Terminal Style | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Insulation | Length - Below Flange [x] | Length - Below Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Overall | Length - Overall | Termination | Contact Material | Contact Finish | Board Thickness | Board Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 12.19 mm | 0.48 in | 0.031 in | 0.79 mm | PC Pin | Through Hole | Double End | 1.37 mm | 0.05 " | 1.27 mm | 0.054 " | Non-Insulated | 0.224 " | 5.69 mm | 0.093 in | 2.36 mm | 0.719 in | 18.26 mm | Swage | Brass | Tin | 0.063 in | 1.6 mm |
