219572 Series

Catalog

EXTERNAL FULL BAND ANTENNA

Part	Antenna Type	Number of Bands	Applications	Frequency Group	VSWR	Gain	Frequency (Center/Band)	Height (Max) [Max] [z]	Height (Max) [Max] [z]	RF Family/Standard	Mounting Type	Frequency Range [Max]	Frequency Range [Min]	Height (Max)	Height (Max)

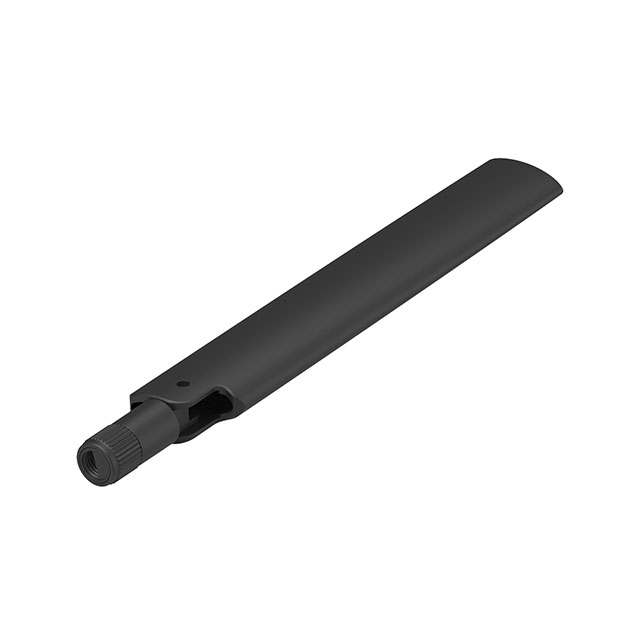

TE Connectivity Raychem Cable Protection 2195729-1	Blade Tilt	6	Galileo GLONASS GNSS GPS LTE UMTS WCDMA	Wide Band	3	0 dBi 0.98 dBi 1 dBi 1.5 dBic 2.4 dBi 3 dBi	1.515 GHz 2.205 GHz 3.55 GHz 4.7 GHz 5.5375 GHz 875 MHz	5.35 in	135.89 mm	Cellular Navigation	Connector Mount	1.61 GHz 2.7 GHz 3.8 GHz 5 GHz 5.925 GHz 960 MHz	1.42 GHz 1.71 GHz 3.3 GHz 4.4 GHz 5.15 GHz 790 MHz
TE Connectivity Raychem Cable Protection 2195728-1	PCB Trace	3	2G 3G 4G 5G GNSS LTE UMTS WCDMA		2.5	2.3 dBi	1.544 GHz 2.205 GHz 829 MHz			Cellular Navigation	Surface Mount	1.661 GHz 2.7 GHz 960 MHz	1.427 GHz 1.71 MHz 698 MHz	1.58 mm	0.062 in
