AOW190 Series

Catalog

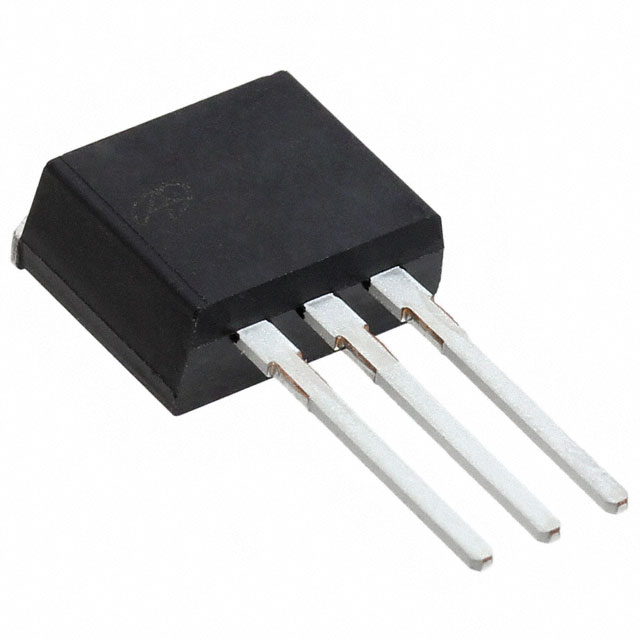

MOSFET N-CH 600V 20A TO262

Part	Vgs(th) (Max) @ Id	Vgs (Max)	Technology	Drain to Source Voltage (Vdss)	FET Type	Package / Case	Rds On (Max) @ Id, Vgs	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max) [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Drive Voltage (Max Rds On, Min Rds On)	Supplier Device Package
Alpha & Omega Semiconductor Inc. AOW190A60C	4.6 V	20 V	MOSFET (Metal Oxide)	600 V	N-Channel	I2PAK TO-262-3 Long Leads TO-262AA	190 mOhm	Through Hole	1935 pF	150 °C	-55 °C	20 A	208 W	34 nC	10 V	TO-262
