TE30A1203 Series

Manufacturer: SL POWER / Advanced Energy

Catalog

AC/DC DESKTOP ADAPTER 12V 30W

Part	No Load Power Consumption	Input Type	Power (Watts)	Polarization	Applications	Input Connector	Output Connector [diameter]	Output Connector [x]	Output Connector	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output	Region Utilized	Cord Length	Cord Length	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Form	Current - Output (Max) [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Weight	Weight	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
SL POWER / Advanced Energy TE30A1203Q01	100 mW	Cord (Sold Separately)	30 Watts	Positive Center	ITE (Commercial)	IEC 320-C18	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	95.5 mm	54 mm	3.76 in	31 mm	1.22 in	2.13 in	12 V	International	57 in	1.45 m	Level VI	-20 ░C	70 °C	CE	Desktop (Class II)	2.5 A	264 VAC	90 VAC
SL POWER / Advanced Energy TE30A1203N01	100 mW	Cord (Sold Separately)	30 Watts	Positive Center	ITE (Commercial)	IEC 320-C8	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	95.5 mm	54 mm	3.76 in	31 mm	1.22 in	2.13 in	12 V	International	57 in	1.45 m	Level VI	-20 ░C	40 °C	CB CE CSA UL	Desktop (Class II)	2.5 A	264 VAC	90 VAC	0.551 lb	249.93 g

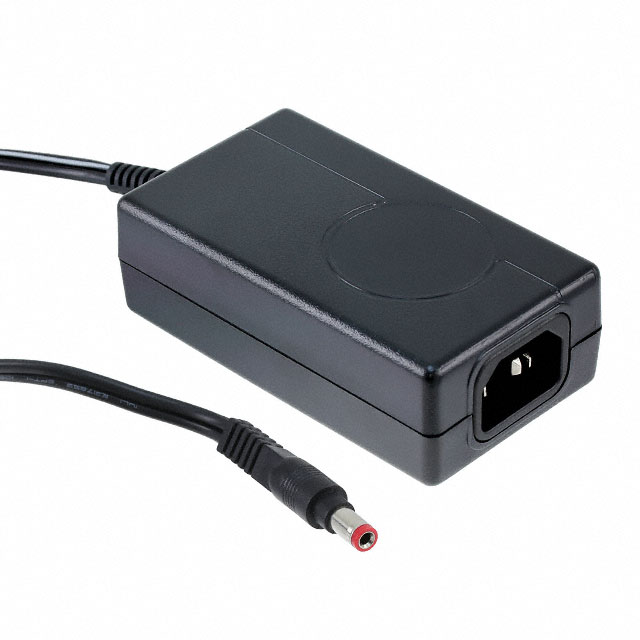

SL POWER / Advanced Energy TE30A1203F01	100 mW	Cord (Sold Separately)	30 Watts	Positive Center	ITE (Commercial)	IEC 320-C14	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	95.5 mm	54 mm	3.76 in	31 mm	1.22 in	2.13 in	12 V	International	57 in	1.45 m	Level VI	-20 ░C	40 °C	CB CE DEMKO UL	Desktop (Class I)	2.5 A	264 VAC	90 VAC	0.551 lb	249.93 g
SL POWER / Advanced Energy TE30A1203C01	100 mW	Fixed Blade	30 Watts	Positive Center	ITE (Commercial)	NEMA 1-15P	2.5 mm 5.5 mm	9.5 mm	Barrel Plug			96 mm		33.6 mm	55 mm	12 V	North America	57 in	1.45 m	Level VI	-20 ░C	40 °C	CB CE DEMKO UL	Wall Mount	2.5 A	264 VAC	90 VAC	0.551 lb	249.93 g	3.78 in	2.17 "	1.32 in
SL POWER / Advanced Energy TE30A1203B01	100 mW	Fixed Blade Multi-Blade	30 Watts	Positive Center	ITE (Commercial)	NEMA 1-15P Multi-Blade	2.5 mm 5.5 mm	9.5 mm	Barrel Plug			96 mm		33.6 mm	55 mm	12 V	North America	57 in	1.45 m	Level VI	-20 ░C	40 °C	CB CE DEMKO UL	Wall Mount	2.5 A	264 VAC	90 VAC	0.551 lb	249.93 g	3.78 in	2.17 "	1.32 in
