WS0850 Series

Manufacturer: E-Switch

Catalog

SWITCH SNAP ACTION SPDT 1A 24V

Part	Termination Style	Current Rating (Amps)	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Ingress Protection	Switch Function	Voltage Rating - DC	Mounting Type	Mechanical Life	Circuit	Actuator Type	Operating Position	Operating Position

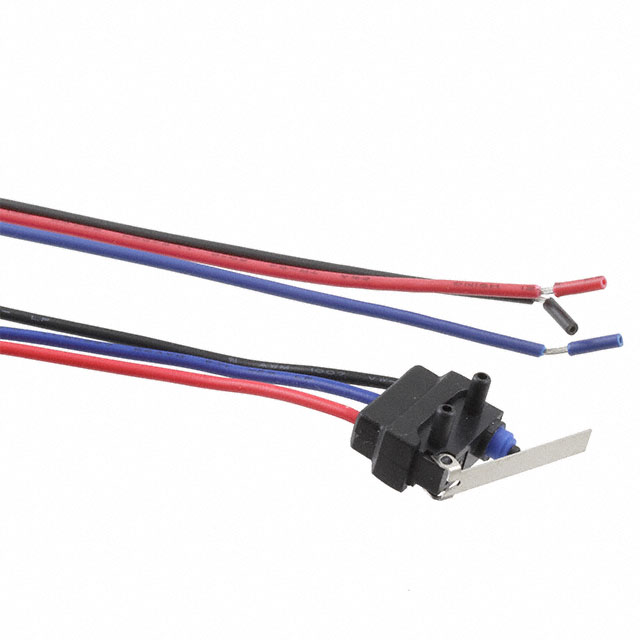

E-Switch WS0850101F050WA	Wire Leads	1 A	10000 Cycles	85 °C	-25 °C	50 gf	IP67 - Dust Tight Waterproof	On-Mom	24 V	Chassis Mount	1000000 Cycles	SPDT	Lever Straight	13.4 mm	0.528 in

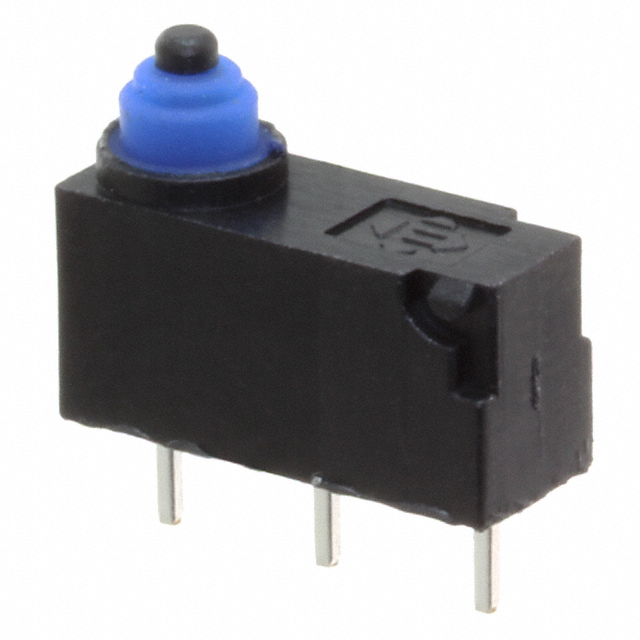

E-Switch WS0850100F070PA	PC Pin	1 A	10000 Cycles	85 °C	-25 °C	70 gf	IP67 - Dust Tight Waterproof	On-Mom	24 V	Through Hole	1000000 Cycles	SPDT	Round (Pin Plunger)	10.5 mm	0.413 in

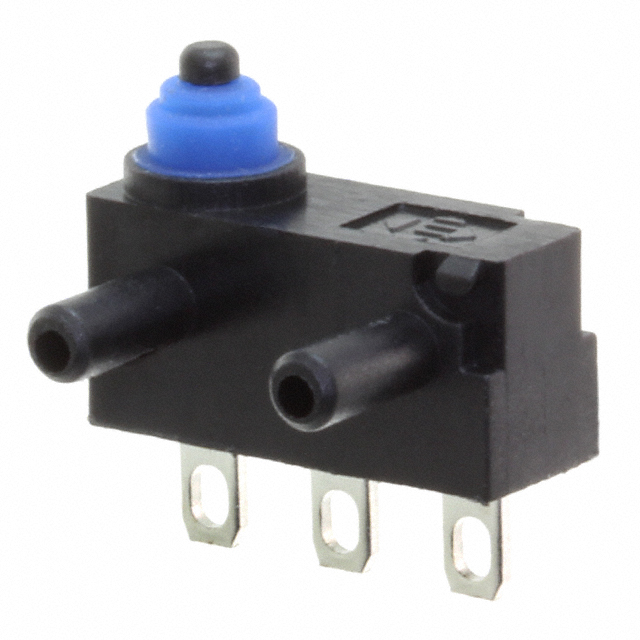

E-Switch WS0850100F070SA	Solder Lug	1 A	10000 Cycles	85 °C	-25 °C	70 gf	IP67 - Dust Tight Waterproof	On-Mom	24 V	Chassis Mount	1000000 Cycles	SPDT	Round (Pin Plunger)	10.5 mm	0.413 in
