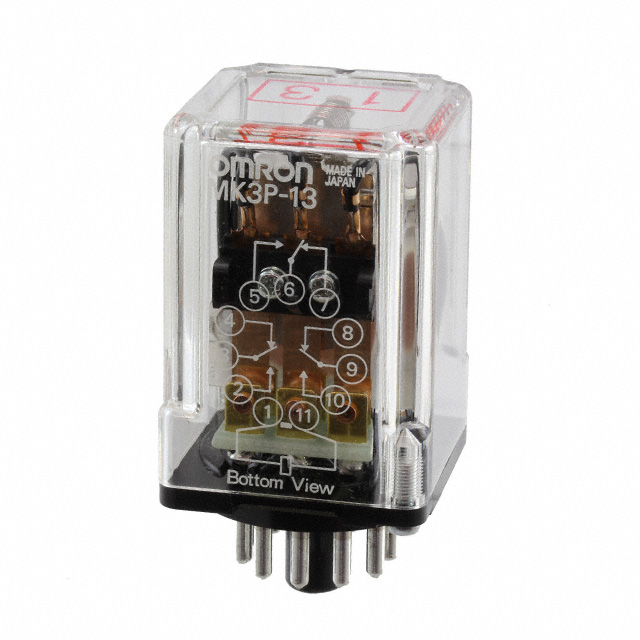

MK3P-1 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE 3PDT 10A 24V
| Part | Contact Form | Load - Max Switching | Coil Current | Coil Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Rating (Current) | Release Time | Must Operate Voltage | Coil Resistance | Mounting Type | Approval Agency | Must Release Voltage | Contact Material | Coil Voltage | Termination Style | Relay Type | Operate Time | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 3PDT (3 Form C) | 280 W 2500 VA | 56 mA | Non Latching | -10 °C | 40 °C | 10 A | 20 ms | 19.2 VDC | 430 Ohms | Socketable | DEMKO SEV TUV UL | 3.6 VDC | Silver (Ag) | 24 VDC | Plug In 11 Pin (Octal) | General Purpose | 30 ms | 250 VAC 250 VDC |
