R1973ABL Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER SPST 9A 125V
| Part | Electrical Life | Mechanical Life | Switch Function | Voltage Rating - AC | Termination Style | Circuit | Actuator Type | Color - Actuator/Cap | Illumination Voltage (Nominal) | Mounting Type | Actuator Marking | Current Rating (Amps) | Illumination Type, Color | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | 30000 Steps | On-Off | 125 V | Quick Connect | SPST | Concave (Curved) - Illuminated | Red | 12 VDC | Panel Mount Snap-In | O - | 9 A | Incandescent Red | -30 ░C | 65 °C |
E-Switch | 10000 Cycles | 30000 Steps | On-Off | 125 V | Quick Connect | SPST | Concave (Curved) - Illuminated | Red | 250 VAC | Panel Mount Snap-In | No Marking | 9 A | Neon Red | -30 ░C | 65 °C |
E-Switch | 10000 Cycles | 30000 Steps | On-Off | 125 V | Quick Connect | SPST | Concave (Curved) - Illuminated | Red | 24 V | Panel Mount Snap-In | No Marking | 9 A | Incandescent Red | -30 ░C | 65 °C |

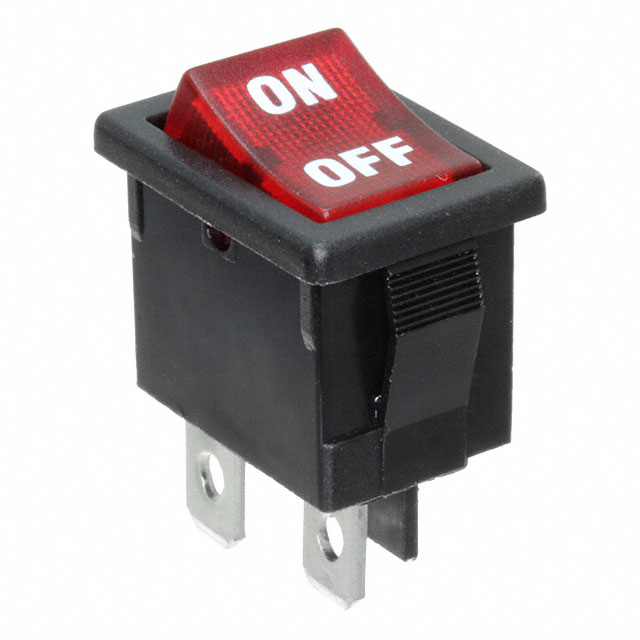

 E-Switch | 10000 Cycles | 30000 Steps | On-Off | 125 V | Quick Connect | SPST | Concave (Curved) - Illuminated | Red | 125 VAC | Panel Mount Snap-In | ON OFF | 9 A | Neon Red | -30 ░C | 65 °C |
E-Switch | 10000 Cycles | 30000 Steps | On-Off | 125 V | Quick Connect | SPST | Concave (Curved) - Illuminated | Red | 12 VDC | Panel Mount Snap-In | No Marking | 9 A | Incandescent Red | -30 ░C | 65 °C |
E-Switch | 10000 Cycles | 30000 Steps | On-Off | 125 V | Quick Connect | SPST | Concave (Curved) - Illuminated | Red | 250 VAC | Panel Mount Snap-In | O - | 9 A | Neon Red | -30 ░C | 65 °C |
E-Switch | 10000 Cycles | 30000 Steps | On-Off | 125 V | Quick Connect | SPST | Concave (Curved) | Black | Panel Mount Snap-In | ON OFF | 9 A | -30 ░C | 65 °C | ||
E-Switch | 10000 Cycles | 30000 Steps | On-Off | 125 V | Quick Connect | SPST | Concave (Curved) - Illuminated | Yellow | 12 VDC | Panel Mount Snap-In | No Marking | 9 A | Incandescent Yellow | -30 ░C | 65 °C |
E-Switch | 10000 Cycles | 30000 Steps | On-Off | 125 V | Quick Connect | SPST | Concave (Curved) | Black | Panel Mount Snap-In | No Marking | 9 A | -30 ░C | 65 °C | ||

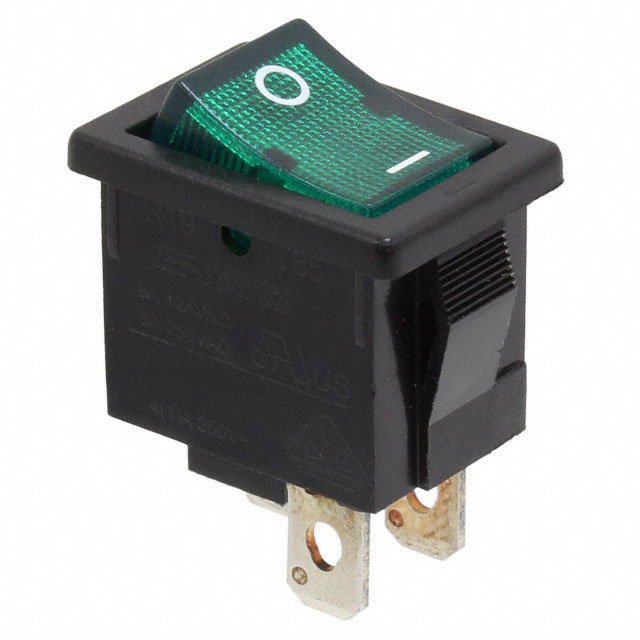

 E-Switch | 10000 Cycles | 30000 Steps | On-Off | 125 V | Quick Connect | SPST | Concave (Curved) - Illuminated | Green | 12 VDC | Panel Mount Snap-In | O I | 9 A | Green Incandescent | -30 ░C | 65 °C |
