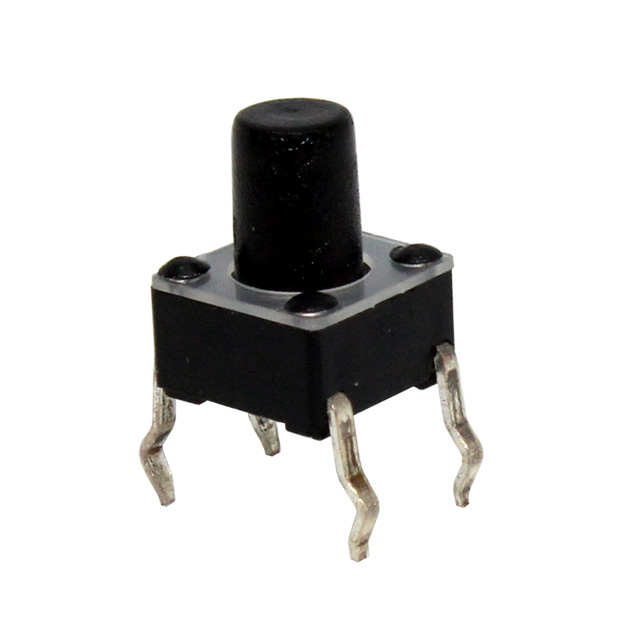

CT11028 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Actuator Material | Switch Travel | Illumination | Contact Rating @ Voltage | Termination Style | Actuator Orientation | Actuator Type | Operating Force | Outline [x] | Outline [y] | Actuator Height off PCB, Vertical | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Nylon 6/6 Polyamide (PA66) | 0.25 mm | Non-Illuminated | 0.05 A 50 VDC | PC Pin | Top Actuated | Plunger for Cap | 260 gf | 6 mm | 6 mm | 8 mm | Through Hole | 85 °C | -40 C | Off-Mom | SPST-NO |
CIT Relay and Switch | Nylon 6/6 Polyamide (PA66) | 0.25 mm | Non-Illuminated | 0.05 A 50 VDC | PC Pin | Top Actuated | Plunger for Cap | 100 gf | 6 mm | 6 mm | 8 mm | Through Hole | 85 °C | -40 C | Off-Mom | SPST-NO |
