HDC Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

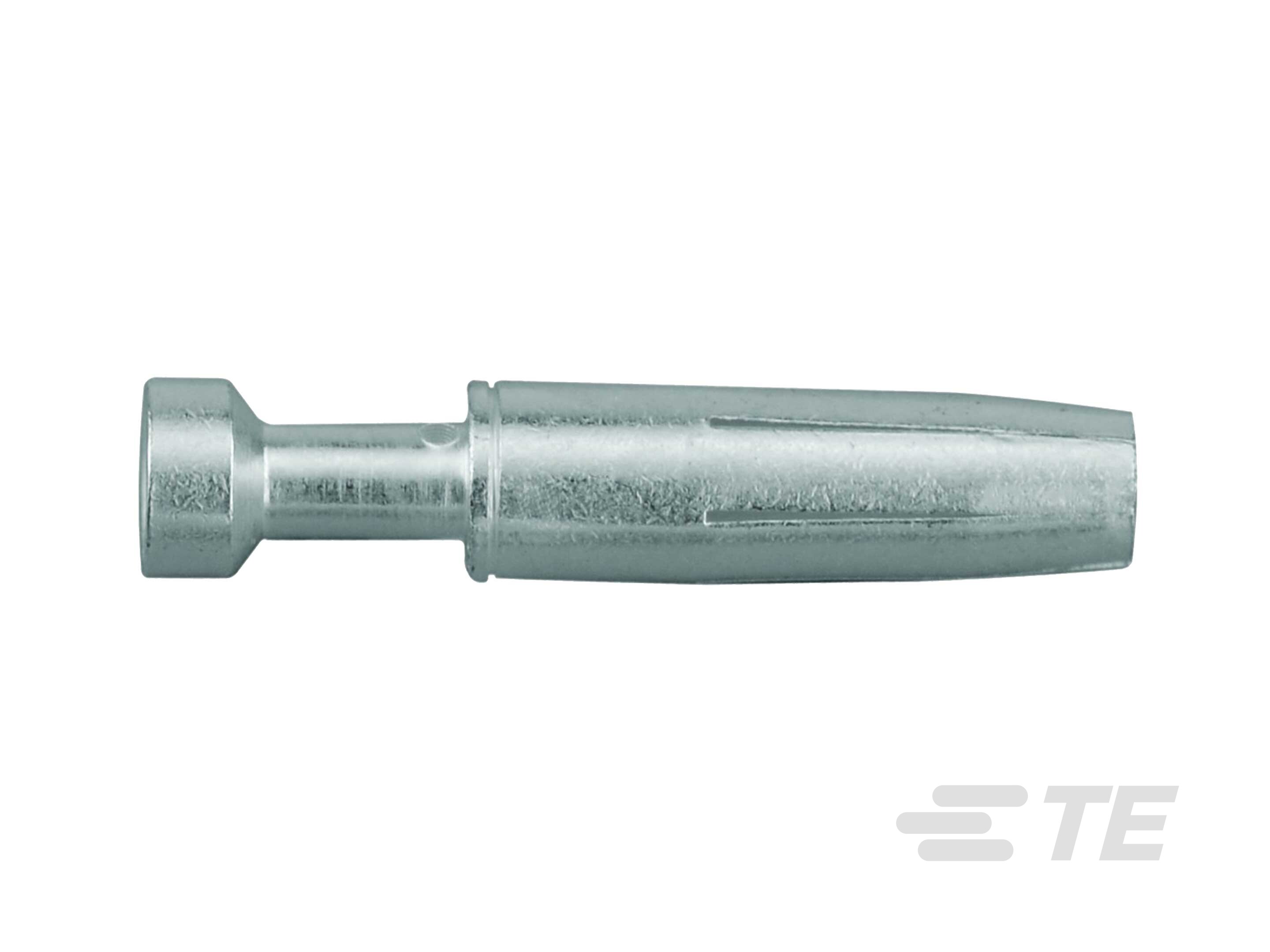

HEAVY DUTY CONTACT, SOCKET, CRIMP, 20AWG
| Part | Wire Gauge | Pin or Socket | Contact Finish | Contact Termination | Connector Type | Housing Material | Lock Location | Ingress Protection | Thread Size | Housing Finish | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Housing Color | Size | Style | Frame Type | Gender | Size | Material | Material Flammability Rating | Color | Contact Type | Current Rating (Amps) | Number of Positions | Voltage Rating | Termination Style | Contact Finish Thickness | Contact Finish Thickness | Type | Specifications | Accessory Type | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 20 AWG | Socket | Silver | Crimp | ||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Hood | Aluminum Alloy Die Cast | Screw Locks on Hood | IP68 - Dust Tight Waterproof | M25 | Powder Coated | 125 °C | -40 C | 166 mm | 2.283 in | 6.535 in | 58 mm | 4.4 in | 111.75 mm | Black | H16B | Top Entry Dual | |||||||||||||||||||||
 TE Connectivity AMP Connectors | Hood | Screw Locks on Hood | IP68 - Dust Tight Waterproof | M25 | 125 °C | -40 C | H10B | Side Entry | ||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Docking Carrier Shell Frame | Female Male | 8 | Zinc Alloy | ||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Hood | Aluminum Alloy Die Cast | Screw Locks on Hood | IP68 - Dust Tight Waterproof | PG48 | Powder Coated | 125 °C | -40 C | 166 mm | 3.709 in | 6.535 in | 94.2 mm | 4.382 in | 111.3 mm | Black | H32B | Top Entry | |||||||||||||||||||||
 TE Connectivity AMP Connectors | Hood | Aluminum Alloy Die Cast | Screw Locks on Hood | IP68 - Dust Tight Waterproof | PG21 | Powder Coated | 125 °C | -40 C | 110 mm | 2.094 " | 4.331 in | 53.2 mm | 2.756 " | 70 mm | Silver | H10B | Side Entry | |||||||||||||||||||||

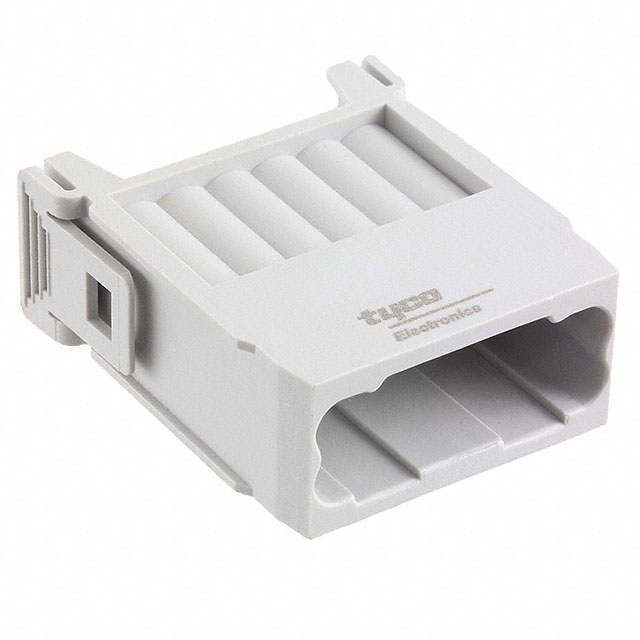

 TE Connectivity AMP Connectors | Insert without Contacts | Polycarbonate (PC) | 125 °C | -40 C | Male | 6 | UL94 V-0 | Beige | HD.M | 10 A | 40+Ground | 250 V | Crimp | |||||||||||||||||||||||||
 TE Connectivity AMP Connectors | 11 AWG | Socket | Silver | Crimp | 78.7 µin | 2 µm | Machined | |||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Insert without Contacts | Polycarbonate (PC) | 125 °C | -40 C | Female | 5 | UL94 V-0 | Beige | HD.M | 10 A | 25+Ground | 250 V | Crimp | |||||||||||||||||||||||||
 TE Connectivity AMP Connectors | PG29 Thread | Cable Gland | Heavy Duty Housings |
