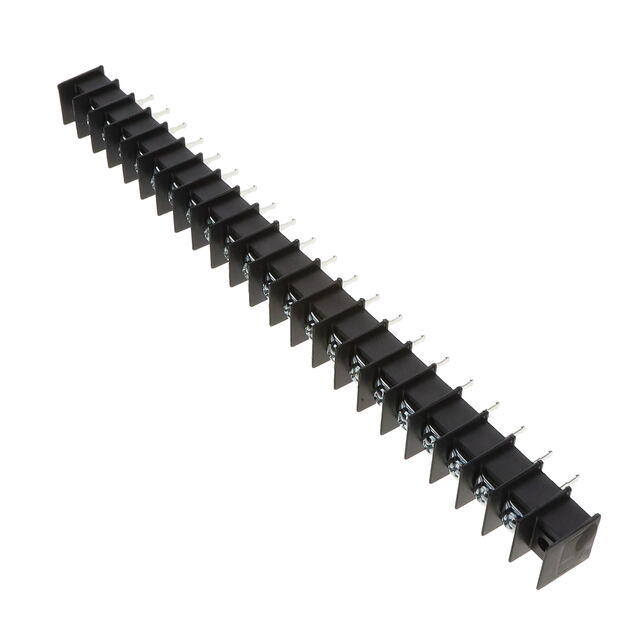

430201 Series
Manufacturer: Curtis Industries
Beta
⌘K
CONN BARRIER STRIP 2CIRC 0.438"
| Part | Operating Temperature | Material - Insulation | Mounting Type | Material Flammability Rating | Voltage Rating | Pitch [x] | Pitch [x] | Bottom Termination | Wire Gauge [Max] | Wire Gauge [Min] | Current Rating (Amps) | Number of Circuits | Top Termination | Barrier Type | Terminal Block Type | Number of Rows | Number of Wire Entries | Features | Number of Circuits [custom] | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | 105 C | Polypropylene (PP) | Chassis Panel | UL94 V-0 | 600 V | 0.438 in | 11.12 mm | Solder Turret | 22 AWG | 12 AWG | 20 A | 2 | Screws | 2 Wall (Dual) | Barrier Block | 1 | 2 | Flange | ||
 Curtis Industries | 105 C | Polypropylene (PP) | Chassis Panel | UL94 V-0 | 600 V | 0.438 in | 11.12 mm | Solder Turret | 22 AWG | 12 AWG | 20 A | 21 | Screws | 2 Wall (Dual) | Barrier Block | 1 | 21 | Flange | ||
Curtis Industries | 105 C | Polypropylene (PP) | Chassis Panel | UL94 V-0 | 600 V | 0.438 in | 11.12 mm | Solder Turret | 22 AWG | 12 AWG | 20 A | 25 | Screws | 2 Wall (Dual) | Barrier Block | 1 | 25 | Flange | ||
Curtis Industries | 105 C | Polypropylene (PP) | Chassis Panel | UL94 V-0 | 600 V | 0.438 in | 11.12 mm | Solder Turret | 22 AWG | 12 AWG | 20 A | Screws | 2 Wall (Dual) | Barrier Block | 1 | 9 | Flange | 9 | ||
Curtis Industries | 105 C | Polypropylene (PP) | Chassis Panel | UL94 V-0 | 600 V | 0.438 in | 11.12 mm | Solder Turret | 22 AWG | 12 AWG | 20 A | 24 | Screws | 2 Wall (Dual) | Barrier Block | 1 | Flange | |||
Curtis Industries | 105 C | Polypropylene (PP) | Chassis Panel | UL94 V-0 | 600 V | 0.438 in | 11.12 mm | Solder Turret | 22 AWG | 12 AWG | 20 A | 13 | Screws | 2 Wall (Dual) | Barrier Block | 1 | 13 | Flange | ||
Curtis Industries | 105 C | Polypropylene (PP) | Chassis Panel | UL94 V-0 | 600 V | 0.438 in | 11.12 mm | Solder Turret | 22 AWG | 12 AWG | 20 A | 4 | Screws | 2 Wall (Dual) | Barrier Block | 1 | 4 | Flange | ||
Curtis Industries | 105 C | Polypropylene (PP) | Chassis Panel | UL94 V-0 | 600 V | 0.438 in | 11.12 mm | Solder Turret | 22 AWG | 12 AWG | 20 A | 7 | Screws | 2 Wall (Dual) | Barrier Block | 1 | Flange | 7 | ||
Curtis Industries | 105 C | Polypropylene (PP) | Chassis Panel | UL94 V-0 | 600 V | 0.438 in | 11.12 mm | Solder Turret | 22 AWG | 12 AWG | 20 A | 8 | Screws | 2 Wall (Dual) | Barrier Block | 1 | 8 | Flange | ||
Curtis Industries | 105 C | Polypropylene (PP) | Chassis Panel | UL94 V-0 | 600 V | 0.438 in | 11.12 mm | Solder Turret | 22 AWG | 12 AWG | 20 A | 26 | Screws | 2 Wall (Dual) | Barrier Block | 1 | 26 | Flange |
