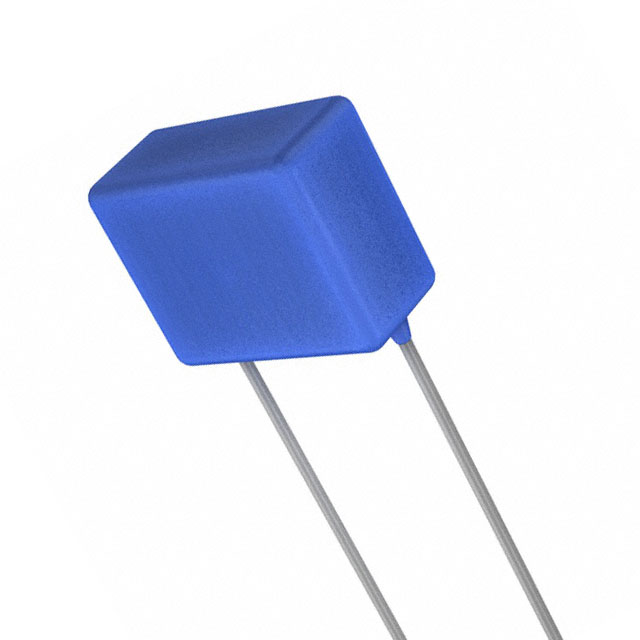

HV Series

Manufacturer: KEMET

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - LEADED 1000V 2.2UF X7R 10% LS=34.92MM

Part	Capacitance	Lead Spacing	Lead Spacing	Temperature Coefficient	Voltage - Rated	Voltage - Rated	Features	Lead Style	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Applications	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
KEMET 10HV36B225KN	2.2 µF	1.375 in	34.92 mm	X7R	1 kV	1000 V	High Voltage	Straight	6.86 mm	0.27 in	36.83 mm	1.45 in	Through Hole	Radial	-55 C	125 °C	10 %	SMPS Filtering

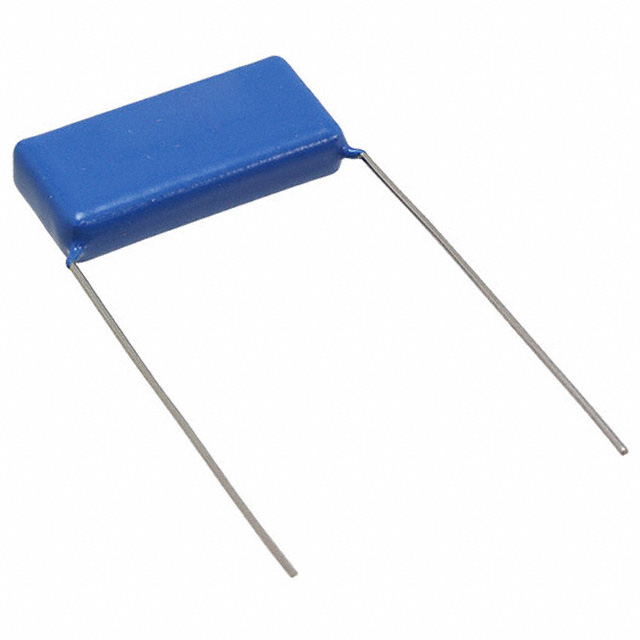

KEMET 30HV14B103KN	10000 pF	0.5 in	12.7 mm	X7R	3 kV	3000 V	High Temperature High Voltage	Straight		0.3 "	15.75 mm	0.62 in	Through Hole	Radial	-55 C	200 °C	10 %	Downhole	7.62 mm	0.5 in	12.7 mm
