PIMN31 Series

500 mA, 50 V NPN/NPN double resistor-equipped transistor; R1 = 1 kOhm, R2 = 10 kOhm

Catalog

500 mA, 50 V NPN/NPN double resistor-equipped transistor; R1 = 1 kOhm, R2 = 10 kOhm

Part	Grade	Mounting Type	Supplier Device Package	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Transistor Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector Cutoff (Max) [Max]	Resistor - Base (R1)	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce Saturation (Max) @ Ib, Ic [Max]	Package / Case	Resistor - Emitter Base (R2)	Qualification	Vce Saturation (Max) @ Ib, Ic	Frequency - Transition

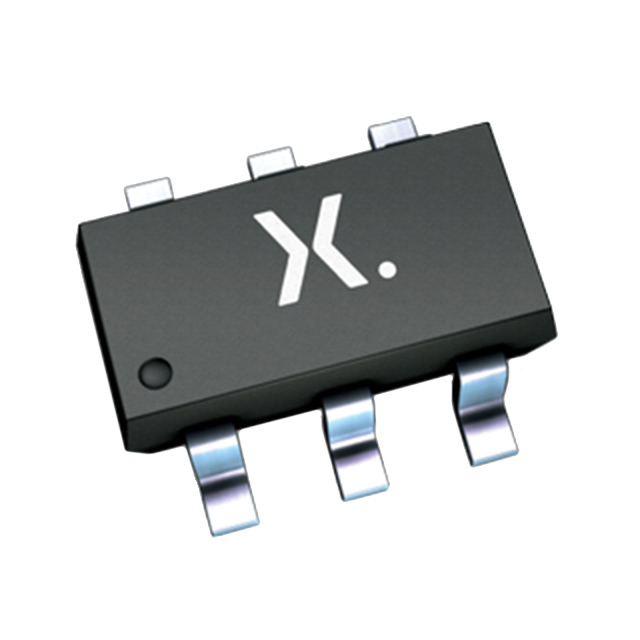

Nexperia USA Inc. PIMN31,115	Automotive	Surface Mount	6-TSOP	420 mW	500 mA	2 NPN - Pre-Biased (Dual)	70	500 nA	1 kOhms	50 V	300 mV	SC-74 SOT-457	10 kOhms	AEC-Q100
Nexperia USA Inc. PIMN31F	Automotive	Surface Mount	SC-74	290 mW	500 mA		70	500 nA	1 kOhms	50 V	300 mV	SC-74 SOT-457	10 kOhms	AEC-Q101
Nexperia USA Inc. PIMN31PAS-QX	Automotive	Surface Mount	DFN2020D-6	360 mW	500 mA	2 NPN - Pre-Biased	70	500 nA	1 kOhms	50 V		6-UDFN Exposed Pad	10 kOhms	AEC-Q101	100 mV	210 MHz
Nexperia USA Inc. PIMN31PAX		Surface Mount	6-HUSON (2x2)	360 mW	500 mA	2 NPN - Pre-Biased	70	500 nA	1 kOhms	50 V		6-UFDFN Exposed Pad	10 kOhms		100 mV	210 MHz

Catalog

500 mA, 50 V NPN/NPN double resistor-equipped transistor; R1 = 1 kOhm, R2 = 10 kOhm

Description

NPN/NPN Resistor-Equipped double Transistor (RET) in a medium power SOT1118D (DFN2020D-6) leadless Surface-Mounted Device (SMD) plastic package with side-wettable flanks (SWF).
