HSDNBRPP Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

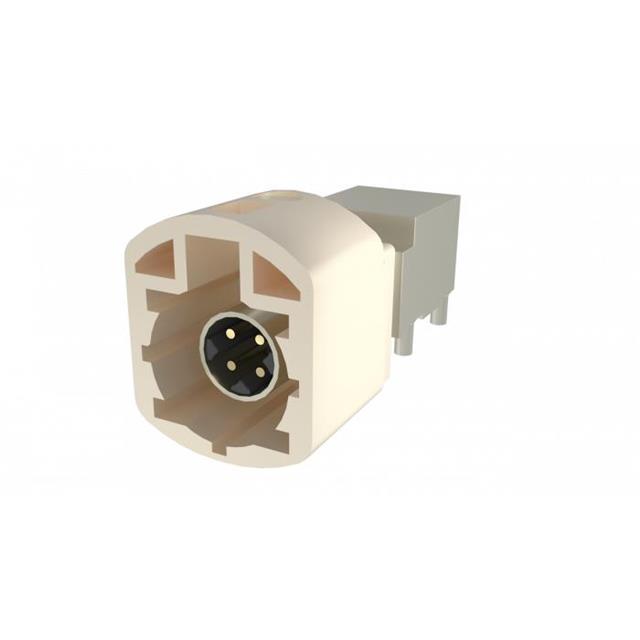

HSD 4+0 R/A T/H CODE B
| Part | Body Finish | Dielectric Material | Center Contact Plating | Body Material | Contact Termination | Connector Type | Features | Mounting Type | Connector Style | Fastening Type | Number of Ports | Shield Termination | Center Contact Material | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Tin | Thermoplastic | Gold | Zinc Alloy | Solder | Plug Male Pin | Code B | Right Angle Through Hole | Fakra HSD® Quadraxial | Latch Lock | 1 | Solder | Copper Alloy | White | ||||
 Amphenol ICC (Commercial Products) | Tin | Thermoplastic | Gold | Zinc Alloy | Solder | Plug Male Pin | Code B | Through Hole | Fakra HSD® Quadraxial | Latch Lock | 1 | Solder | Copper Alloy | White | -40 C | 105 ░C | 25 | 100 Ohms |
