CABLE 235 Series
Manufacturer: GCT
Beta
⌘K

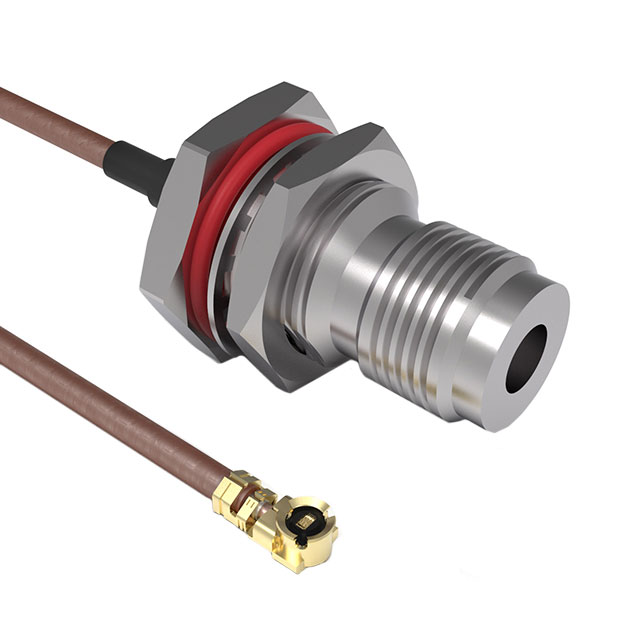

CBL ASY IPEX MHF1-TNC J-P 3.937"
| Part | Ingress Protection | 2nd Contact Gender | Cable Type | Length | Length | Style | 1st Connector Mounting Feature | Operating Temperature [Max] | Operating Temperature [Min] | 2nd Connector | 1st Connector Mounting Type | Frequency - Max [Max] | Overall Impedance | 2nd Connector Mounting Type | Cable Impedance | Features | 1st Connector | 1st Contact Gender | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IP67/IP68 | Female | RG-178 | 3.937 in | 100 mm | I-PEX MHF1 to TNC | Bulkhead - Front Side Nut | 90 °C | -40 C | I-PEX MHF1 Plug Right Angle | Panel Mount | 3 GHz | 50 Ohms | Free Hanging (In-Line) | 50 Ohms | IP Rated Unmated | TNC Jack | Female | Brown | |
IP67/IP68 | Female | RG-178 | 3.937 in | 100 mm | IPEX MHF1 to TNC | Bulkhead - Front Side Nut | 90 °C | -40 C | IPEX MHF1 Plug Right Angle | Panel Mount | 3 GHz | 50 Ohms | Free Hanging (In-Line) | 50 Ohms | IP Rated Unmated | TNC Jack | Female | Brown | |
IP67/IP68 | Female | RG-178 | 5.906 in | 150 mm | I-PEX MHF1 to TNC | Bulkhead - Front Side Nut | 90 °C | -40 C | I-PEX MHF1 Plug Right Angle | Panel Mount | 3 GHz | 50 Ohms | Free Hanging (In-Line) | 50 Ohms | IP Rated Unmated | TNC Jack | Female | Brown | |
IP67/IP68 | Female | RG-178 | 5.906 in | 150 mm | IPEX MHF1 to TNC | Bulkhead - Front Side Nut | 90 °C | -40 C | IPEX MHF1 Plug Right Angle | Panel Mount | 3 GHz | 50 Ohms | Free Hanging (In-Line) | 50 Ohms | IP Rated Unmated | TNC Jack | Female | Brown |
