APDA3020 Series

Catalog

LED ORANGE CLEAR 2SMD R/A

Part	Lens Color	Height (Max) [Max] [z]	Configuration	Mounting Type	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Wavelength - Dominant	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Supplier Device Package	Package / Case	Lens Size [diameter]	Current - Test	Millicandela Rating	Lens Style	Lens Transparency	Color	Current - DC Forward (If) (Max)	Wavelength	Orientation [custom]	Radiant Intensity (Ie) Min @ If [Min]	Type	Operating Temperature [Max]	Operating Temperature [Min]
Kingbright APDA3020LSECK/J4-PF	Colorless	2 mm	Standard	Right Angle Surface Mount	1.8 V	611 nm	605 nm	3 mm	2.8 mm	10 °	2-SMD	2-SMD No Lead	1.9 mm Dia	2 mA	1000 mcd	Round with Domed Top	Clear
Kingbright APDA3020LVBC/D	Colorless	2 mm	Standard	Right Angle Surface Mount	2.65 V	465 nm	470 nm	3 mm	2.8 mm	10 °	2-SMD	2-SMD No Lead	1.9 mm Dia	2 mA	150 mcd	Round with Domed Top	Clear	Blue
Kingbright APDA3020SYCK/J3-PF	Colorless	2 mm	Standard	Right Angle Surface Mount	2 V	590 nm	590 nm	3 mm	2.8 mm	10 °	SMD	2-SMD No Lead	1.9 mm Dia	20 mA	3000 mcd	Round with Domed Top	Clear	Yellow
Kingbright APDA3020VBC/D	Colorless	2 mm	Standard	Right Angle Surface Mount	3.3 V	465 nm	470 nm	3 mm	2.8 mm	10 °	SMD	2-SMD No Lead	1.9 mm Dia	20 mA	800 mcd	Round with Domed Top	Clear	Blue

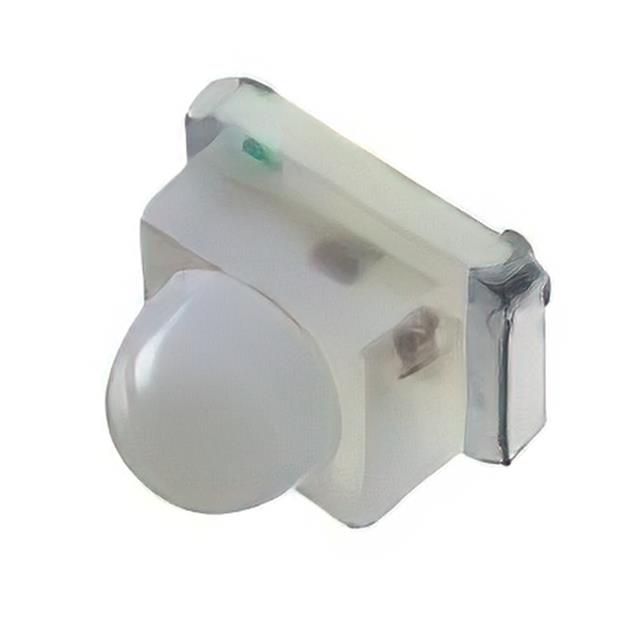

Kingbright APDA3020F3C-P22				Right Angle Surface Mount						10 °		2-SMD No Lead							50 mA	940 nm	Side View	5 mW/sr	Infrared (IR)	85 °C	-40 C
Kingbright APDA3020SECK/J4-PF	Colorless	2 mm	Standard	Right Angle Surface Mount	2.2 V	611 nm	605 nm	3 mm	2.8 mm	10 °	SMD	2-SMD No Lead	1.9 mm Dia	20 mA	4500 mcd	Round with Domed Top	Clear
Kingbright APDA3020LSYCK/J3-PF	Colorless	2 mm	Standard	Right Angle Surface Mount	1.85 V	590 nm	590 nm	3 mm	2.8 mm	10 °	2-SMD	2-SMD No Lead	1.9 mm Dia	2 mA	500 mcd	Round with Domed Top	Clear	Yellow

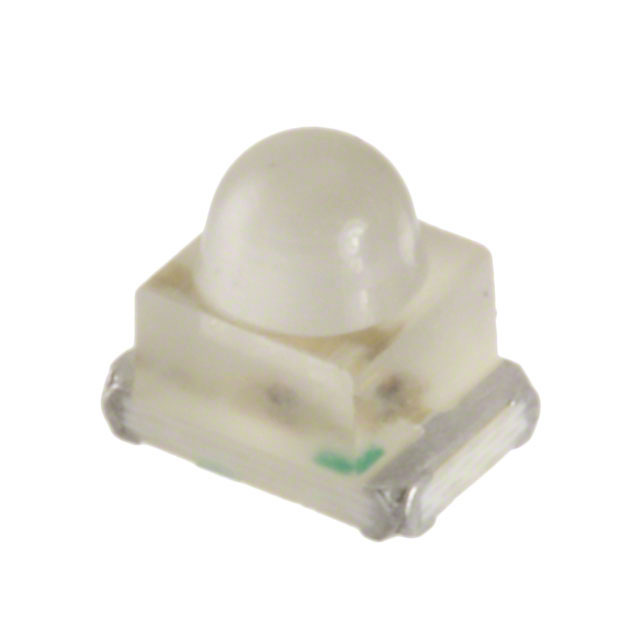

Kingbright APDA3020SECK/J3-PF	Colorless	2 mm	Standard	Right Angle Surface Mount	2.2 V	640 nm	625 nm	3 mm	2.8 mm	10 °	SMD	2-SMD No Lead	1.9 mm Dia	20 mA	3800 mcd	Round with Domed Top	Clear	Red

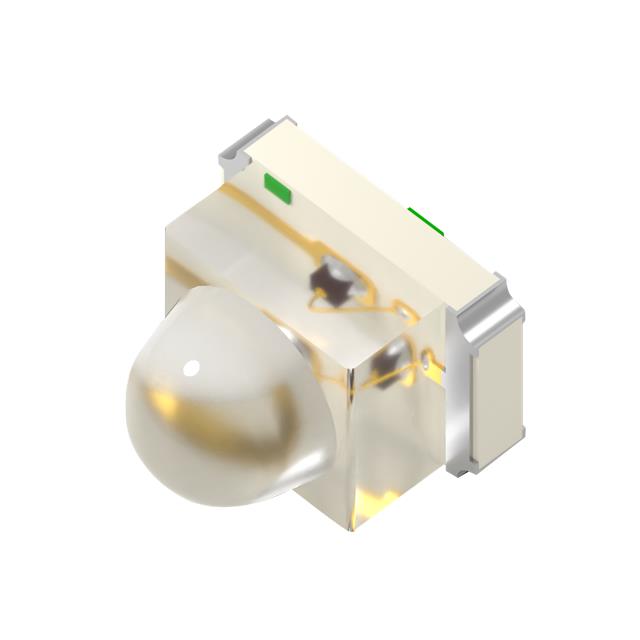

Kingbright APDA3020LSECK/J3-PF	Colorless	2 mm	Standard	Right Angle Surface Mount	1.8 V	640 nm	625 nm	3 mm	2.8 mm	10 °	2-SMD	2-SMD No Lead	1.9 mm Dia	2 mA	500 mcd	Round with Domed Top	Clear	Red
Kingbright APDA3020LZGCK	Colorless	2 mm	Standard	Right Angle Surface Mount	2.65 V	515 nm	525 nm	3 mm	2.8 mm	10 °	2-SMD	2-SMD No Lead	1.9 mm Dia	2 mA	600 mcd	Round with Domed Top	Clear	Green
