Ksr0D0 Series Series

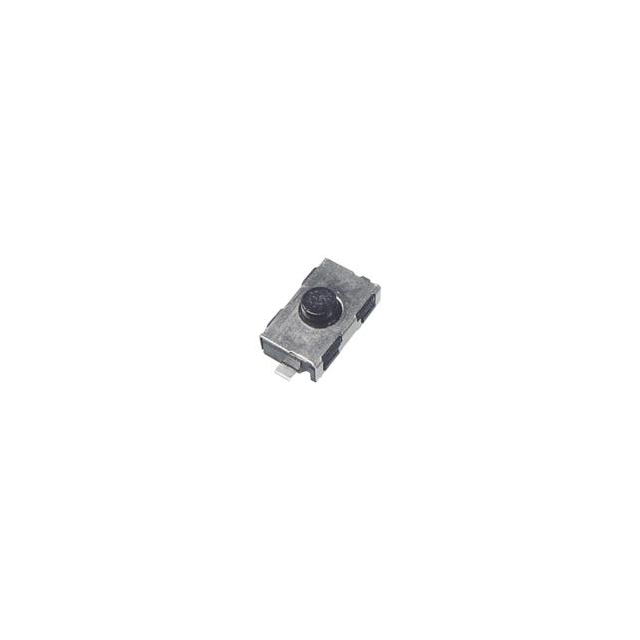

KSR2D3MGLFG

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

KSR2D3MGLFG

Part	Switch Travel	Actuator Height off PCB, Vertical [z]	Mechanical Life	Switch Function	Mounting Type	Actuator Orientation	Termination Style	Actuator Type	Contact Rating @ Voltage	Outline [x]	Outline [y]	Illumination	Operating Force	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel [custom]
Littelfuse/Commercial Vehicle Products KSR2M3GLFG	0.19 mm	2.5 mm	100000 Cycles	Off-Mom	Surface Mount	Top Actuated	Gull Wing	Standard	0.01 A 32 VDC	6 mm	3.8 mm	Non-Illuminated	80 gf	SPST-NO	125 °C	-40 °C
Littelfuse/Commercial Vehicle Products KSR2D3MGLFG		2.5 mm	100000 Cycles	Off-Mom	Surface Mount	Top Actuated	Gull Wing	Standard	0.01 A 32 VDC	6 mm	3.8 mm	Non-Illuminated	153 gf	SPST-NO	125 °C	-40 °C	0.3 mm

Catalog

KSR2D3MGLFG

Key Features

• Gold contacts

• G terminations

• Soft actuator

Description

C&K’s KSR D series switches are long-lasting and compact, featuring gold contacts, G terminations and a soft actuator. Engineered for use in the automotive, industrial electronics and medical equipment industries, KSR D switches give designers a high-quality switch that fits in their most innovative products.
