ECQ-E4183 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 0.018UF 10% 400VDC RAD

Part	Tolerance	Package / Case	Mounting Type	Dielectric Material	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - DC	Capacitance	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]
Panasonic Electronic Components ECQ-E4183KFW	10 %	Radial	Through Hole	Polyester Metallized	PC Pins	-40 C	105 ░C	0.492 in	12.5 mm	General Purpose	10.3 mm	4.4 mm	0.406 in	0.173 in	400 V	0.018 µF	0.295 in	7.5 mm
Panasonic Electronic Components ECQ-E4183KZ	10 %	Radial	Through Hole	Polyester Metallized	PC Pins	-40 C	85 °C	9 mm		DC Filtering DC Link DV/DT High Frequency High Pulse Switching	13.5 mm	5 mm	0.531 in	0.197 "	400 V	0.018 µF	0.413 in	10.5 mm	0.354 in

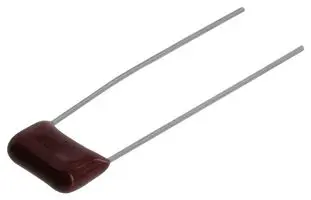

Panasonic Electronic Components ECQ-E4183JF	5 %	Radial	Through Hole	Polyester Metallized	PC Pins	-40 C	105 ░C	8.5 mm		General Purpose	10.3 mm	4.4 mm	0.406 in	0.173 in	400 V	0.018 µF	0.295 in	7.5 mm	0.335 "
Panasonic Electronic Components ECQ-E4183JFB	5 %	Radial	Through Hole	Polyester Metallized	PC Pins	-40 C	105 ░C	0.492 in	12.5 mm	General Purpose	10.3 mm	4.4 mm	0.406 in	0.173 in	400 V	0.018 µF	0.295 in	7.5 mm
Panasonic Electronic Components ECQ-E4183KF9	10 %	Radial	Through Hole	Polyester Metallized	PC Pins	-40 C	105 ░C	0.492 in	12.5 mm	General Purpose	10.3 mm	4.4 mm	0.406 in	0.173 in	400 V	0.018 µF	0.197 "	5 mm
Panasonic Electronic Components ECQ-E4183JF9	5 %	Radial	Through Hole	Polyester Metallized	PC Pins	-40 C	105 ░C	0.492 in	12.5 mm	General Purpose	10.3 mm	4.4 mm	0.406 in	0.173 in	400 V	0.018 µF	0.197 "	5 mm
