TLHO-88G Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

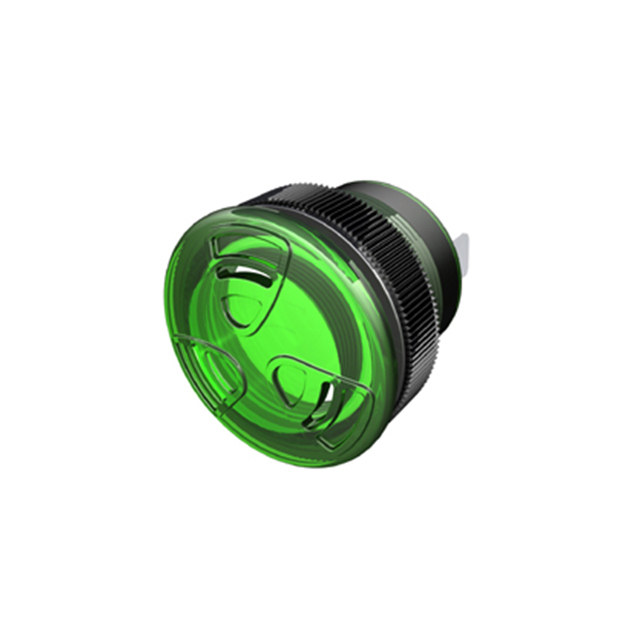

BUZZER 33MM PNL MNT
| Part | Sound Pressure Level (SPL) | Termination | Termination | Termination | Port Location | Operating Mode | Approval Agency | Input Type | Voltage Range [Max] | Voltage Range [Min] | Current - Supply [Min] [x] | Current - Supply [Max] [x] | Frequency | Driver Circuitry | Mounting Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Ingress Protection | Size / Dimension [diameter] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | 103 dB | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | Top | Whooping | UL UR | DC | 30 V | 9 V | 50 mA | 110 mA | 2.9 kHz | Indicator Internally Driven | Panel Mount | 29.97 mm | 1.18 in | IP68 - Dust Tight Waterproof | 1.299 in | 33 mm |
 Floyd Bell Inc | 103 dB | 0.25 " | Quick Connect Tab | 6.35 mm | Top | Whooping | UL UR | DC | 30 V | 9 V | 50 mA | 110 mA | 2.9 kHz | Indicator Internally Driven | Panel Mount | 29.97 mm | 1.18 in | IP68 - Dust Tight Waterproof | 1.3 in | 33.02 mm |
