725-040 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 40POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Gender	Number of Rows [custom]	Contact Type	Contact Material	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Mounting Type	Read Out	Card Thickness [Max]	Card Thickness [Min]	Color	Number of Positions	Termination	Card Type	Number of Positions/Bay/Row	Termination Rows	Number of Positions/Bay/Row [custom]	Number of Rows

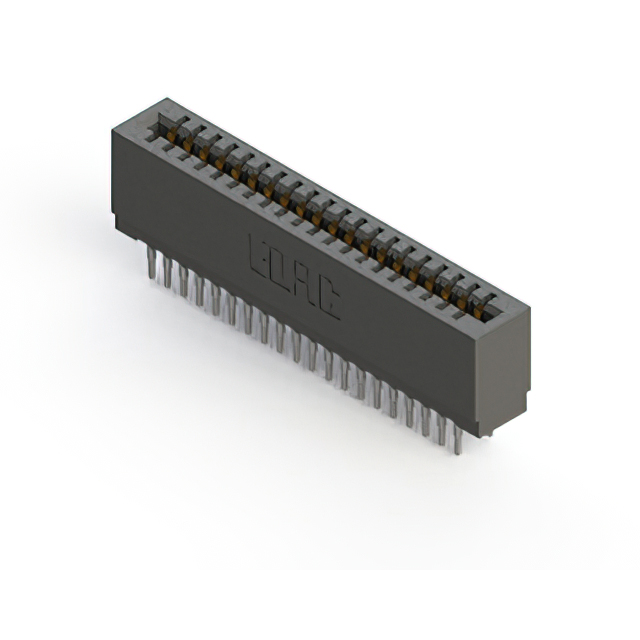

EDAC Inc. 725-040-545-201	2	Polyester Thermoplastic	Female	2	Cantilever	Copper Alloy	0.1 "	2.54 mm	30 Áin	0.76 Ám	-40 C	105 ░C	Gold	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	40	Press-Fit Wire Wrap	Non Specified - Dual Edge	20 Bay/Row

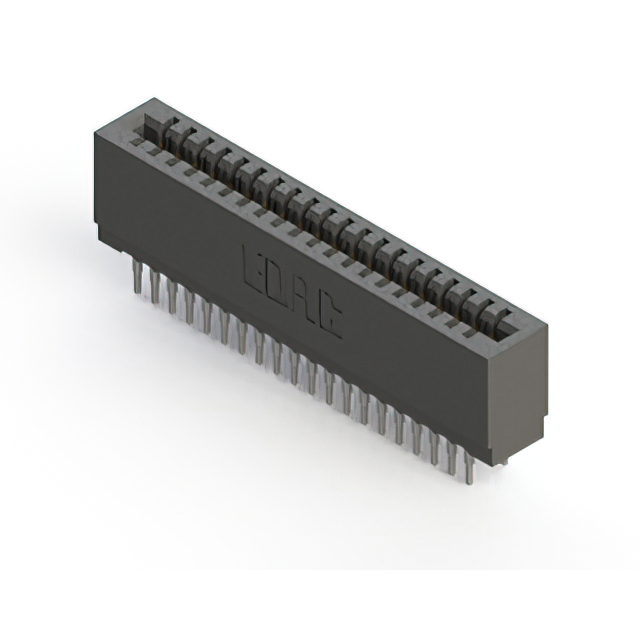

EDAC Inc. 725-040-522-201	2	Polyester Thermoplastic	Female	2	Cantilever	Copper Alloy	0.1 "	2.54 mm	30 Áin	0.76 Ám	-40 C	105 ░C	Gold	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	40	Press-Fit	Non Specified - Dual Edge	20 Bay/Row
EDAC Inc. 725-040-540-201	2	Polyester Thermoplastic	Female	2	Cantilever	Copper Alloy	0.1 "	2.54 mm	30 Áin	0.76 Ám	-40 C	105 ░C	Gold	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	40	Press-Fit Wire Wrap	Non Specified - Dual Edge	20 Bay/Row
EDAC Inc. 725-040-525-101		Polyester Thermoplastic	Female		Cantilever	Copper Alloy	0.1 "	2.54 mm	30 Áin	0.76 Ám	-40 C	105 ░C	Gold	Through Hole	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	40	Press-Fit	Non Specified - Single Edge		1	40	1

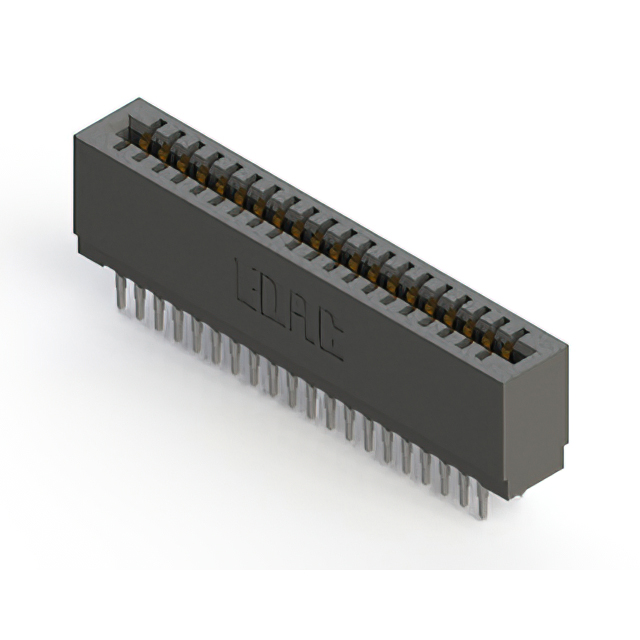

EDAC Inc. 725-040-525-201	2	Polyester Thermoplastic	Female	2	Cantilever	Copper Alloy	0.1 "	2.54 mm	30 Áin	0.76 Ám	-40 C	105 ░C	Gold	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	40	Press-Fit	Non Specified - Dual Edge	20 Bay/Row

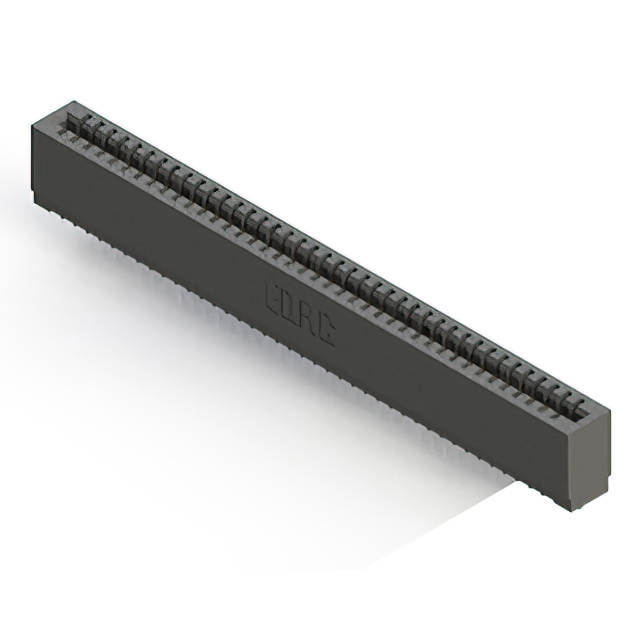

EDAC Inc. 725-040-520-101		Polyester Thermoplastic	Female		Cantilever	Copper Alloy	0.1 "	2.54 mm	30 Áin	0.76 Ám	-40 C	105 ░C	Gold	Through Hole	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	40	Press-Fit	Non Specified - Single Edge		1	40	1

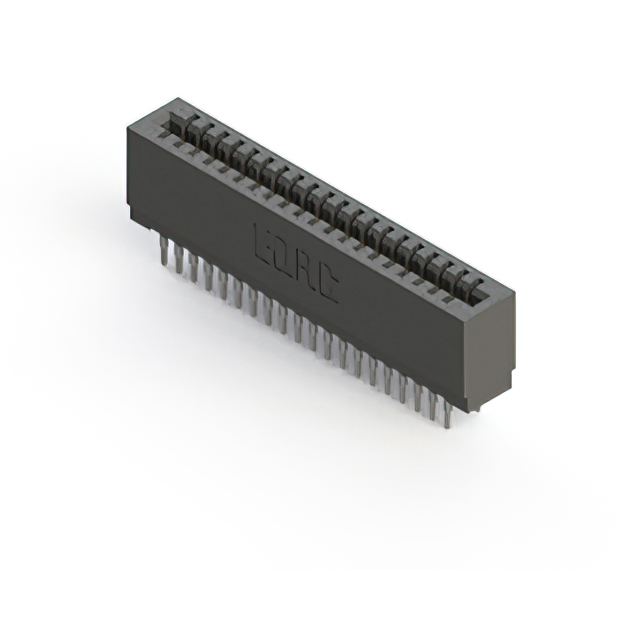

EDAC Inc. 725-040-541-201	2	Polyester Thermoplastic	Female	2	Cantilever	Copper Alloy	0.1 "	2.54 mm	30 Áin	0.76 Ám	-40 C	105 ░C	Gold	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	40	Press-Fit Wire Wrap	Non Specified - Dual Edge	20 Bay/Row
EDAC Inc. 725-040-560-201	2	Polyester Thermoplastic	Female	2	Cantilever Make Before Break	Copper Alloy	0.1 "	2.54 mm	30 Áin	0.76 Ám	-40 C	105 ░C	Gold	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	40	Press-Fit	Non Specified - Dual Edge	20 Bay/Row
