C146 10G016 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN HOOD SIDE ENTRY SZE16 PG21

Part	Connector Type	Lock Location	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Size	Ingress Protection	Thread Size	Style	Features
Amphenol Tuchel Industrial C146 10G016 500 1	Hood	Locking Clip (2) on Base Bottom	93.5 mm	1.693 "	62 mm	43 mm	2.441 "	3.681 in	Aluminum Alloy Die Cast	-40 C	100 °C	E16	IP65 - Dust Tight Water Resistant	PG21	Side Entry

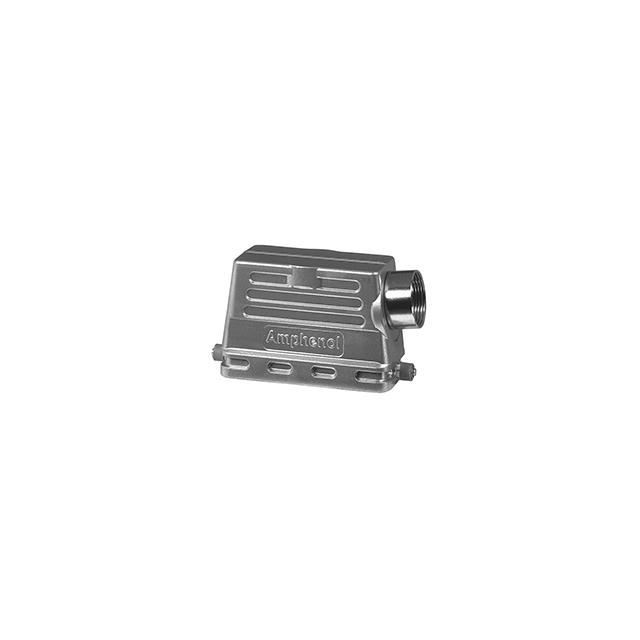

Amphenol Tuchel Industrial C146 10G016 506 8	Hood	Locking Clip (1) on Base Bottom	93.5 mm	1.693 "	76 mm	43 mm	2.992 in	3.681 in	Aluminum Die Cast	-40 C	100 °C	E16	IP65 - Dust Tight Water Resistant	PG21	Side Entry
Amphenol Tuchel Industrial C146 10G016 507 1	Hood	Locking Clip (1) on Base Bottom	93.5 mm	1.693 "	62 mm	43 mm	2.441 "	3.681 in	Aluminum Alloy Die Cast	-40 C	100 °C	E16	IP65 - Dust Tight Water Resistant	PG29	Side Entry

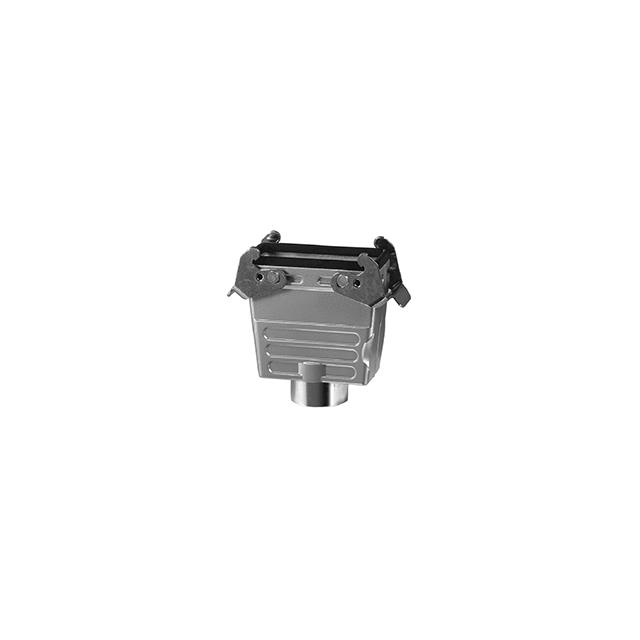

Amphenol Tuchel Industrial C146 10G016 802 8	Hood - Coupling	Locking Clip (2) on Hood Top	93.5 mm	1.693 "	76 mm	43 mm	2.992 in	3.681 in	Aluminum Die Cast	-40 C	100 °C	E16	IP65 - Dust Tight Water Resistant	PG21	Bottom Entry Top or Bottom Entry	Cable to Cable

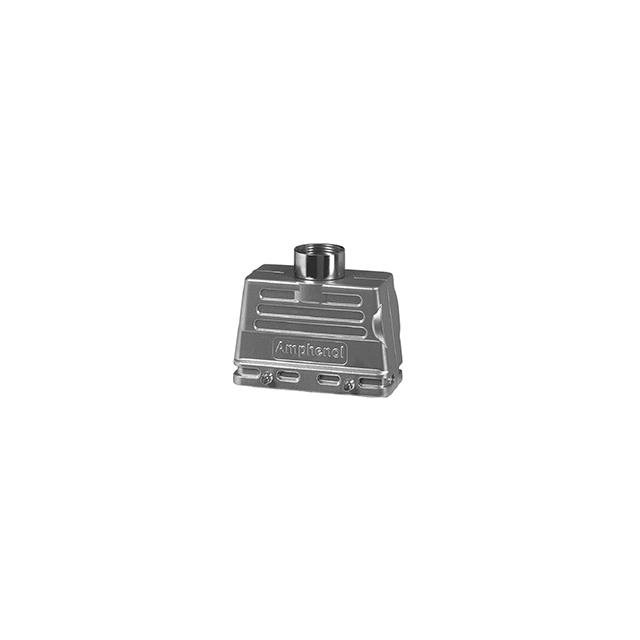

Amphenol Tuchel Industrial C146 10G016 601 1	Hood	Locking Clip (2) on Base Bottom	93.5 mm	1.693 "	62 mm	43 mm	2.441 "	3.681 in	Aluminum Alloy Die Cast	-40 C	100 °C	E16	IP65 - Dust Tight Water Resistant	PG29	Top Entry

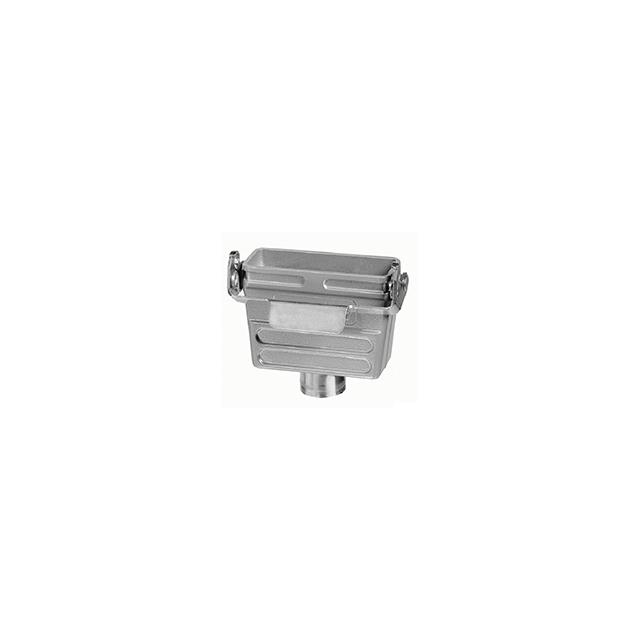

Amphenol Tuchel Industrial C146 10G016 804 4	Hood - Coupling	Locking Clip (1) on Hood Top	79 mm	1.161 in	52.5 mm	29.5 mm	2.067 in	3.11 "	Aluminum Alloy Die Cast	-40 C	100 °C	A16	IP65 - Dust Tight Water Resistant	PG16	Bottom Entry Top or Bottom Entry	Cable to Cable
Amphenol Tuchel Industrial C146 10G016 600 1	Hood	Locking Clip (2) on Base Bottom	93.5 mm	1.693 "	62 mm	43 mm	2.441 "	3.681 in	Aluminum Alloy Die Cast	-40 C	100 °C	E16	IP65 - Dust Tight Water Resistant	PG21	Top Entry

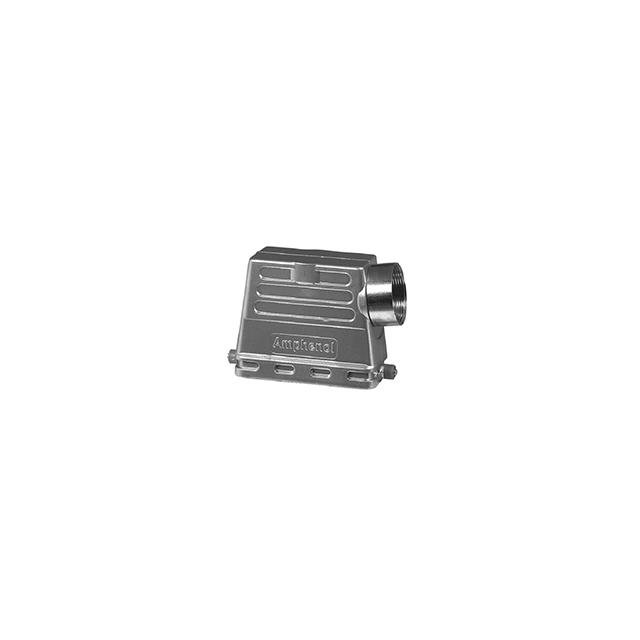

Amphenol Tuchel Industrial C146 10G016 507 8	Hood	Locking Clip (1) on Base Bottom	93.5 mm	1.693 "	76 mm	43 mm	2.992 in	3.681 in	Aluminum Die Cast	-40 C	100 °C	E16	IP65 - Dust Tight Water Resistant	PG29	Side Entry

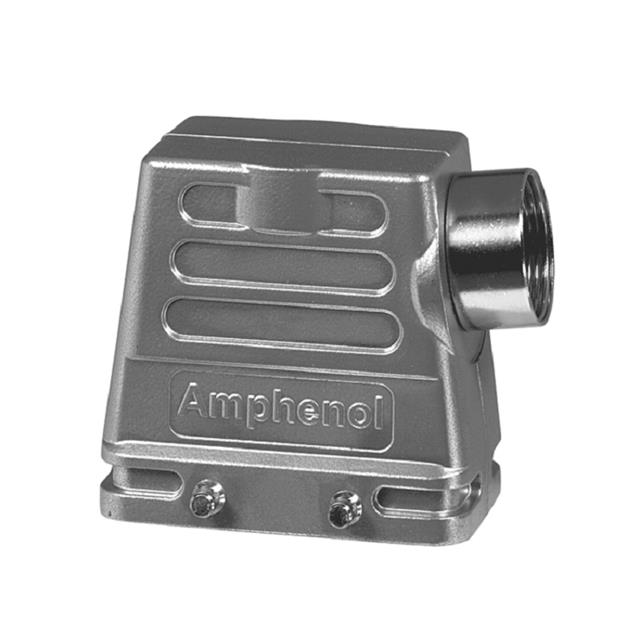

Amphenol Tuchel Industrial C146 10G016 501 8	Hood	Locking Clip (2) on Base Bottom	93.5 mm	1.693 "	76 mm	43 mm	2.992 in	3.681 in	Aluminum Die Cast	-40 C	100 °C	E16	IP65 - Dust Tight Water Resistant	PG29	Side Entry

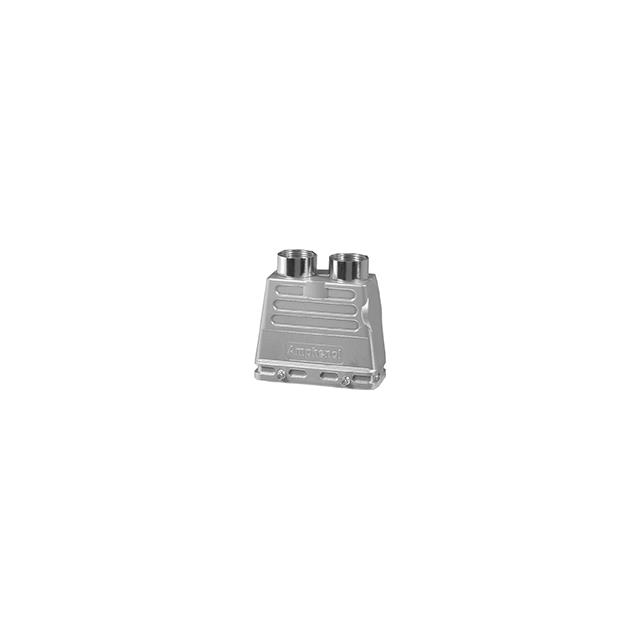

Amphenol Tuchel Industrial C146 10G016 902 8	Hood	Locking Clip (2) on Base Bottom	93.5 mm	1.693 "	76 mm	43 mm	2.992 in	3.681 in	Aluminum Die Cast	-40 C	100 °C	E16	IP65 - Dust Tight Water Resistant	PG21	Top Entry Dual
