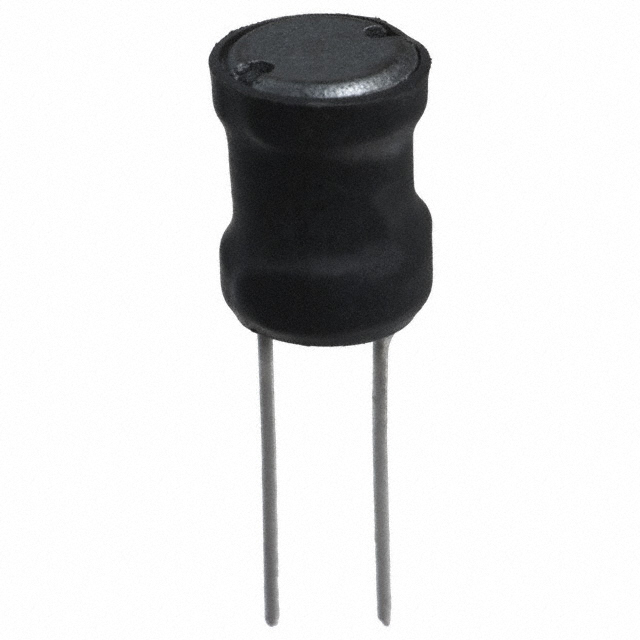

6000 Series

Catalog

FIXED IND 1UH 10A 13 MOHM TH

Part	Frequency - Self Resonant	Inductance Frequency - Test	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR) [Max]	Shielding	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Mounting Type	Type	Height - Seated (Max)	Height - Seated (Max) [Max]	Material - Core	Current Rating (Amps)	Q @ Freq	DC Resistance (DCR)	Q @ Freq [custom]
Bourns Inc. 6000-1R0M	150 MHz	7.96 MHz	7.96 MHz	20	13 mOhm	Unshielded	9 mm	0.354 in	Radial Vertical Cylinder	1 µH	-55 C	105 ░C	20 %	Through Hole	Drum Core Wirewound	12.2 mm	0.48 in	Ferrite	10 A
Bourns Inc. 6000-330K-RC	7.8 MHz	2.52 MHz			90 mOhm	Unshielded	9 mm	0.354 in	Radial Vertical Cylinder	33 µH	-55 C	105 ░C	10 %	Through Hole	Drum Core Wirewound	12.2 mm	0.48 in	Ferrite	2.05 A	2.52 MHz 30
Bourns Inc. 6000-150K-RC	12 MHz	2.52 MHz				Unshielded	9 mm	0.354 in	Radial Vertical Cylinder	15 µH	-55 C	105 ░C	10 %	Through Hole	Drum Core Wirewound	12.2 mm	0.48 in	Ferrite	2.9 A		56 mOhm
Bourns Inc. 6000-680K-RC	4.9 MHz	2.52 MHz			210 mOhm	Unshielded	9 mm	0.354 in	Radial Vertical Cylinder	68 µH	-55 C	105 ░C	10 %	Through Hole	Drum Core Wirewound	12.2 mm	0.48 in	Ferrite	1.36 A	2.52 MHz 30
Bourns Inc. 6000-471K	1.9 MHz	0.796 MHz		20	1.1 Ohm	Unshielded	9 mm	0.354 in	Radial Vertical Cylinder	470 µH	-55 C	105 ░C	10 %	Through Hole	Drum Core Wirewound	12.2 mm	0.48 in	Ferrite	0.68 A			796 kHz
Bourns Inc. 6000-331K-RC	2.3 MHz	0.796 MHz		20	850 mOhm	Unshielded	9 mm	0.354 in	Radial Vertical Cylinder	330 µH	-55 C	105 ░C	10 %	Through Hole	Drum Core Wirewound	12.2 mm	0.48 in	Ferrite	780 mA			796 kHz
Bourns Inc. 6000-1R0M-RC	150 MHz	7.96 MHz	7.96 MHz	20	13 mOhm	Unshielded	9 mm	0.354 in	Radial Vertical Cylinder	1 µH	-55 C	105 ░C	20 %	Through Hole	Drum Core Wirewound	12.2 mm	0.48 in	Ferrite	10 A
Bourns Inc. 6000-120K	13 MHz	2.52 MHz			50 mOhm	Unshielded	9 mm	0.354 in	Radial Vertical Cylinder	12 µH	-55 C	105 ░C	10 %	Through Hole	Drum Core Wirewound	12.2 mm	0.48 in	Ferrite	3.1 A
Bourns Inc. 6000-560K-RC	5.4 MHz	2.52 MHz			180 mOhm	Unshielded	9 mm	0.354 in	Radial Vertical Cylinder	56 µH	-55 C	105 ░C	10 %	Through Hole	Drum Core Wirewound	12.2 mm	0.48 in	Ferrite	1.48 A	2.52 MHz 30
Bourns Inc. 6000-102K	1.3 MHz	252 kHz	252 kHz	20	2.9 Ohm	Unshielded	9 mm	0.354 in	Radial Vertical Cylinder	1 mH	-55 C	105 ░C	10 %	Through Hole	Drum Core Wirewound	12.2 mm	0.48 in	Ferrite	0.51 A
