VAOS-SP4 Series
Manufacturer: Visual Communications Company - VCC
Beta
⌘K

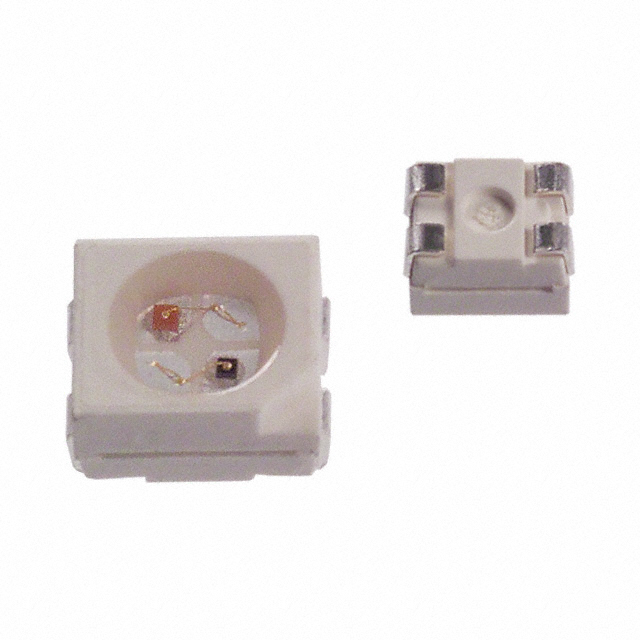

LED RGB CLEAR 4PLCC SMD
| Part | Mounting Type | Lens Style | Lens Color | Size / Dimension [y] | Size / Dimension [x] | Voltage - Forward (Vf) (Typ) [custom] | Voltage - Forward (Vf) (Typ) [custom] | Voltage - Forward (Vf) (Typ) [custom] | Wavelength - Dominant | Wavelength - Peak | Supplier Device Package | Millicandela Rating | Configuration | Viewing Angle | Current - Test | Lens Size [diameter] | Package / Case | Height (Max) [z] | Lens Transparency | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Visual Communications Company - VCC | Surface Mount | Round with Flat Top | Colorless | 2.8 mm | 3.2 mm | 3.4 V | 3.4 V | 2 V | 470 nm 525 nm 626 nm | 468 nm 518 nm 632 nm | 4-PLCC | 126 mcd 199 mcd 315 mcd | Common Anode | 120 ° | 20mA Blue 20mA Green 20mA Red | 2.4 mm Dia | 4-PLCC | 2.1 mm | Clear | Blue Green Red |
