MS156 Series

Catalog

RF SHIELD 0.417"X0.614" SOLDER

Part	Height - Overall [z]	Height - Overall [z]	Width - Overall [x]	Width - Overall [x]	Type	Length - Overall	Length - Overall	Mounting Type	Ventilation	Length - Overall [x]	Length - Overall [x]	Width - Overall	Width - Overall

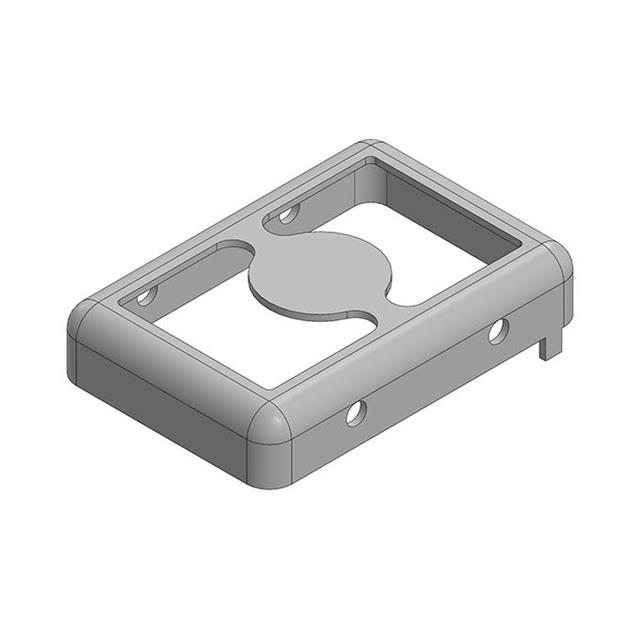

Masach Tech Ltd. MS156-10F-NS	0.118 in	3 mm	10.6 mm	0.417 "	Frame	0.614 in	15.6 mm	Solder

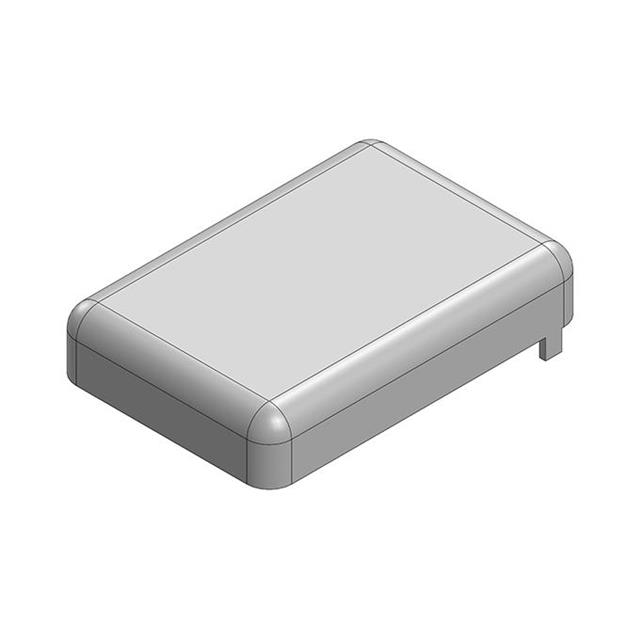

Masach Tech Ltd. MS156-10S-NS	0.118 in	3 mm	10.6 mm	0.417 "	Shield 1-Piece	0.614 in	15.6 mm	Solder	Non-Vented
Masach Tech Ltd. MS156-10F	0.118 in	3 mm	10.6 mm	0.417 "	Frame	0.614 in	15.6 mm	Solder
Masach Tech Ltd. MS156-10C	0.102 in	2.6 mm			Cover			Snap Fit	Non-Vented	0.63 in	16 mm	0.433 "	11 mm

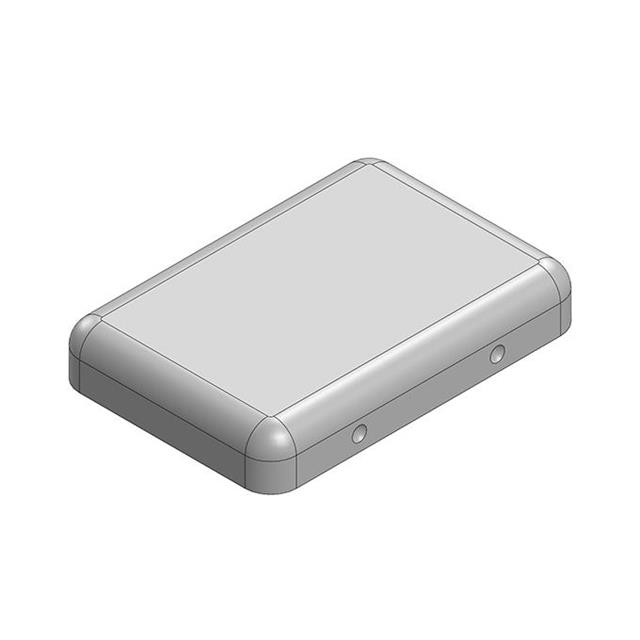

Masach Tech Ltd. MS156-10C-NS	0.102 in	2.6 mm			Cover			Snap Fit	Non-Vented	0.63 in	16 mm	0.433 "	11 mm
