AUB0412 Series
Manufacturer: Delta Electronics
Beta
⌘K

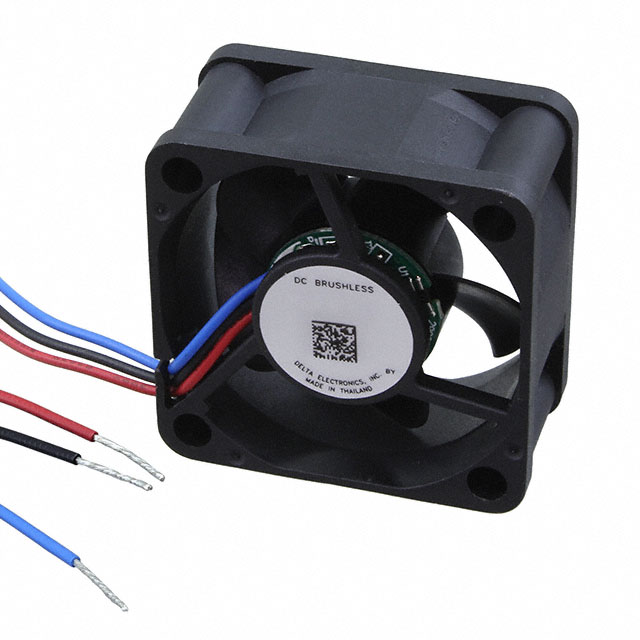

DC FAN AXIAL SLEEVE BEARING 12V 10.8V TO 13.2V 9.56CFM 26.5DB 40 X 40 X 20MM BOX
| Part | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Current Rating (Amps) | Material - Blade | Static Pressure | Static Pressure | Noise | Air Flow | Air Flow | Voltage - Rated | Bearing Type | Features | Width [y] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Fan Type | RPM | Power (Watts) | Size / Dimension [x] | Size / Dimension [z] | Weight | Weight | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | 10.8 VDC | 13.2 VDC | 80000 Hrs | 110 mA | Plastic | 58.8 Pa | 0.236 in H2O | 26.5 dB | 9.6 CFM | 0.269 m³/min | 12 VDC | Sleeve | Locked Rotor Protection Speed Sensor (Tach) | 20 mm | -20 ░C | 90 °C | -4 °F | 90 °C | 3 Wire Leads | Tubeaxial | 7500 RPM | 1.32 W | 40 mm | 40 mm | 26.31 g | 0.058 lb | |
 Delta Electronics | Plastic | 5 VDC | 13.8 VDC | 40 °C 50000 Hrs | Plastic | 41.3 Pa | 0.166 in H2O | 22 dB(A) | 8 CFM | 0.224 mł/min | 12 VDC | Superflo | 20 mm | -10 °C | 60 °C | 2 Wire Leads | Tubeaxial | 6200 RPM | 960 mW | 40 mm | 40 mm | 33.11 g | 0.073 lb | cURus VDE |
