833-024 Series
Manufacturer: EDAC Inc.
Beta
⌘K

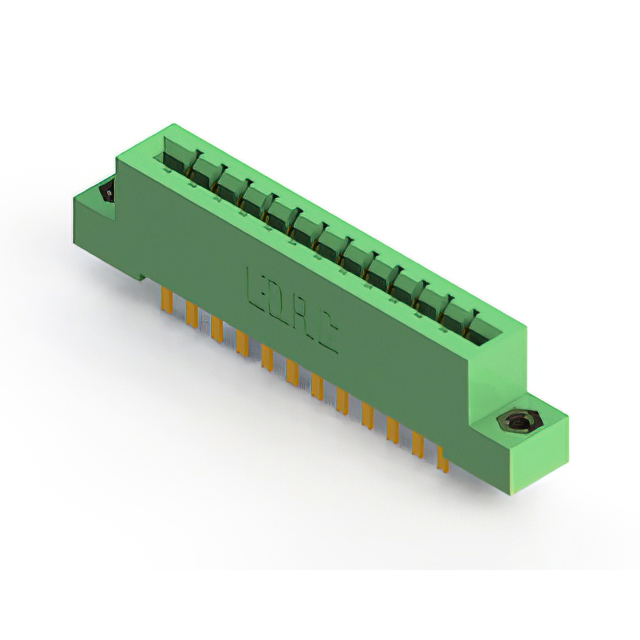

CONN EDGE SGL FMALE 24POS 0.156
| Part | Termination Rows | Material - Insulation | Number of Positions/Bay/Row | Card Type | Number of Rows | Contact Finish | Number of Positions | Termination | Read Out | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Type | Gender | Contact Material | Pitch | Pitch | Color | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Termination Rows [custom] | Number of Rows [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 24 | Non Specified - Single Edge | 1 | Gold | 24 | Solder | Single | 0.25 Ám | 10 Áin | Right Angle Through Hole | Cantilever | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 24 | Non Specified - Single Edge | 1 | Gold | 24 | Solder Eyelet(s) | Single | 0.25 Ám | 10 Áin | Through Hole | Cantilever | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | Flush Mount M3 Threaded Insert Top Opening | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 12 | Non Specified - Dual Edge | Gold | 24 | Wire Wrap | Dual | 0.25 Ám | 10 Áin | Through Hole | Cantilever | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | M3 Threaded Insert Top Mount Opening | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 2 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 12 | Non Specified - Dual Edge | Gold | 24 | Solder | Dual | 0.25 Ám | 10 Áin | Through Hole | Cantilever | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 2 | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 24 | Non Specified - Single Edge | 1 | Gold | 24 | Wire Wrap | Single | 0.25 Ám | 10 Áin | Through Hole | Cantilever | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 12 | Non Specified - Dual Edge | Gold | 24 | Solder | Dual | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | Cantilever | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 2 | Card Extender | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 24 | Non Specified - Single Edge | 1 | Gold | 24 | Solder | Single | 0.25 Ám | 10 Áin | Through Hole | Cantilever | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 12 | Non Specified - Dual Edge | Gold | 24 | Solder | Dual | 0.25 Ám | 10 Áin | Through Hole | Cantilever | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | Flush Mount M3 Threaded Insert Top Opening | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 2 | |||||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 24 | Non Specified - Single Edge | 1 | Gold | 24 | Solder | Single | 0.25 Ám | 10 Áin | Right Angle Through Hole | Cantilever | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 12 | Non Specified - Dual Edge | Gold | 24 | Solder | Dual | 0.25 Ám | 10 Áin | Through Hole | Cantilever | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | 4-40 Threaded Insert Top Mount Opening | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 2 |
