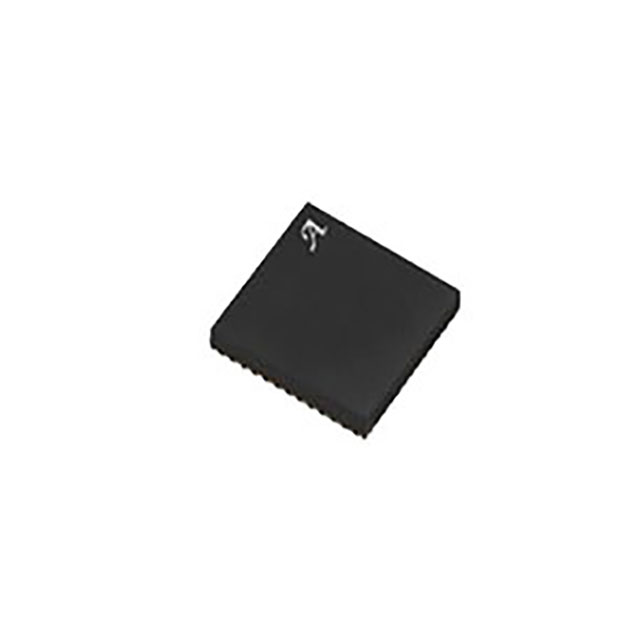

A80606 Series
Manufacturer: Allegro MicroSystems
Beta
⌘K

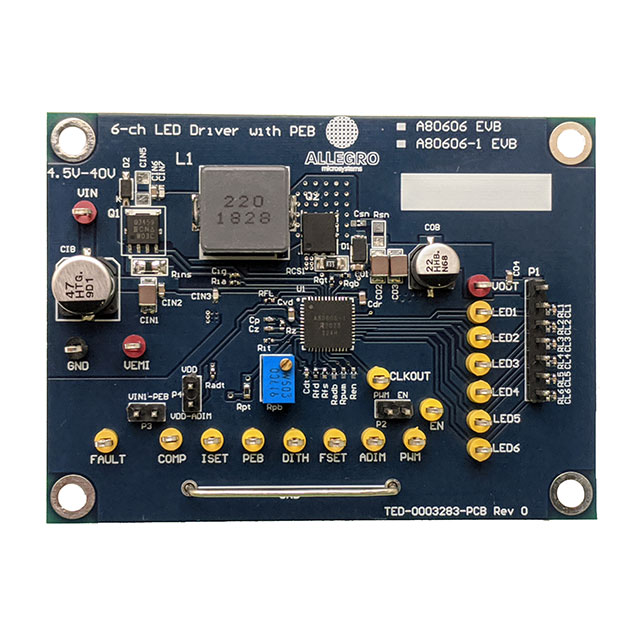

EVAL BOARD FOR A80606
| Part | Supplied Contents | Outputs and Type | Utilized IC / Part | Contents | Current - Output / Channel | Voltage - Input [Max] | Voltage - Input [Min] | Features | Applications | Voltage - Output [Min] | Voltage - Output [Max] | Number of Outputs | Grade | Topology | Voltage - Supply (Max) [Max] | Internal Switch(s) | Supplier Device Package | Voltage - Supply (Min) [Min] | Dimming | Frequency [Max] | Frequency [Min] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Allegro MicroSystems | Board(s) | 6 Non-Isolated Outputs | A80606 | Board(s) | 180 mA | 40 V | 4.5 V | Dimmable | ||||||||||||||||||
 Allegro MicroSystems | 180 mA | Backlight | 1.06 V | 40 V | 6 | Automotive | SEPIC Step-Up (Boost) | 40 V | 48-QFN-EP (7x7) | 4.5 V | Analog PWM | 2.3 MHz | 260 kHz | 48-VFQFN Exposed Pad | 125 °C | -40 °C | Surface Mount | DC DC Regulator | ||||||||
 Allegro MicroSystems | Board(s) | 6 Non-Isolated Outputs | A80606 | Board(s) | 180 mA | 40 V | 4.5 V | Dimmable |
