QTLP650 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

LED YELLOW DIFFUSED 1206 SMD

Part	Lens Size [y]	Lens Size [x]	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Peak	Lens Transparency	Millicandela Rating	Color	Lens Style	Configuration	Mounting Type	Package / Case	Viewing Angle	Wavelength - Dominant	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Lens Color	Wavelength - Dominant	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Peak	Package / Case	Current - Test [custom]	Current - Test [custom]	Height (Max) [z]

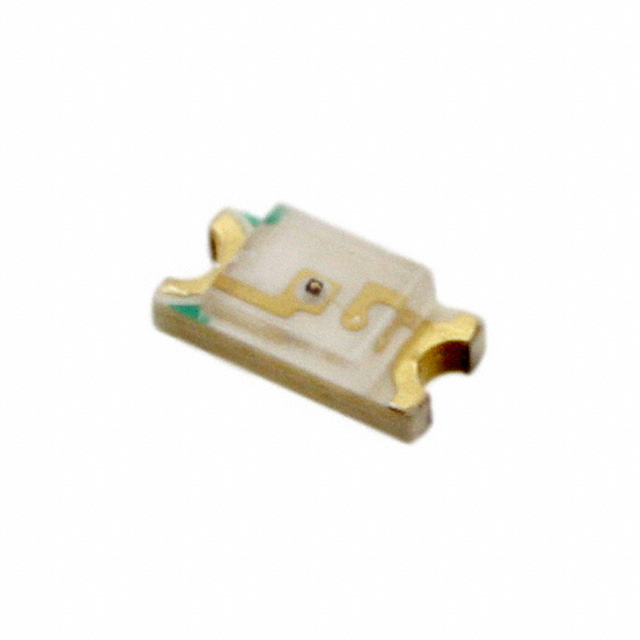

Everlight Electronics Co Ltd QTLP650D3TR	1.6 mm	2 mm	20 mA	1.6 mm	3.2 mm	585 nm	Diffused	8 mcd	Yellow	Rectangle with Flat Top	Standard	Surface Mount	1206 (3216 Metric)	140 °	590 nm	1206	2 V	1.3 mm
Everlight Electronics Co Ltd QTLP650C2TR	1.6 mm	2 mm	20 mA	1.6 mm	3.2 mm	635 nm	Clear	10 mcd	Red	Rectangle with Flat Top	Standard	Surface Mount	1206 (3216 Metric)	140 °	630 nm	1206	2 V	1.3 mm	Colorless
Everlight Electronics Co Ltd QTLP650CAGTR	1.6 mm	2 mm	20 mA	1.6 mm	3.2 mm	575 nm	Clear	30 mcd	Yellow-Green	Rectangle with Flat Top	Standard	Surface Mount	1206 (3216 Metric)	140 °	573 nm	1206	2 V	1.3 mm	Colorless
Everlight Electronics Co Ltd QTLP650CRTR	1.6 mm	2 mm	20 mA	1.6 mm	3.2 mm	630 nm	Clear	70 mcd	Red	Rectangle with Flat Top	Standard	Surface Mount	1206 (3216 Metric)	140 °	624 nm	1206	2 V	1.3 mm	Colorless

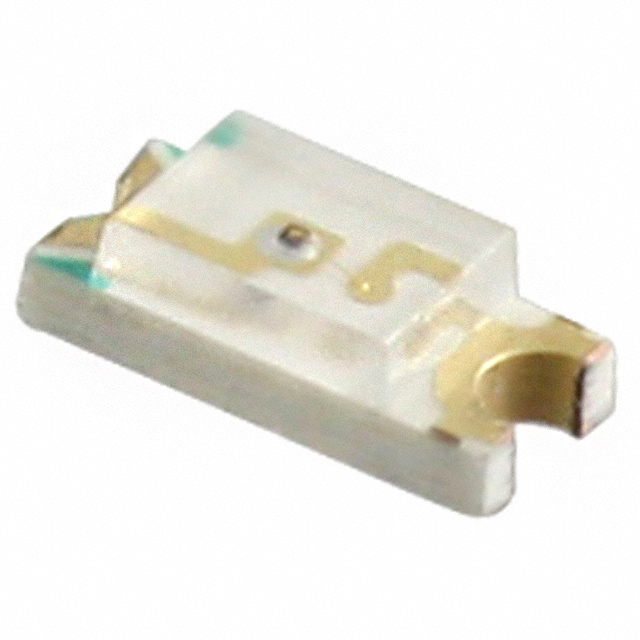

Everlight Electronics Co Ltd QTLP650C3TR	1.6 mm	2 mm	20 mA	1.6 mm	3.2 mm	585 nm	Clear	10 mcd	Yellow	Rectangle with Flat Top	Standard	Surface Mount	1206 (3216 Metric)	140 °	590 nm	1206	2 V	1.3 mm	Colorless
Everlight Electronics Co Ltd QTLP650CETR	1.6 mm	2 mm	20 mA	1.6 mm	3.2 mm	620 nm	Clear	70 mcd		Rectangle with Flat Top	Standard	Surface Mount	1206 (3216 Metric)	140 °	615 nm	1206	2 V	1.3 mm	Colorless
Everlight Electronics Co Ltd QTLP650C4TR	1.6 mm	2 mm	20 mA	1.6 mm	3.2 mm	565 nm	Clear	10 mcd	Green	Rectangle with Flat Top	Standard	Surface Mount	1206 (3216 Metric)	140 °	570 nm	1206	2.1 V	1.3 mm	Colorless

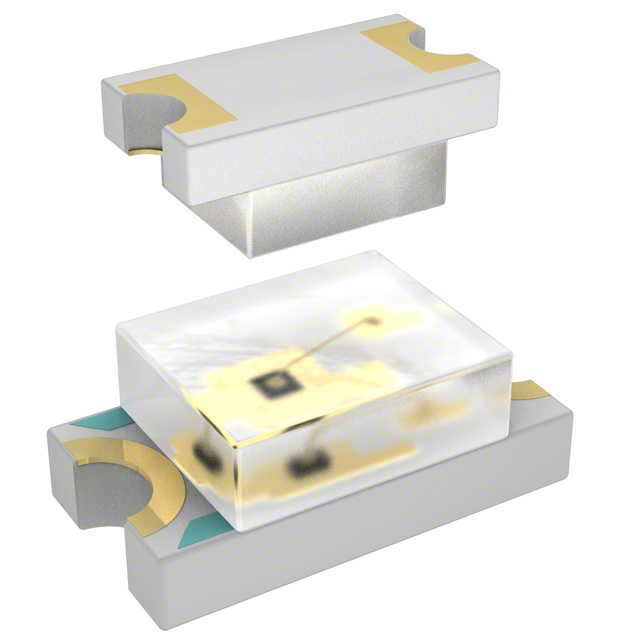

Everlight Electronics Co Ltd QTLP650C74TR	2.7 mm	2 mm					Clear		Green Red	Rectangle with Flat Top	Independent	Surface Mount	1210	140 °		1210	1.9 V 2 V		Colorless	570nm Green 645nm Red	6.5 mcd	15 mcd	565nm Green 660nm Red	3225 Metric	20 mA	20 mA	1.1 mm
Everlight Electronics Co Ltd QTLP650CRAGTR	2.7 mm	2 mm				575 nm 630 nm	Clear	15 mcd 35 mcd	Green Red	Rectangle with Flat Top	Independent	Surface Mount	1210	140 °		1210	2 V 2 V		Colorless	573nm Green 624nm Red				3225 Metric	20 mA	20 mA	1.1 mm
Everlight Electronics Co Ltd QTLP650C34TR	2.7 mm	2 mm	20 mA 20 mA			565 nm 585 nm	Clear	6.5 mcd 6.5 mcd	Green Yellow	Rectangle with Flat Top	Independent	Surface Mount	1210	140 °	570 nm 590 nm	1210	2 V 2 V		Colorless					3225 Metric			1.1 mm
