102898 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN UNSHROUDED HEADER HDR 3 POS 2.54MM PRESS FIT ST THRU-HOLE PACKAGE

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Material	Insulation Color	Contact Finish - Post	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Style	Contact Type	Connector Type	Current Rating (Amps)	Mounting Type	Shrouding	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Contact Finish - Mating	Termination	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions
TE Connectivity AMP Connectors 9-102898-0	2.54 µm	100 µin	Push-Pull	Copper Alloy	Black	Tin	1	-55 C	125 °C	Thermoplastic	Board to Board Cable	Male Pin	Header	3 A	Through Hole	Unshrouded	0.66 in	16.76 mm	UL94 V-0	Gold	Press-Fit Solder	0.1 "	2.54 mm	0.09 in	2.29 mm	6.35 mm	0.25 in	All	0.32 in	8.13 mm	Square	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 8-102898-4	2.54 µm	100 µin	Push-Pull	Copper Alloy	Black	Tin	1	-55 C	125 °C	Thermoplastic	Board to Board Cable	Male Pin	Header	3 A	Through Hole	Unshrouded	0.66 in	16.76 mm	UL94 V-0	Gold	Press-Fit Solder	0.1 "	2.54 mm	0.09 in	2.29 mm	6.35 mm	0.25 in	All	0.32 in	8.13 mm	Square	0.76 Ám	30 Áin	2
TE Connectivity AMP Connectors 1-102898-1	2.54 µm	100 µin	Push-Pull	Copper Alloy	Black	Tin-Lead	1	-55 C	125 °C	Thermoplastic	Board to Board Cable	Male Pin	Header	3 A	Through Hole	Unshrouded	0.66 in	16.76 mm	UL94 V-0	Gold	Press-Fit Solder	0.1 "	2.54 mm	0.09 in	2.29 mm	6.35 mm	0.25 in	All	0.32 in	8.13 mm	Square	0.76 Ám	30 Áin	18
TE Connectivity AMP Connectors 3-102898-7	2.54 µm	100 µin	Push-Pull	Copper Alloy	Black	Tin-Lead	1	-55 C	125 °C	Thermoplastic	Board to Board Cable	Male Pin	Header	3 A	Through Hole	Unshrouded	0.66 in	16.76 mm	UL94 V-0	Gold	Press-Fit Solder	0.1 "	2.54 mm	0.09 in	2.29 mm	6.35 mm	0.25 in	All	0.32 in	8.13 mm	Square	0.76 Ám	30 Áin	6

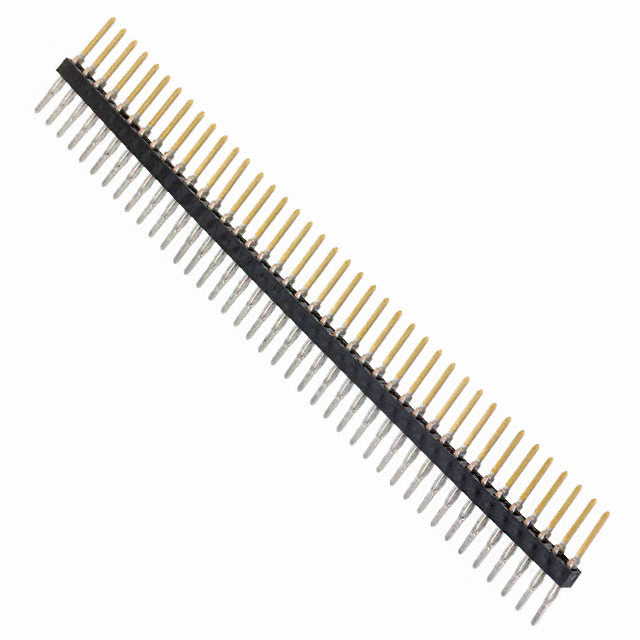

TE Connectivity AMP Connectors 3-102898-3	2.54 µm	100 µin	Push-Pull	Copper Alloy	Black	Tin-Lead	1	-55 C	125 °C	Thermoplastic	Board to Board Cable	Male Pin	Header	3 A	Through Hole	Unshrouded	0.66 in	16.76 mm	UL94 V-0	Gold	Press-Fit Solder	0.1 "	2.54 mm	0.09 in	2.29 mm	6.35 mm	0.25 in	All	0.32 in	8.13 mm	Square	0.76 Ám	30 Áin	40
TE Connectivity AMP Connectors 1-102898-3	2.54 µm	100 µin	Push-Pull	Copper Alloy	Black	Tin-Lead	1	-55 C	125 °C	Thermoplastic	Board to Board Cable	Male Pin	Header	3 A	Through Hole	Unshrouded	0.66 in	16.76 mm	UL94 V-0	Gold	Press-Fit Solder	0.1 "	2.54 mm	0.09 in	2.29 mm	6.35 mm	0.25 in	All	0.32 in	8.13 mm	Square	0.76 Ám	30 Áin	20
TE Connectivity AMP Connectors 102898-3	2.54 µm	100 µin	Push-Pull	Copper Alloy	Black	Tin-Lead	1	-55 C	125 °C	Thermoplastic	Board to Board Cable	Male Pin	Header	3 A	Through Hole	Unshrouded	0.66 in	16.76 mm	UL94 V-0	Gold	Press-Fit Solder	0.1 "	2.54 mm	0.09 in	2.29 mm	6.35 mm	0.25 in	All	0.32 in	8.13 mm	Square	0.76 Ám	30 Áin	10
TE Connectivity AMP Connectors 5-102898-1	2.54 µm	100 µin	Push-Pull	Copper Alloy	Black	Tin	1	-55 C	125 °C	Thermoplastic	Board to Board Cable	Male Pin	Header	3 A	Through Hole	Unshrouded	0.66 in	16.76 mm	UL94 V-0	Gold	Press-Fit Solder	0.1 "	2.54 mm	0.09 in	2.29 mm	6.35 mm	0.25 in	All	0.32 in	8.13 mm	Square	0.76 Ám	30 Áin	8
TE Connectivity AMP Connectors 8-102898-3	2.54 µm	100 µin	Push-Pull	Copper Alloy	Black	Tin	1	-55 C	125 °C	Thermoplastic	Board to Board Cable	Male Pin	Header	3 A	Through Hole	Unshrouded	0.66 in	16.76 mm	UL94 V-0	Gold	Press-Fit Solder	0.1 "	2.54 mm	0.09 in	2.29 mm	6.35 mm	0.25 in	All	0.32 in	8.13 mm	Square	0.76 Ám	30 Áin	40
TE Connectivity AMP Connectors 6-102898-1	2.54 µm	100 µin	Push-Pull	Copper Alloy	Black	Tin	1	-55 C	125 °C	Thermoplastic	Board to Board Cable	Male Pin	Header	3 A	Through Hole	Unshrouded	0.66 in	16.76 mm	UL94 V-0	Gold	Press-Fit Solder	0.1 "	2.54 mm	0.09 in	2.29 mm	6.35 mm	0.25 in	All	0.32 in	8.13 mm	Square	0.76 Ám	30 Áin	18
