2236454 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

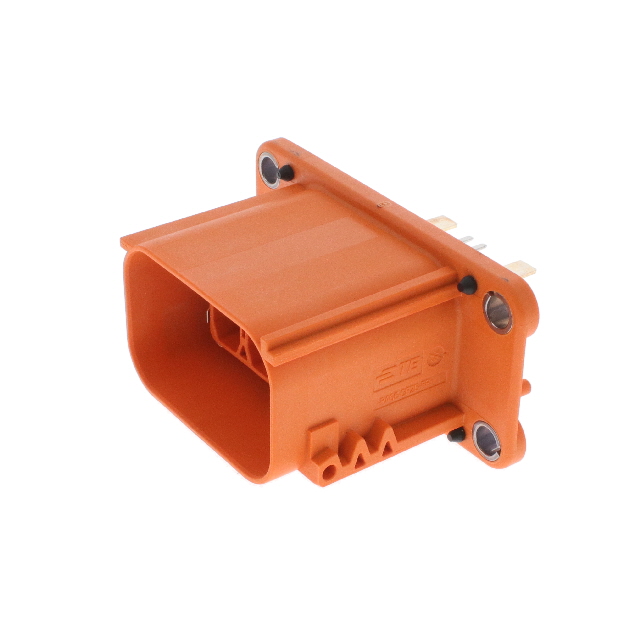

CONN HEADER VERT 7POS
| Part | Contact Type | Features | Shrouding | Insulation Color | Contact Finish - Post | Termination | Insulation Material | Number of Positions | Insulation Height | Insulation Height | Number of Rows | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Style | Mounting Type | Contact Finish - Mating | Fastening Type | Number of Positions Loaded | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Male Blade Male Pin | Board Guide Mounting Flange | Shrouded - 4 Wall | Orange | Silver | Solder | Polyamide (PA66) Nylon 6/6 Glass Filled | 7 | 45.6 mm | 1.795 in | 2 | Header | 140 °C | -40 °C | Board to Cable/Wire | Panel Mount Through Hole | Silver | Latch Holder | All | Copper Zinc |
