Surge Suppressors TTC-6P-2X1-M-24DC-PT TT
Surge Suppressors TTC-6P-2X1-M-24DC-PT TT
| Part | Type | Mounting Type | Features | Voltage - Protection Level (VP) (2416) | Approval Agency | Voltage - Continuous Operating (Max) (MCOV) [Max] | Form | Operating Temperature [Max] | Operating Temperature [Min] | Number of Poles | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) [Max] | Current - Max [Max] | Region Utilized | Housing Material | Overload Protection | Voltage - Input | Voltage - Continuous Operating (Max) (MCOV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

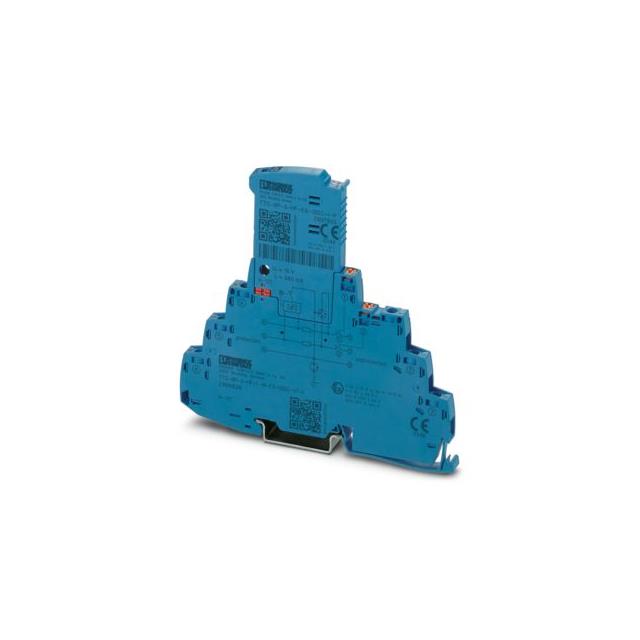

 Phoenix Contact | Surge Protection Module | DIN Rail | Remote Signaling Contacts Visual Life Indicator | 750 V | CE CSA CSAus DNV GL UL | 10 VAC 15 VDC | Base + Module | 85 °C | -40 C | 1 | 5 kA | 10 kA | ||||||

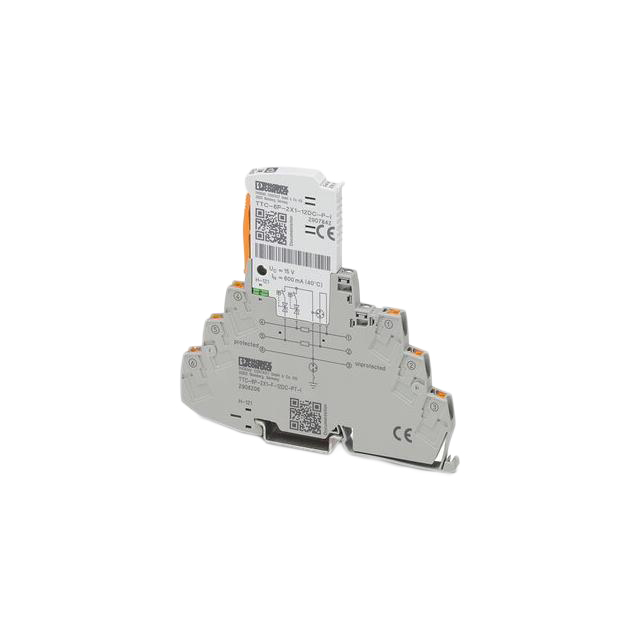

 Phoenix Contact | PDU Surge Protector Surge Protection Module | DIN Rail | Remote Signaling Contacts Visual Life Indicator | 1.2 kV | ATEX cCSAus CE CSA CSAus cUL DNV GL EX IECEx UKCA UL | 15 VDC | Base + Module | 70 °C | -40 C | 1 | 5 kA | 10 kA | 400 mA | International | Plastic | Fuse Holder | 15 V | |
 Phoenix Contact | Surge Protection Module | DIN Rail | Remote Signaling Contacts Visual Life Indicator | 1.45 kV | CE CSA CSAus DNV GL UL | 21 VAC 30 VDC | Base + Module | 85 °C | -40 C | 1 | 500 A | 5 kA | ||||||

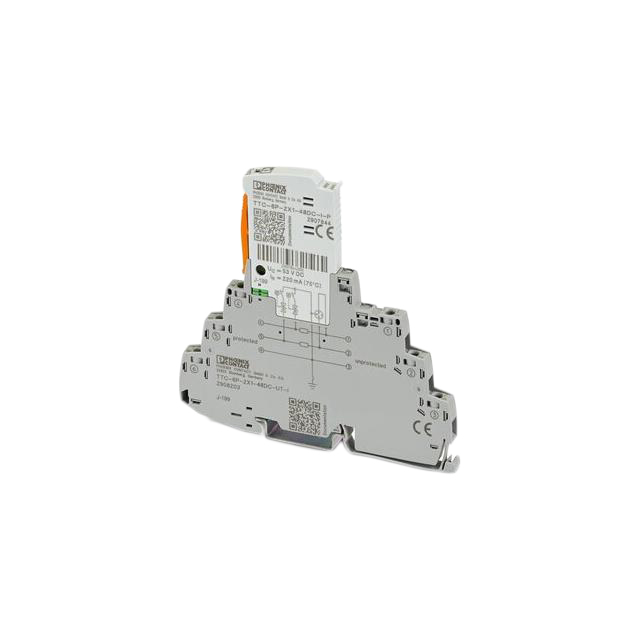

 Phoenix Contact | DIN Rail | 150 V | cCSAus CSA CSAus UL | Base + Module | 85 °C | -40 C | 1 | 5 kA | 10 kA | 30 VAC 53 VDC | ||||||||

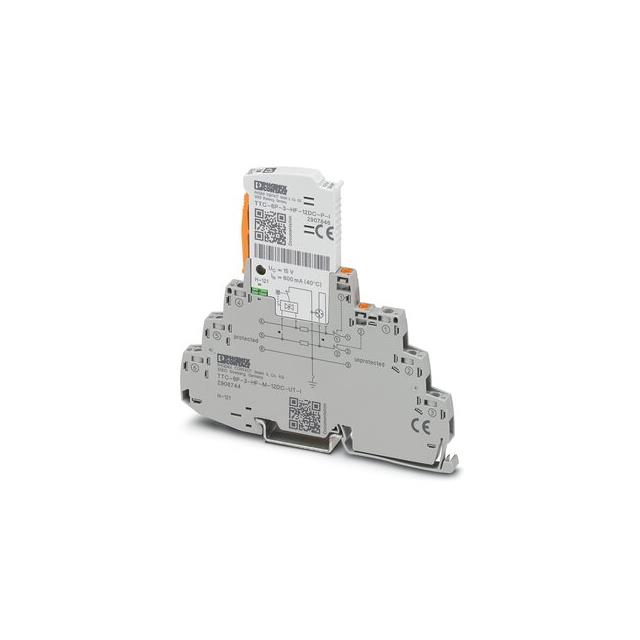

 Phoenix Contact | PDU Surge Protector Surge Protection Module | DIN Rail | Remote Signaling Contacts Visual Life Indicator | 260 V | ATEX cCSAus CE CSA CSAus DNV GL EX IECEx UKCA UL | 10 VAC 15 VDC | Base + Module | 70 °C | -40 C | 1 | 5 kA | 10 kA | 600 mA | International | Plastic | Fuse Holder | 15 V | |
 Phoenix Contact | PDU Surge Protector Surge Protection Module | DIN Rail | Remote Signaling Contacts Visual Life Indicator | 1.3 kV | cCSAus CE CSA CSAus DNV GL UL | 10 VAC 15 VDC | Base + Module | 85 °C | -40 C | 1 | 5 kA | 10 kA | International | Plastic | Fuse Holder | |||
 Phoenix Contact | PDU Surge Protector Surge Protection Module | DIN Rail | Remote Signaling Contacts Visual Life Indicator | 190 V | cCSAus CE CSA CSAus DNV GL UL | 21 VAC 30 VDC | Base + Module | 85 °C | -40 C | 1 | 5 kA | 10 kA | International | Plastic | Fuse Holder |
