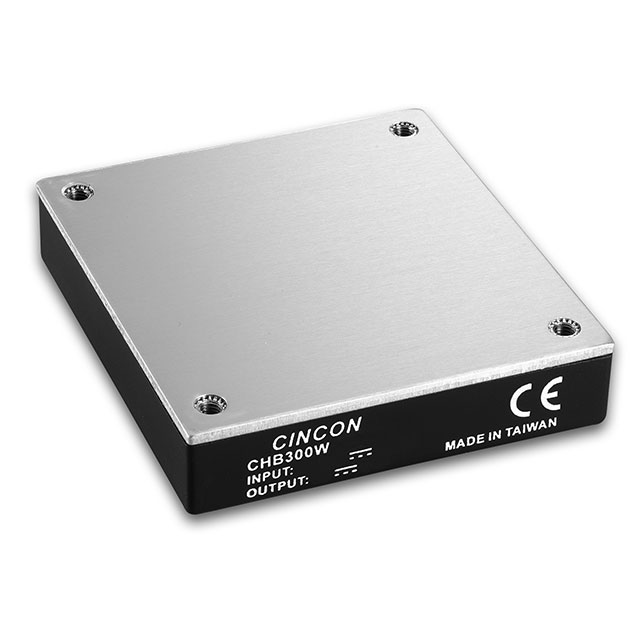

CHB300 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

DC DC CONVERTER 12V 300W

Part	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Features	Applications	Voltage - Input (Max) [Max]	Control Features	Voltage - Input (Min) [Min]	Efficiency	Current - Output (Max) [Max]	Voltage - Isolation	Voltage - Output 1	Standard Number	Supplier Device Package	Number of Outputs	Mounting Type	Package / Case	Type

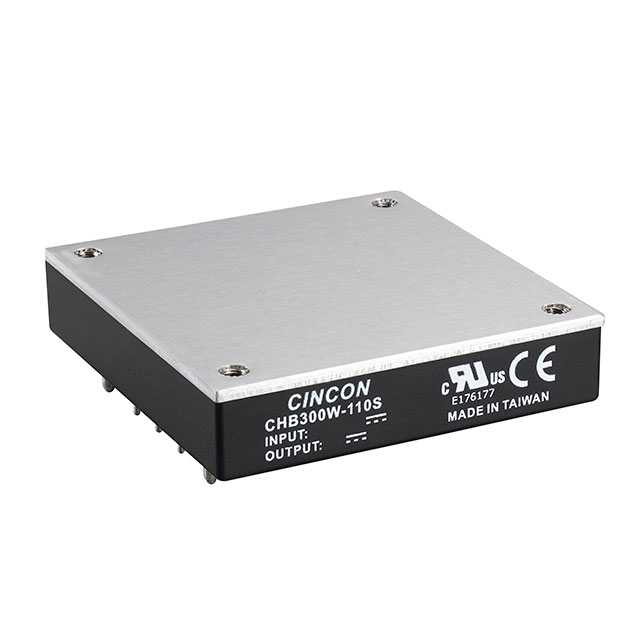

Cincon Electronics Co. LTD CHB300W-110S12	CB CE cURus	-40 °C	100 °C	300 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial) Railway	160 V	Active High Enable	43 V	90 %	25 A	3000 V	12 V	50155 60950-1 62368-1	Half Brick	1	Through Hole	Half Brick	Isolated Module
Cincon Electronics Co. LTD CHB300W-48S24	CE cURus	-40 °C	100 °C	300 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	75 V	Active High Enable	18 V	89 %	12.5 A	1.5 kV	24 V	60950-1		1	Through Hole	Half Brick	Isolated Module
Cincon Electronics Co. LTD CHB300W-48S28	CE cURus	-40 °C	100 °C	300 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	75 V	Active High Enable	18 V		10.7 A	1.5 kV	28 V	60950-1		1	Through Hole	Half Brick	Isolated Module
Cincon Electronics Co. LTD CHB300W-48S05	CE cURus	-40 °C	100 °C	300 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	75 V	Active High Enable	18 V	90 %	60 A	1.5 kV	5 V	60950-1		1	Through Hole	Half Brick	Isolated Module

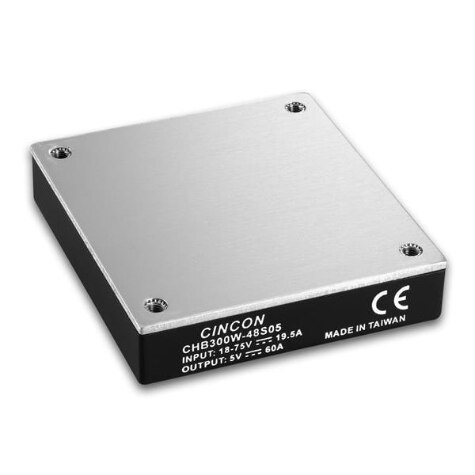

Cincon Electronics Co. LTD CHB300W-48S15N	CE cURus	-40 °C	100 °C	300 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	75 V	Active Low Enable	18 V	92 %	20 A	1.5 kV	15 V	60950-1		1	Through Hole	Half Brick	Isolated Module
Cincon Electronics Co. LTD CHB300W-24S05	CE cURus	-40 °C	100 °C	300 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	36 V	Active High Enable	9 V	88.5 %	60 A	1.5 kV	5 V	60950-1		1	Through Hole	Half Brick	Isolated Module
Cincon Electronics Co. LTD CHB300W-24S48N	CE cURus	-40 °C	100 °C	300 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	36 V	Active Low Enable	9 V	88 %	6.25 A	1.5 kV	48 V	60950-1		1	Through Hole	Half Brick	Isolated Module
Cincon Electronics Co. LTD CHB300W-48S28N	CE cURus	-40 °C	100 °C	300 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	75 V	Active Low Enable	18 V		10.7 A	1.5 kV	28 V	60950-1		1	Through Hole	Half Brick	Isolated Module
Cincon Electronics Co. LTD CHB300W-24S15N	CE cURus	-40 °C	100 °C	300 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	36 V	Active Low Enable	9 V	91 %	20 A	1.5 kV	15 V	60950-1		1	Through Hole	Half Brick	Isolated Module
Cincon Electronics Co. LTD CHB300W-48S24N	CE cURus	-40 °C	100 °C	300 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	75 V	Active Low Enable	18 V	89 %	12.5 A	1.5 kV	24 V	60950-1		1	Through Hole	Half Brick	Isolated Module
