THS422 Series

Catalog

IC VOLTAGE FEEDBACK 1 CIRC 8SOIC

Part	Number of Circuits	Supplier Device Package	Voltage - Input Offset	Voltage - Supply Span (Max) [Max]	Voltage - Supply Span (Min) [Min]	Package / Case	Package / Case [y]	Package / Case [x]	Mounting Type	Current - Input Bias	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply	Slew Rate	-3db Bandwidth	Gain Bandwidth Product	Output Type	Amplifier Type	Package / Case [custom]	Package / Case	Current - Output / Channel	Supplied Contents	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Utilized IC / Part	Channels per IC	Current - Supply (Main IC)	Board Type	Package / Case
Texas Instruments THS4225DRG4	1	8-SOIC	3 mV	15 V	2.7 V	8-SOIC	3.9 mm	0.154 in	Surface Mount	900 nA	85 °C	-40 °C	14 mA	990 V/µs	230 MHz	120 MHz	Rail-to-Rail	Voltage Feedback
Texas Instruments THS4222DGKR	2		3 mV	15 V	2.7 V	8-MSOP 8-TSSOP			Surface Mount	900 nA	85 °C	-40 °C	14 mA	990 V/µs	230 MHz	120 MHz	Rail-to-Rail	Voltage Feedback	0.118 in	3 mm	100 mA
Texas Instruments THS4222DRG4	2	8-SOIC	3 mV	15 V	2.7 V	8-SOIC	3.9 mm	0.154 in	Surface Mount	900 nA	85 °C	-40 °C	14 mA	990 V/µs	230 MHz	120 MHz	Rail-to-Rail	Voltage Feedback			100 mA
Texas Instruments THS4221DR	1	8-SOIC	3 mV	15 V	2.7 V	8-SOIC	3.9 mm	0.154 in	Surface Mount	900 nA	85 °C	-40 °C	14 mA	990 V/µs	230 MHz	120 MHz	Rail-to-Rail	Voltage Feedback
Texas Instruments THS4225DR	1	8-SOIC	3 mV	15 V	2.7 V	8-SOIC	3.9 mm	0.154 in	Surface Mount	900 nA	85 °C	-40 °C	14 mA	990 V/µs	230 MHz	120 MHz	Rail-to-Rail	Voltage Feedback
Texas Instruments THS4221DGNR	1	8-HVSSOP	3 mV	15 V	2.7 V	8-MSOP 8-TSSOP Exposed Pad			Surface Mount	900 nA	85 °C	-40 °C	14 mA	990 V/µs	230 MHz	120 MHz	Rail-to-Rail	Voltage Feedback	0.118 in 3 mm

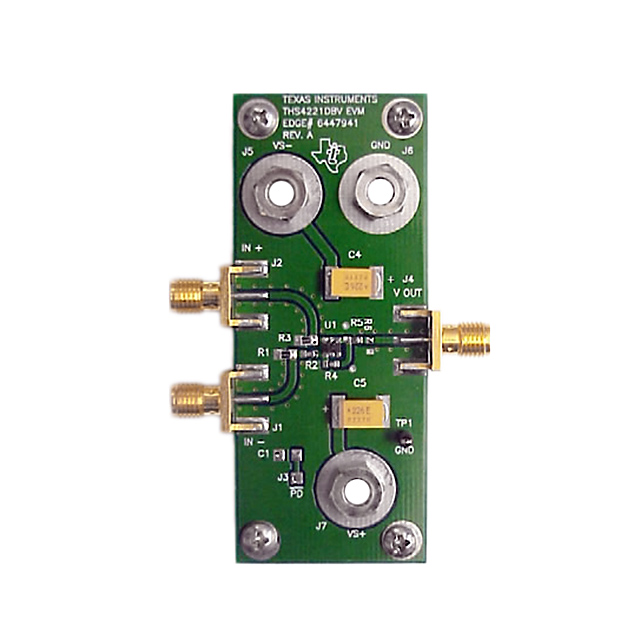

Texas Instruments THS4221EVM														990 V/µs	230 MHz		Rail-to-Rail Single-Ended	Voltage Feedback			100 mA	Board(s)	-1.35 V 2.7 V	7.5 V 15 V	THS4221	1 - Single	14 mA	Fully Populated
Texas Instruments THS4225DGKRG4	1		3 mV	15 V	2.7 V	8-MSOP 8-TSSOP			Surface Mount	900 nA	85 °C	-40 °C	14 mA	990 V/µs	230 MHz	120 MHz	Rail-to-Rail	Voltage Feedback	0.118 in	3 mm
Texas Instruments THS4226DGQR	2	10-HVSSOP	3 mV	15 V	2.7 V	10-MSOP 10-PowerTFSOP			Surface Mount	900 nA	85 °C	-40 °C	14 mA	990 V/µs	230 MHz	120 MHz	Rail-to-Rail	Voltage Feedback			100 mA								0.118 in 3 mm
Texas Instruments THS4222DGKRG4	2		3 mV	15 V	2.7 V	8-MSOP 8-TSSOP			Surface Mount	900 nA	85 °C	-40 °C	14 mA	990 V/µs	230 MHz	120 MHz	Rail-to-Rail	Voltage Feedback	0.118 in	3 mm	100 mA
