MTSMC-EV Series

Catalog

RF TXRX MOD CELL U.FL TH

Part	Current - Transmitting	Current - Receiving	Operating Temperature [Max]	Operating Temperature [Min]	Antenna Type	Frequency	Package / Case	Modulation	Power - Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Serial Interfaces	Protocol	RF Family/Standard	Data Rate	Sensitivity	Mounting Type

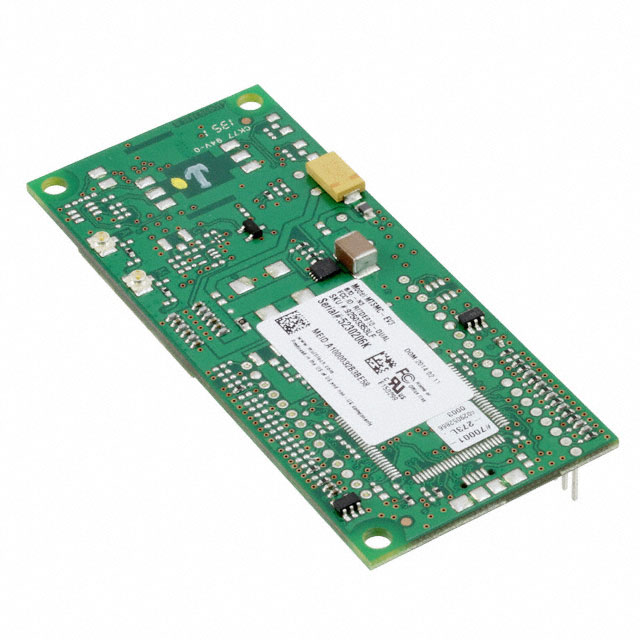

Multi-Tech Systems Inc. MTSMC-EV3-N3-SP	423 mA	423 mA	85 °C	-40 C	Antenna Not Included U.FL	1.9 GHz 800 MHz	Module	GSMK	32 dBm	5 V	3.3 V	UART	EV-DO	Cellular	921.6 kbps	-110 dBm	Through Hole

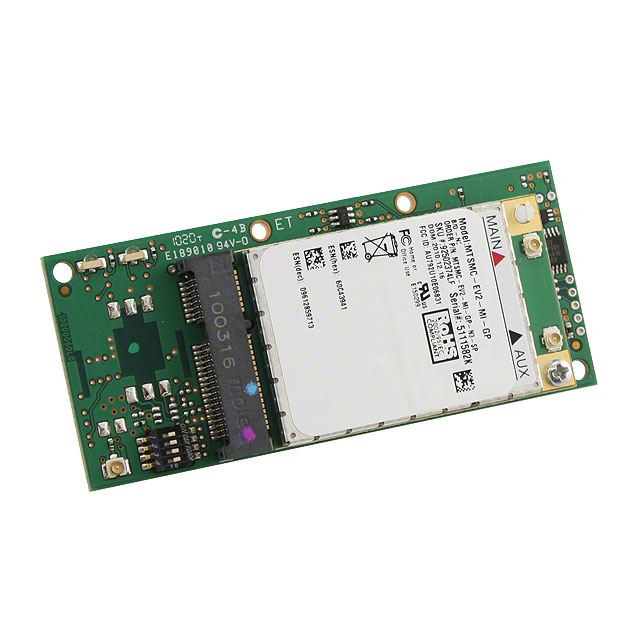

Multi-Tech Systems Inc. MTSMC-EV2-MI-GP-N3-SP	225 mA	225 mA	85 °C	-40 C	Antenna Not Included U.FL	1.9 GHz 800 MHz	Module					UART	EV-DO GPS	Cellular Navigation	921.6 kbps		Through Hole
Multi-Tech Systems Inc. MTSMC-EV3-GP-N16	423 mA	423 mA	85 °C	-40 C	Antenna Not Included U.FL	1.9 GHz 800 MHz	Module		32 dBm	5 V	3.3 V	UART USB	EV-DO GPS	Cellular Navigation	3.1 Mbps	-110 dBm	Through Hole
Multi-Tech Systems Inc. MTSMC-EV3-MI-IP-N16	423 mA	423 mA	85 °C	-40 C	Antenna Not Included U.FL	1.9 GHz 800 MHz	Module		32 dBm	5 V	3.3 V	UART USB	EV-DO	Cellular	3.1 Mbps	-110 dBm	Through Hole
Multi-Tech Systems Inc. MTSMC-EV3-U-N2.R1-SP	423 mA	423 mA	85 °C	-40 C	Antenna Not Included U.FL	1.9 GHz 800 MHz	Module	GSMK	32 dBm	5 V	3.3 V	UART USB	EV-DO	Cellular	921.6 kbps	-110 dBm	Chassis Mount
Multi-Tech Systems Inc. MTSMC-EV3-U-N3	423 mA	423 mA	85 °C	-40 C	Antenna Not Included U.FL	1.9 GHz 800 MHz	Module	GSMK	32 dBm	5 V	3.3 V	UART USB	EV-DO	Cellular	921.6 kbps	-110 dBm	Through Hole

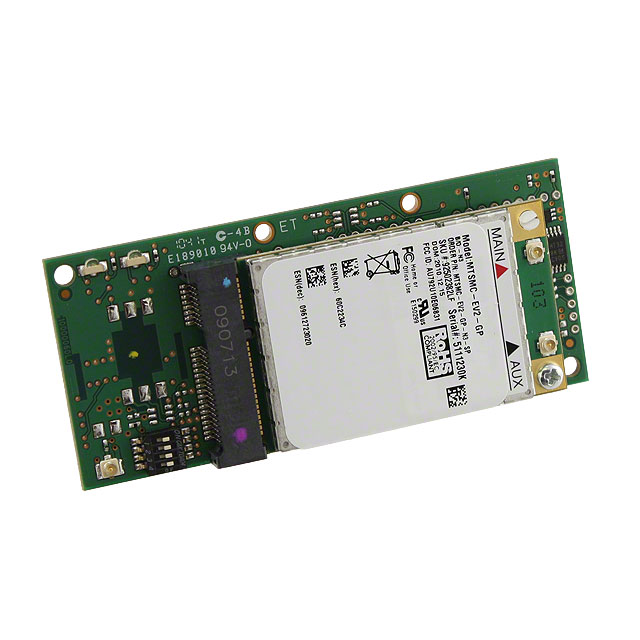

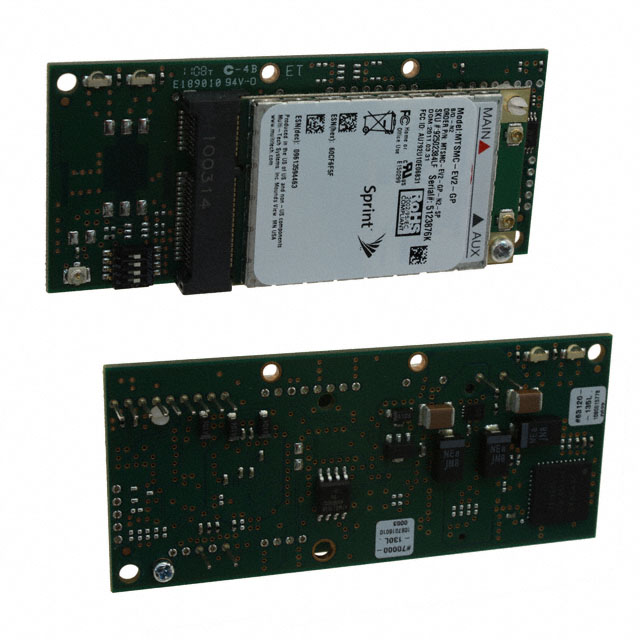

Multi-Tech Systems Inc. MTSMC-EV2-GP-N2-SP	225 mA	225 mA	85 °C	-40 C	Antenna Not Included U.FL	1.9 GHz 800 MHz	Module					UART	EV-DO GPS	Cellular Navigation	921.6 kbps		Through Hole

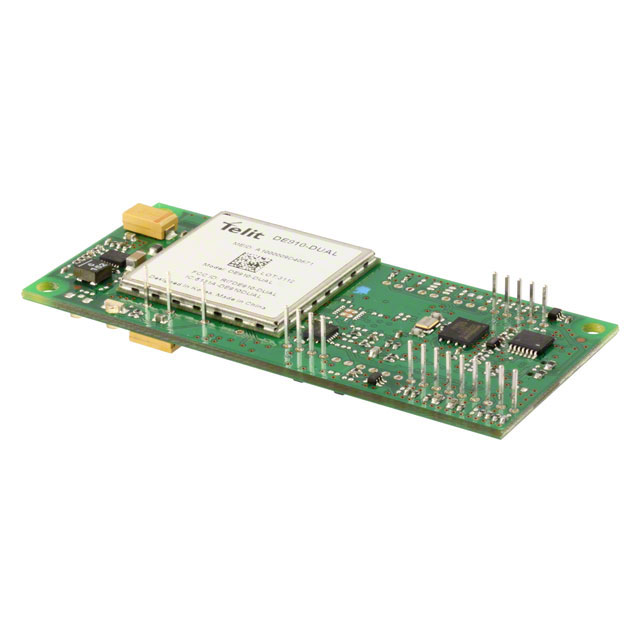

Multi-Tech Systems Inc. MTSMC-EV3-MI-IP-N3-SP	423 mA	423 mA	85 °C	-40 C	Antenna Not Included U.FL	1.9 GHz 800 MHz	Module		32 dBm			UART USB	EV-DO	Cellular	3.1 Mbps	-110 dBm	Through Hole

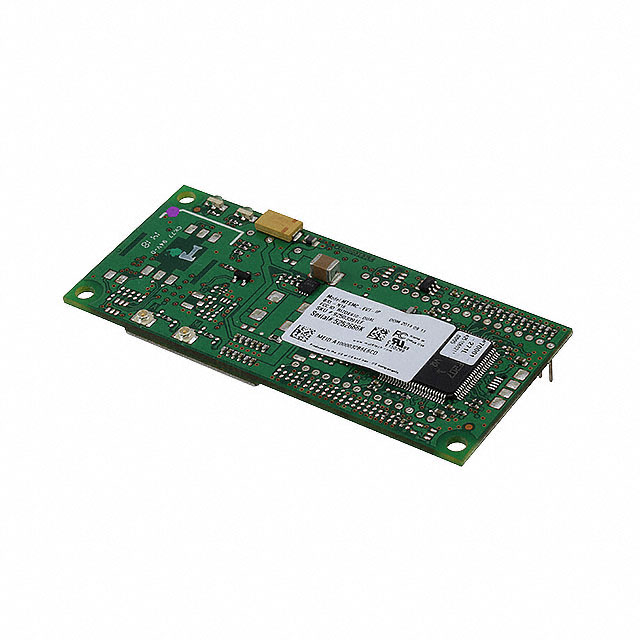

Multi-Tech Systems Inc. MTSMC-EV3-IP-N16-SP	423 mA	423 mA	85 °C	-40 C	Antenna Not Included U.FL	1.9 GHz 800 MHz	Module		32 dBm	5 V	3.3 V	UART USB	EV-DO	Cellular	3.1 Mbps	-110 dBm	Through Hole

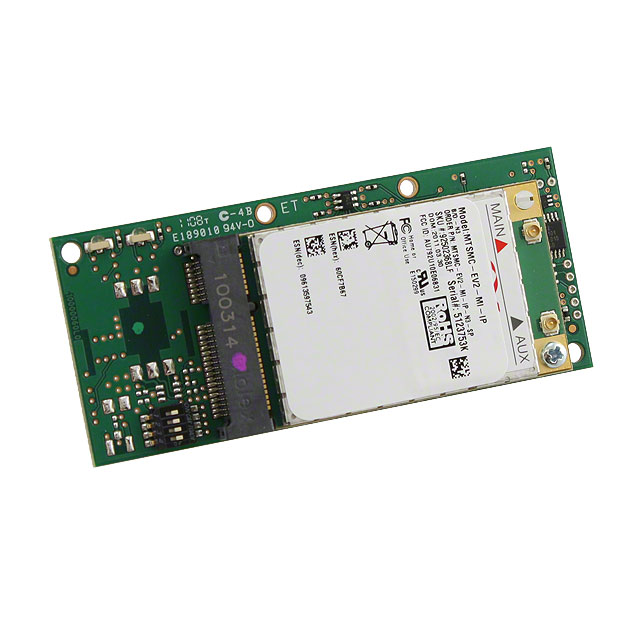

Multi-Tech Systems Inc. MTSMC-EV2-MI-IP-N3-SP	225 mA	225 mA	85 °C	-40 C	Antenna Not Included U.FL	1.9 GHz 800 MHz	Module					UART USB	EV-DO	Cellular	921.6 kbps		Through Hole
