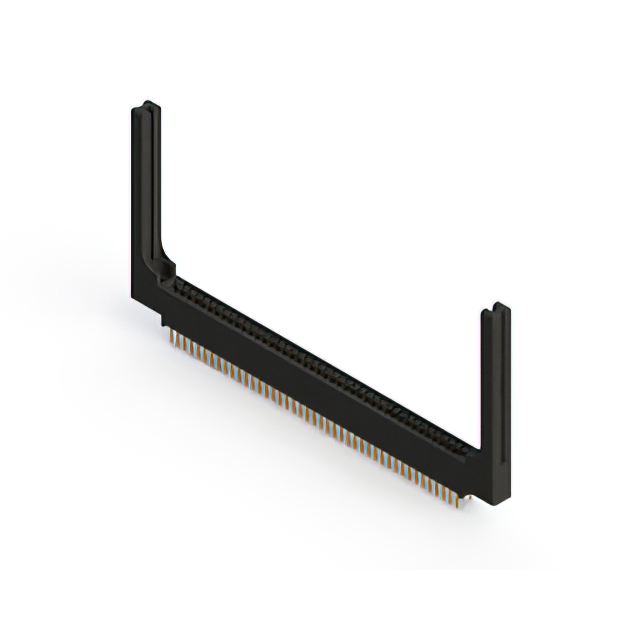

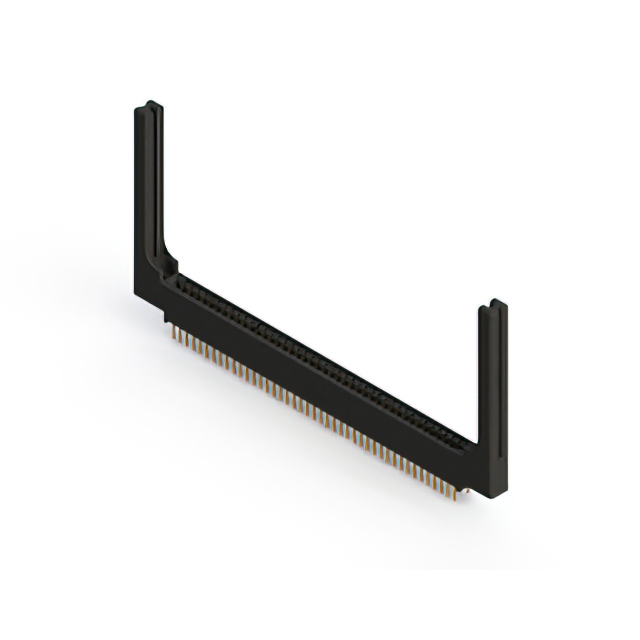

396-086 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
| Part | Material - Insulation | Termination Rows [custom] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Pitch | Pitch | Contact Material | Contact Type | Number of Positions/Bay/Row | Number of Positions | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Gender | Number of Rows [custom] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Card Type | Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Wire Wrap | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Copper Alloy | Cantilever | 43 | 86 | Through Hole | 0.25 Ám | 10 Áin | Dual | Female | 2 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Non Specified - Dual Edge | Black | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Solder | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Copper Alloy | Cantilever | 43 | 86 | Through Hole | 0.25 Ám | 10 Áin | Dual | Female | 2 | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Black | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Solder | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Copper Alloy | Cantilever | 43 | 86 | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | Dual | Female | 2 | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Non Specified - Dual Edge | Black | Card Extender |
 EDAC Inc. | Polyester Thermoplastic | 2 | Solder | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Copper Alloy | Cantilever | 43 | 86 | Through Hole | 0.25 Ám | 10 Áin | Dual | Female | 2 | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Black | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Wire Wrap | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Copper Alloy | Cantilever | 43 | 86 | Through Hole | 0.25 Ám | 10 Áin | Dual | Female | 2 | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Black | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Solder | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Copper Alloy | Cantilever | 43 | 86 | Through Hole | 0.25 Ám | 10 Áin | Dual | Female | 2 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Non Specified - Dual Edge | Black | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Solder | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Copper Alloy | Cantilever | 43 | 86 | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | Dual | Female | 2 | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Black | Card Extender Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Solder | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Copper Alloy | Cantilever | 43 | 86 | Through Hole | 0.25 Ám | 10 Áin | Dual | Female | 2 | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Black | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Solder Wire Wrap | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Copper Alloy | Cantilever | 43 | 86 | Right Angle Through Hole | 0.25 Ám | 10 Áin | Dual | Female | 2 | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Non Specified - Dual Edge | Black | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Solder | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Copper Alloy | Cantilever | 43 | 86 | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | Dual | Female | 2 | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Non Specified - Dual Edge | Black | Card Extender |
