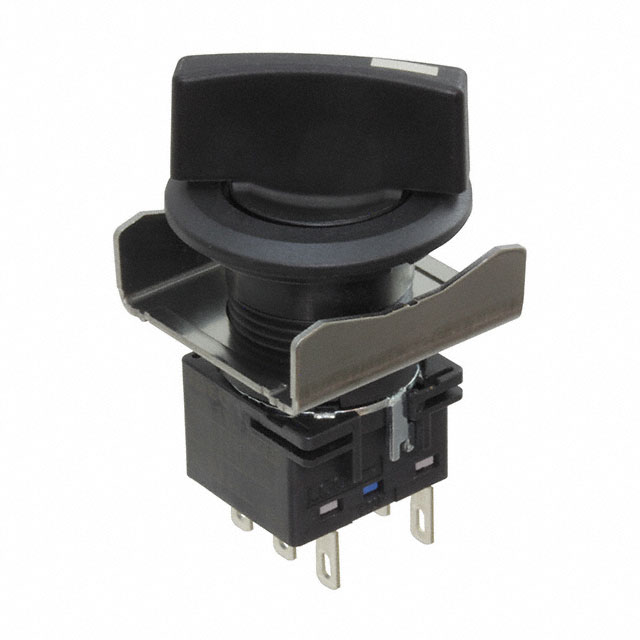

LBW6S Series

Manufacturer: IDEC

Catalog

ROTARY SWITCH, 2 POSITION, 2 POLE, 90 °, 5 A, 250 V, LBW SERIES

Part	Electrical Life	Approval Agency	Mechanical Life	Illumination	Termination Style	Voltage Rating - AC	Type	Circuit	Switch Function	Mounting Type	Ingress Protection	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	(Select First, Then Apply Filters) Compatible Series	Actuator Type	Requires
IDEC LBW6S-2T6	50000 Cycles	CE CSA TUV UL	250000 Cycles	Non-Illuminated	Solder Quick Connect - 0.110" (2.8mm)	125 V	Standard	DPDT	On-On	Panel Mount	IP65 - Dust Tight Water Resistant	22.3 mm	5 A	30 V	-25 °C	60 °C	2
IDEC LBW6S-3T7	50000 Cycles	CE CSA TUV UL	250000 Cycles	Non-Illuminated	Solder Quick Connect - 0.110" (2.8mm)	125 V	Standard	3PDT	On-Off-On	Panel Mount	IP65 - Dust Tight Water Resistant	22.3 mm	5 A	30 V	-25 °C	60 °C
IDEC LBW6S-3T6	50000 Cycles	CE CSA TUV UL	250000 Cycles	Non-Illuminated	Solder Quick Connect - 0.110" (2.8mm)	125 V	Standard	DPDT	On-Off-On	Panel Mount	IP65 - Dust Tight Water Resistant	22.3 mm	5 A	30 V	-25 °C	60 °C
IDEC LBW6S-2Y				Non-Illuminated			Maintained					22.3 mm						IDEC LBW	Selector	Contact Block(s)
IDEC LBW6S-33T2V	50000 Cycles	CE CSA TUV UL	250000 Cycles	Non-Illuminated	PC Pin	125 V	Standard	DPDT	Mom-Off-Mom	Panel Mount	IP65 - Dust Tight Water Resistant	22.3 mm	100 mA	30 V	-25 °C	60 °C
IDEC LBW6S-3T2	50000 Cycles	CE CSA TUV UL	250000 Cycles	Non-Illuminated	Solder Quick Connect - 0.110" (2.8mm)	125 V	Standard	DPDT	On-Off-On	Panel Mount	IP65 - Dust Tight Water Resistant	22.3 mm	100 mA	30 V	-25 °C	60 °C
IDEC LBW6S-2T5	50000 Cycles	CE CSA TUV UL	250000 Cycles	Non-Illuminated	Solder Quick Connect - 0.110" (2.8mm)	125 V	Standard	SPDT	On-On	Panel Mount	IP65 - Dust Tight Water Resistant	22.3 mm	5 A	30 V	-25 °C	60 °C	2
IDEC LBW6S-2T3	50000 Cycles	CE CSA TUV UL	250000 Cycles	Non-Illuminated	Solder Quick Connect - 0.110" (2.8mm)	125 V	Standard	3PDT	On-On	Panel Mount	IP65 - Dust Tight Water Resistant	22.3 mm	100 mA	30 V	-25 °C	60 °C	2
IDEC LBW6S-33T2	50000 Cycles	CE CSA TUV UL	250000 Cycles	Non-Illuminated	Solder Quick Connect - 0.110" (2.8mm)	125 V	Standard	DPDT	Mom-Off-Mom	Panel Mount	IP65 - Dust Tight Water Resistant	22.3 mm	100 mA	30 V	-25 °C	60 °C
IDEC LBW6S-33Y				Non-Illuminated			Momentary					22.3 mm						IDEC LBW	Selector	Contact Block(s)
