054722 Series

Manufacturer: Molex

Catalog

CONN RCPT 22POS SMD GOLD

Part	Mounting Type	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Mated Stacking Heights	Number of Rows	Number of Positions	Contact Finish	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions

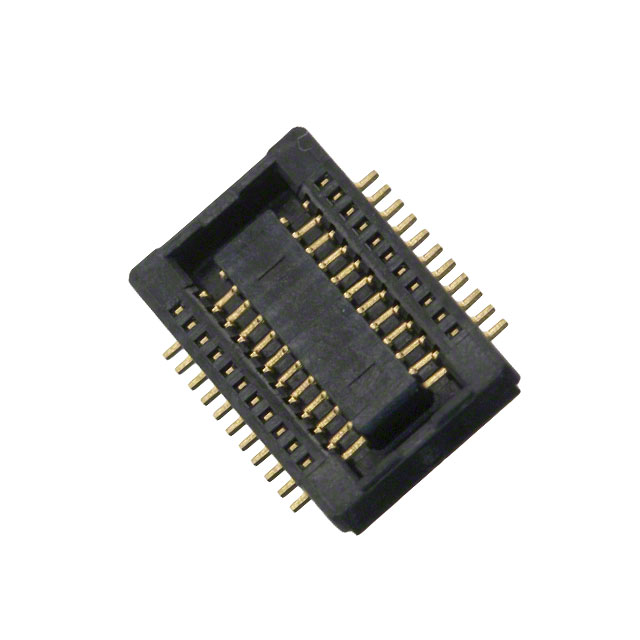

Molex 0547220228	Surface Mount	1.14 mm	0.045 in	0.5 mm	0.02 in	1.5 mm	2	22 positions	Gold	Center Strip Contacts Receptacle	10 Áin	0.25 Ám

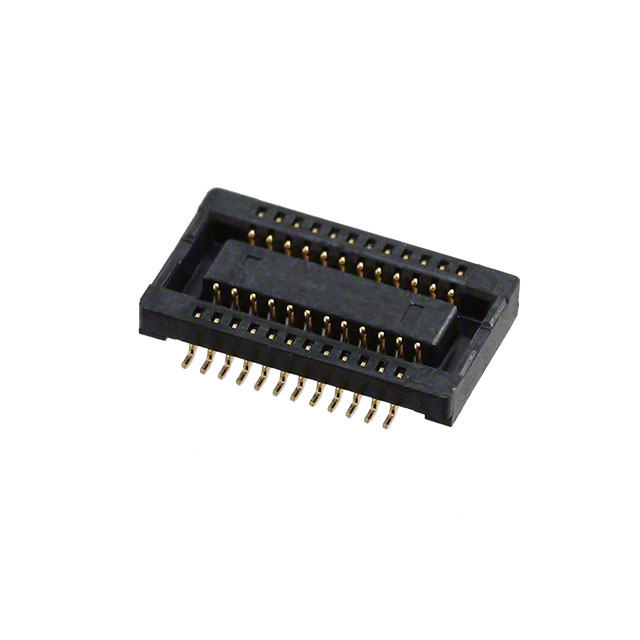

Molex 0547220248	Surface Mount	1.14 mm	0.045 in	0.5 mm	0.02 in	1.5 mm	2	24	Gold	Center Strip Contacts Receptacle	10 Áin	0.25 Ám

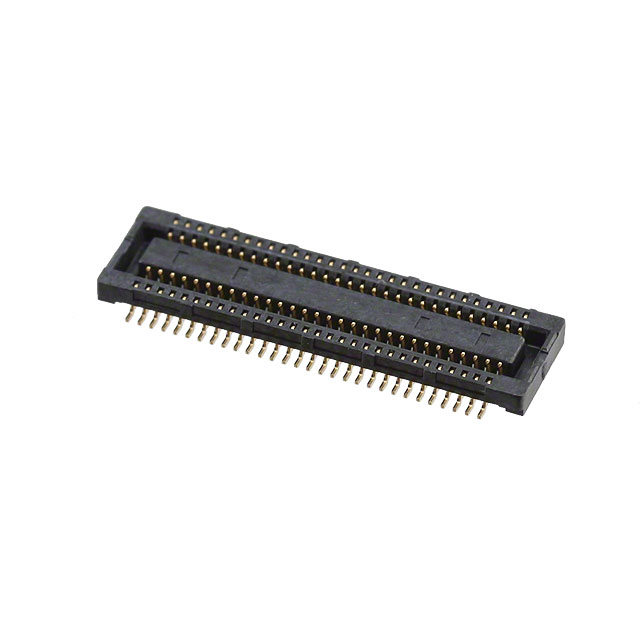

Molex 0547220607	Surface Mount	1.14 mm	0.045 in	0.5 mm	0.02 in	1.5 mm	2	60	Gold	Center Strip Contacts Receptacle	10 Áin	0.25 Ám
Molex 0547220207	Surface Mount	1.14 mm	0.045 in	0.5 mm	0.02 in	1.5 mm	2	20	Gold	Center Strip Contacts Receptacle	10 Áin	0.25 Ám

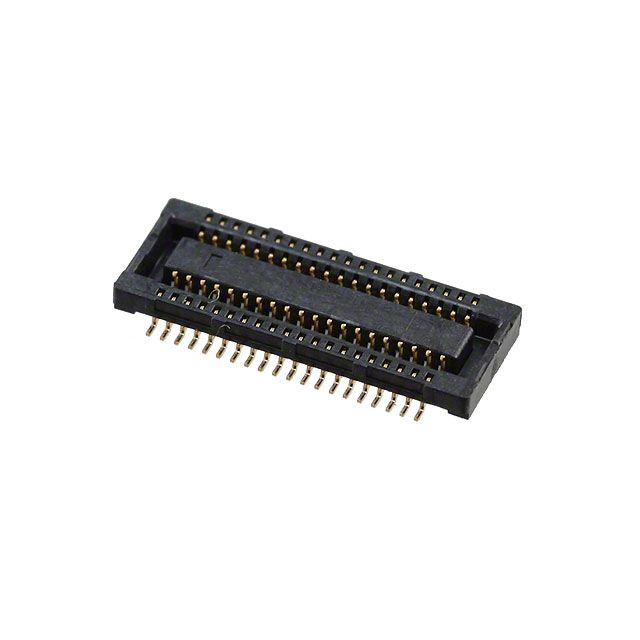

Molex 547220408	Surface Mount	1.14 mm	0.045 in	0.5 mm	0.02 in	1.5 mm	2	40	Gold	Center Strip Contacts Receptacle	10 Áin	0.25 Ám

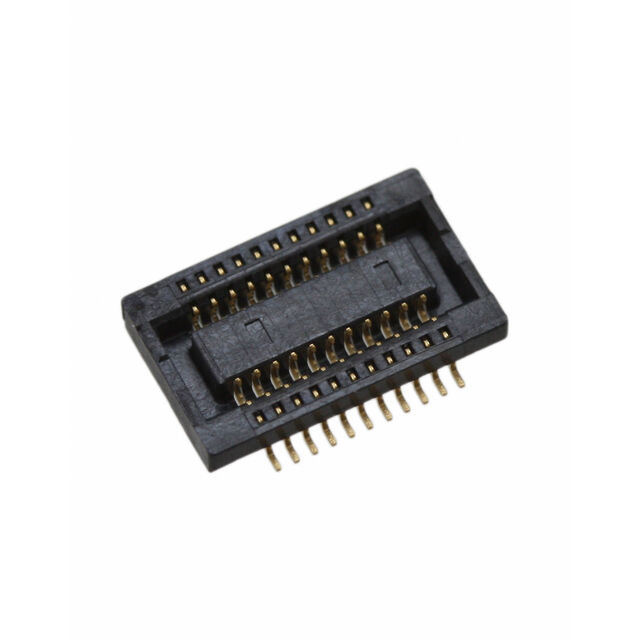

Molex 0547220224	Surface Mount	1.14 mm	0.045 in	0.5 mm	0.02 in	1.5 mm	2	22 positions	Gold	Center Strip Contacts Receptacle	10 Áin	0.25 Ám
Molex 0547220347	Surface Mount	1.14 mm	0.045 in	0.5 mm	0.02 in	1.5 mm	2	34	Gold	Center Strip Contacts Receptacle	10 Áin	0.25 Ám
Molex 0547220168	Surface Mount	1.14 mm	0.045 in	0.5 mm	0.02 in	1.5 mm	2		Gold	Center Strip Contacts Receptacle	10 Áin	0.25 Ám	16
Molex 0547220307	Surface Mount	1.14 mm	0.045 in	0.5 mm	0.02 in	1.5 mm	2	30	Gold	Center Strip Contacts Receptacle	10 Áin	0.25 Ám
Molex 0547220364
