1634223 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

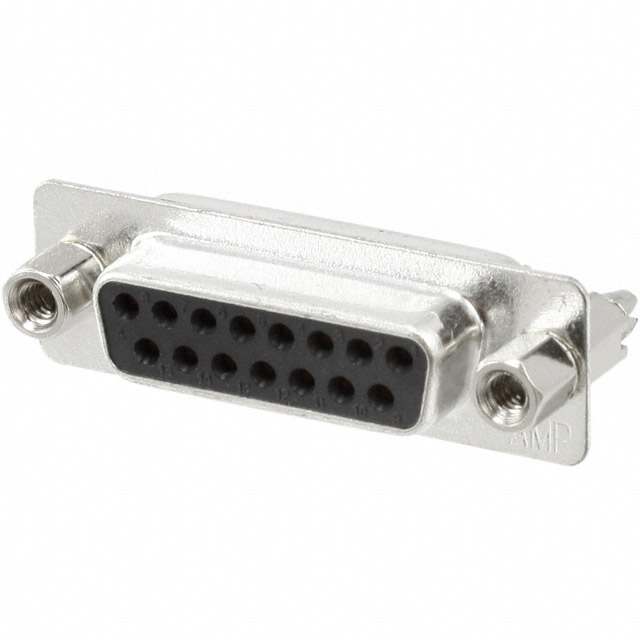

CONN D-SUB RCPT 15POS VERT SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Voltage Rating | Color | Shell Size, Connector Layout | Contact Type | Connector Style | Material Flammability Rating | Number of Positions | Shell Material, Finish | Mounting Type | Termination | Current Rating (Amps) | Contact Finish | Features | Flange Feature | Connector Type | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Thermoplastic | Phosphor Bronze | 250 V | Black | 2 | Signal | D-Sub | UL94 V-0 | 15 | Nickel Plated Steel | Through Hole | Solder | 3 A | Gold | Board Lock | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | 2 | 0.38 µm | 15 µin |
