6TPG Series

Catalog

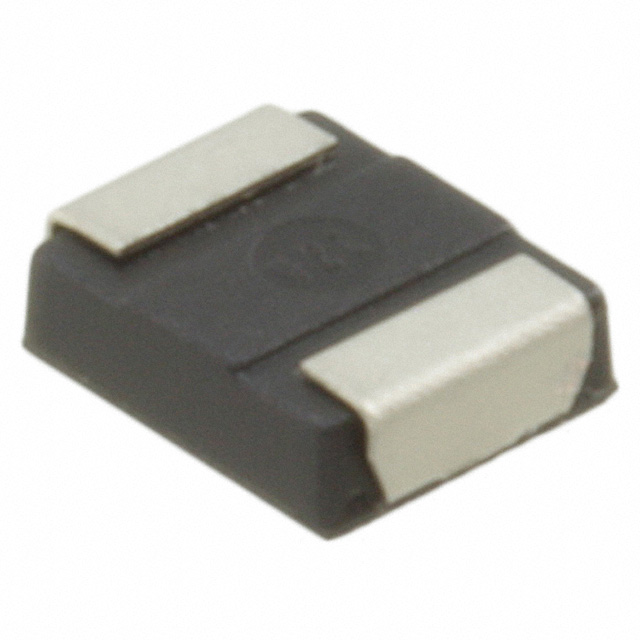

CAP TANT POLY 100UF 6.3V 1411

Part	Lifetime @ Temp.	Package / Case	Package / Case	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	Manufacturer Size Code	Tolerance	ESR (Equivalent Series Resistance)	Voltage - Rated	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max)
Panasonic Electronic Components 6TPG100MZGD	1000 Hrs	3528 Metric	1411	General Purpose	Surface Mount	-55 C	105 ░C	3.5 mm	0.11 "	2.8 mm	0.138 in	Molded	B1G	20 %	35 mOhm	6.3 VDC	100 µF	1.2 mm	0.047 "
Panasonic Electronic Components 6TPG150MZG		3528 Metric	1411	General Purpose	Surface Mount	-55 C	105 ░C	3.5 mm	0.11 "	2.8 mm	0.138 in	Molded	B15G	20 %	35 mOhm	6.3 VDC	150 µF			0.059 "	1.5 mm
Panasonic Electronic Components 6TPG100MG		3528 Metric	1411	General Purpose	Surface Mount	-55 C	105 ░C	3.5 mm	0.11 "	2.8 mm	0.138 in	Molded	B1G	20 %	55 mOhm	6.3 VDC	100 µF	1.2 mm	0.047 "
Panasonic Electronic Components 6TPG220MZG	1000 Hrs	3528 Metric	1411	General Purpose	Surface Mount	-55 C	105 ░C	3.5 mm	0.11 "	2.8 mm	0.138 in	Molded	B15G	20 %	35 mOhm	6.3 VDC	220 µF			0.059 "	1.5 mm
Panasonic Electronic Components 6TPG150M		3528 Metric	1411	General Purpose	Surface Mount	-55 C	105 ░C	3.5 mm	0.11 "	2.8 mm	0.138 in	Molded	B15G	20 %	70 mOhm	6.3 VDC	150 µF			0.059 "	1.5 mm
