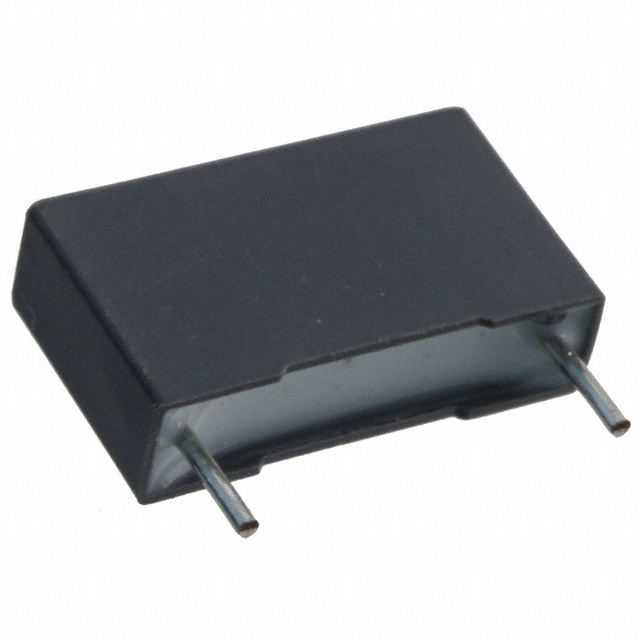

R747I Series

Manufacturer: KEMET

Catalog

CAP FILM 1500PF 5% 2KVDC RADIAL

Part	Voltage Rating - AC	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Applications	Package / Case	Voltage Rating - DC	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Mounting Type	Capacitance	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET R747I1150AA00J	700 V	PC Pins	11 mm	0.433 in	-55 C	105 ░C	Polypropylene (PP) Metallized	DV/DT High Pulse	Radial	2 kV	2 kVDC	0.709 in	5 mm	18 mm	0.197 "	5 %	Through Hole	1500 pF	15 mm	0.591 in

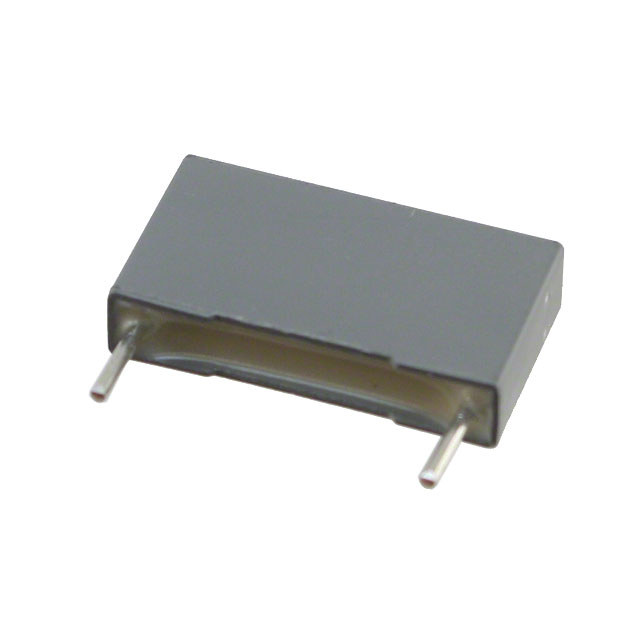

KEMET R747I1150AAH3J	700 V	PC Pins			-55 C	125 °C	Polypropylene (PP) Metallized	DV/DT High Pulse	Radial	2 kV	2 kVDC	0.709 in	5 mm	18 mm	0.197 "	5 %	Through Hole	1500 pF	15 mm	0.591 in	11.1 mm	0.437 in
KEMET R747I1100AA00J	700 V	PC Pins			-55 C	105 ░C	Polypropylene (PP) Metallized	DV/DT High Pulse	Radial	2 kV	2 kVDC	0.709 in	5 mm	18 mm	0.197 "	5 %	Through Hole	0.001 µF	15 mm	0.591 in	11.1 mm	0.437 in
